Home
›
Lexus
›
2005
›
IS 300 SportCross
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
Troubleshooting
›
Problem Symptoms Table
›
Wiper And Washer System
Wiper And Washer System

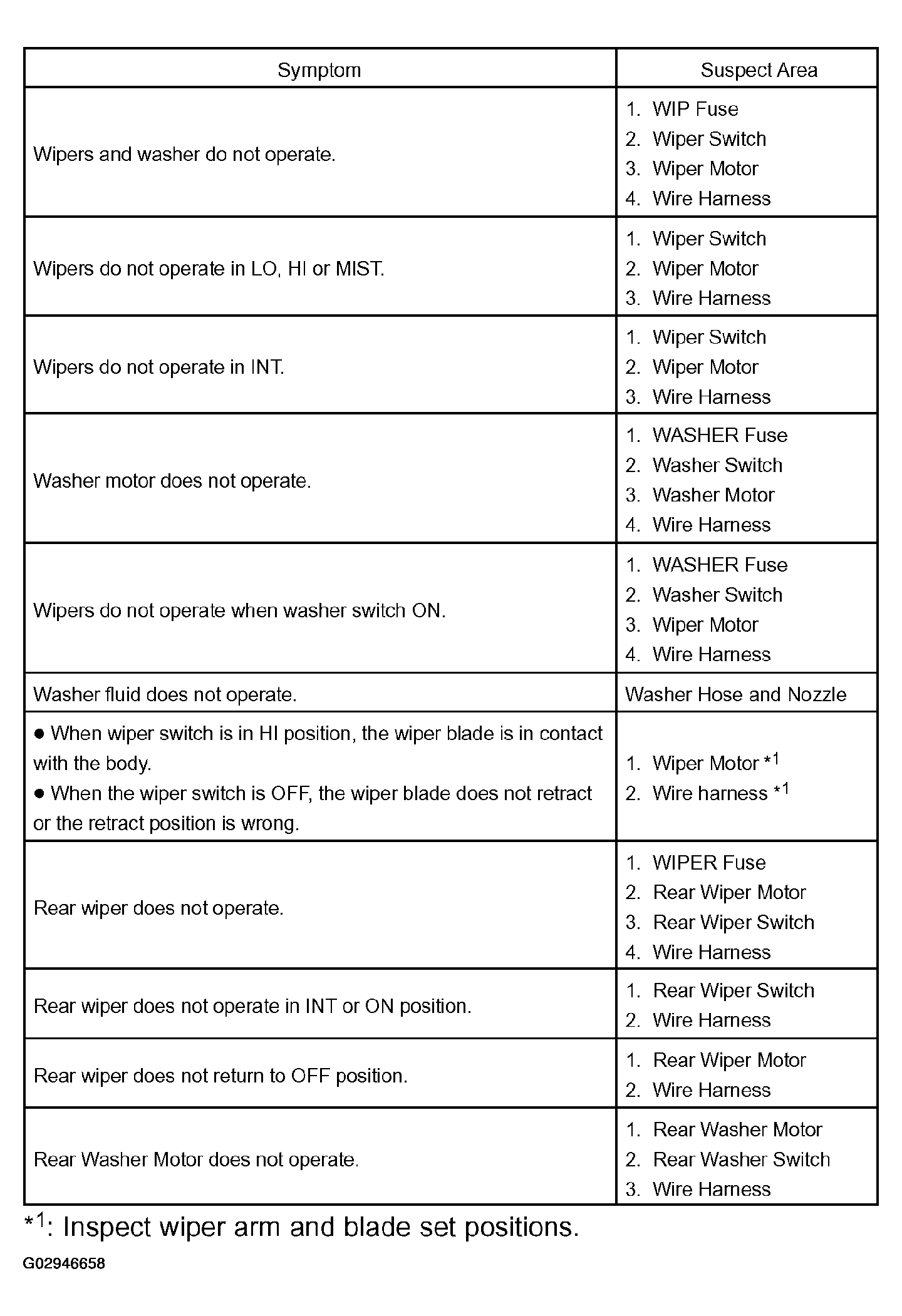

Fig 1: Problem Symptoms Chart - Wiper & Washer System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
