Parts Layout And Schematic Drawing: Drawing

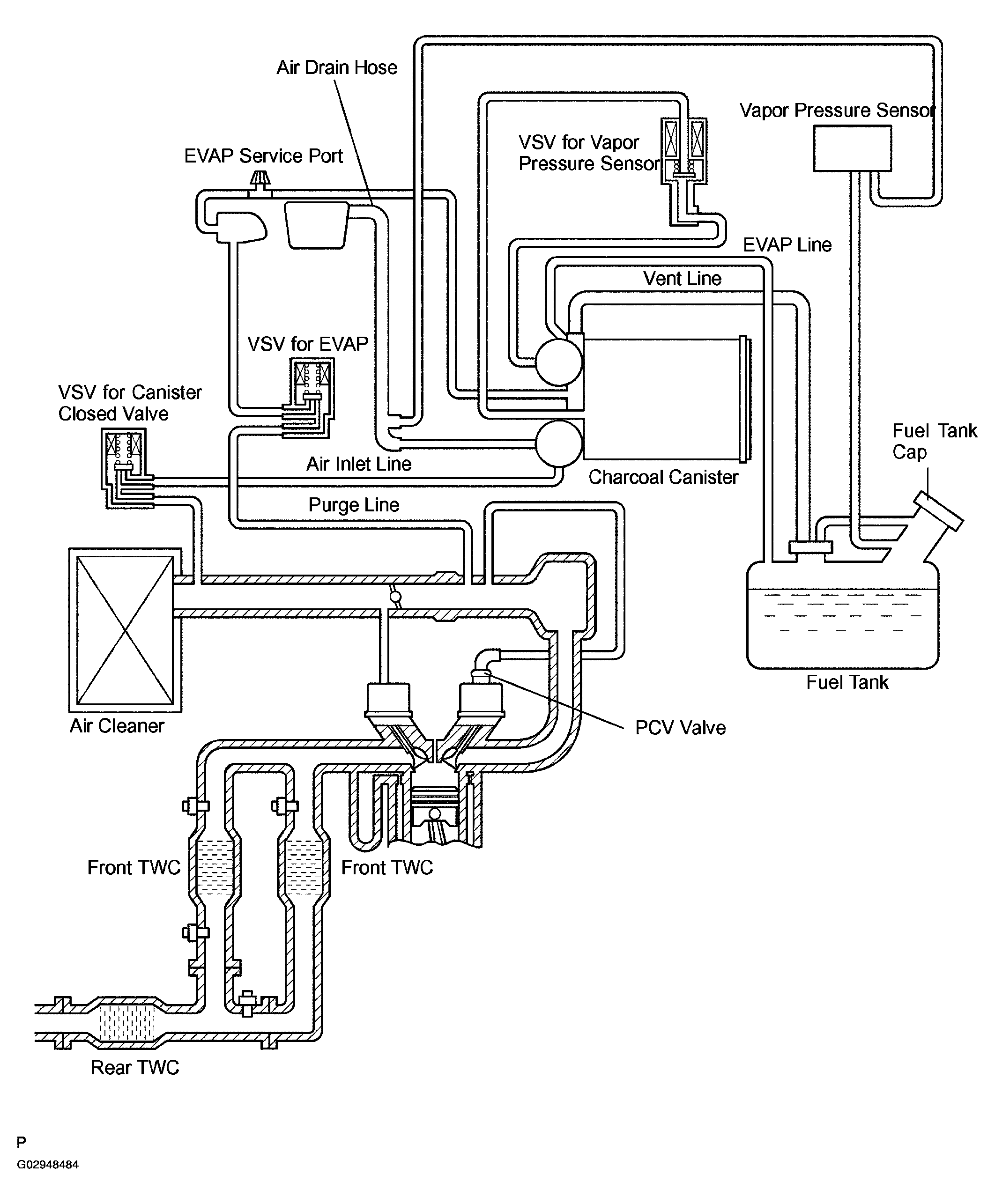

Fig 1: Identifying Emission Control System Drawing

G02948484

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
