Automatic Transmission - Diagnostics
›
How To Proceed With Troubleshooting
How To Proceed With Troubleshooting

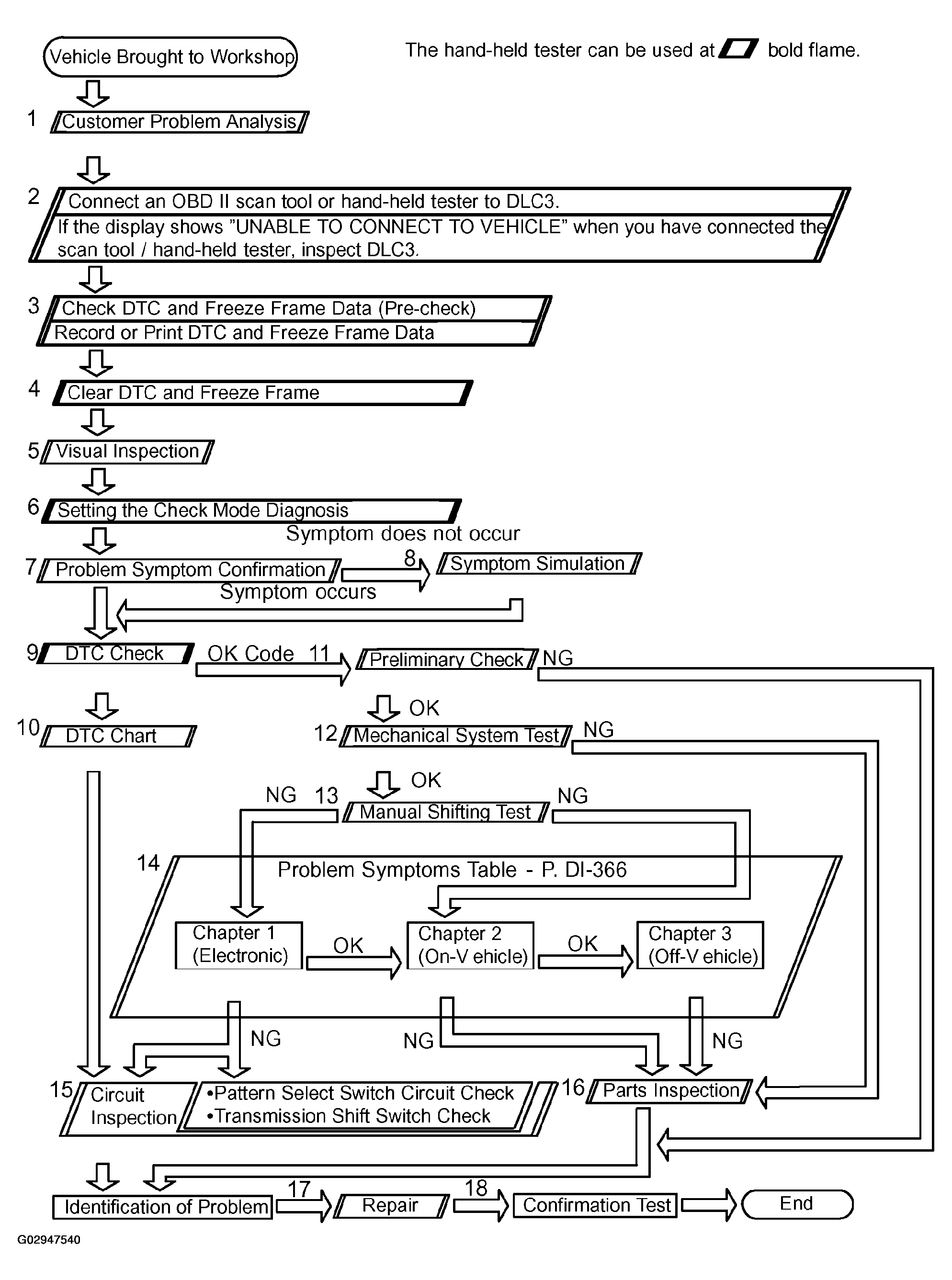

Fig 1: Troubleshooting Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
