Problem Symptoms Table

COMMUNICATION STOP MODE TABLE

Check that there is no open circuit in the CAN main bus line, short between the lines, or short to +B in the "CHECK CAN BUS LINE" (see CHECK CAN BUS LINE ). Select "BUS CHECK" on the hand-held tester via the CAN VIM (see DIAGNOSIS SYSTEM ).
Check the communication stop mode of the ECUs or sensors not displayed among the following: "ENGINE", "ECT", "CRUISE CONTROL", "ABS/VSC/TRAC", "YAW/DECELERAT", "STEERING SENSOR", "BODY/GATEWAY", "BACK GUIDE MONITOR", "PSB" or "AIR SUSPENSION".
NOTE:
- Systems using the CAN communication system differ according to optional settings. Check which ECUs or sensors are installed on the vehicle.
- Non-installed ECUs or sensors are not displayed. Be careful not to consider that they are in communication stop mode.
- If 2 or more ECUs or sensors are not displayed on the hand-held tester via the CAN VIM, perform troubleshooting for communication stop mode for each undisplayed ECU or sensor. (Either side of the CAN bus lines may be open.)

PROBLEM SYMPTOMS

Symptom	Inspection Item	Customization	See Procedure
"ENGINE" and "ECT" are not displayed on the hand-held tester via CAN VIM.	ECM COMMUNICATION STOP MODE	Applicable to all vehicles	ECM COMMUNICATION STOP MODE
"ABS/VSCATRAC" is not displayed on the hand-held tester via CAN VIM.	SKID CONTROL ECU COMMUNICATION STOP MODE	Applicable to all vehicles	SKID CONTROL ECU COMMUNICATION STOP MODE
"STEERING SENSOR" is not displayed on the hand-held tester via CAN VIM.	STEERING SENSOR COMMUNICATION STOP MODE	Applicable to all vehicles	STEERING SENSOR COMMUNICATION STOP MODE
"YAW/DECELERAT" is not displayed on the hand-held tester via CAN VIM.	YAW RATE SENSOR COMMUNICATION STOP MODE	Applicable to all vehicles	YAW RATE SENSOR COMMUNICATION STOP MODE
"CRUISE CONTROL" is not displayed on the hand-held tester via CAN VIM.	DISTANCE CONTROL ECU COMMUNICATION STOP MODE	Applicable only to vehicles with dynamic radar/laser cruise control.	DISTANCE CONTROL ECU COMMUNICATION STOP MODE
"PSB" is not displayed on the hand-held tester via CAN VIM.	SEAT BELT CONTROL ECU COMMUNICATION STOP MODE	Applicable only to vehicles with a Pre-collision safety system.	SEAT BELT CONTROL ECU COMMUNICATION STOP MODE
"AIR SUSPENSION" is not displayed on the hand-held tester via CAN VIM.	SUSPENSION CONTROL ECU COMMUNICATION STOP MODE	Applicable only to vehicles with electronic modulated air suspension.	SUSPENSION CONTROL ECU COMMUNICATION STOP MODE
"BODY/GATEWAY" is not displayed on the hand-held tester via CAN VIM.	GATEWAY ECU COMMUNICATION STOP MODE	Applicable to all vehicles	GATEWAY ECU COMMUNICATION STOP MODE
"BACK GUIDE MONITOR" is not displayed on the hand-held tester via CAN VIM.	TELEVISION CAMERA ECU COMMUNICATION STOP MODE	Applicable only to vehicles with a LEXUS navigation system.	TELEVISION CAMERA ECU COMMUNICATION STOP MODE

DTC COMBINATION TABLE
1. Perform troubleshooting according to the combination of DTCs output.

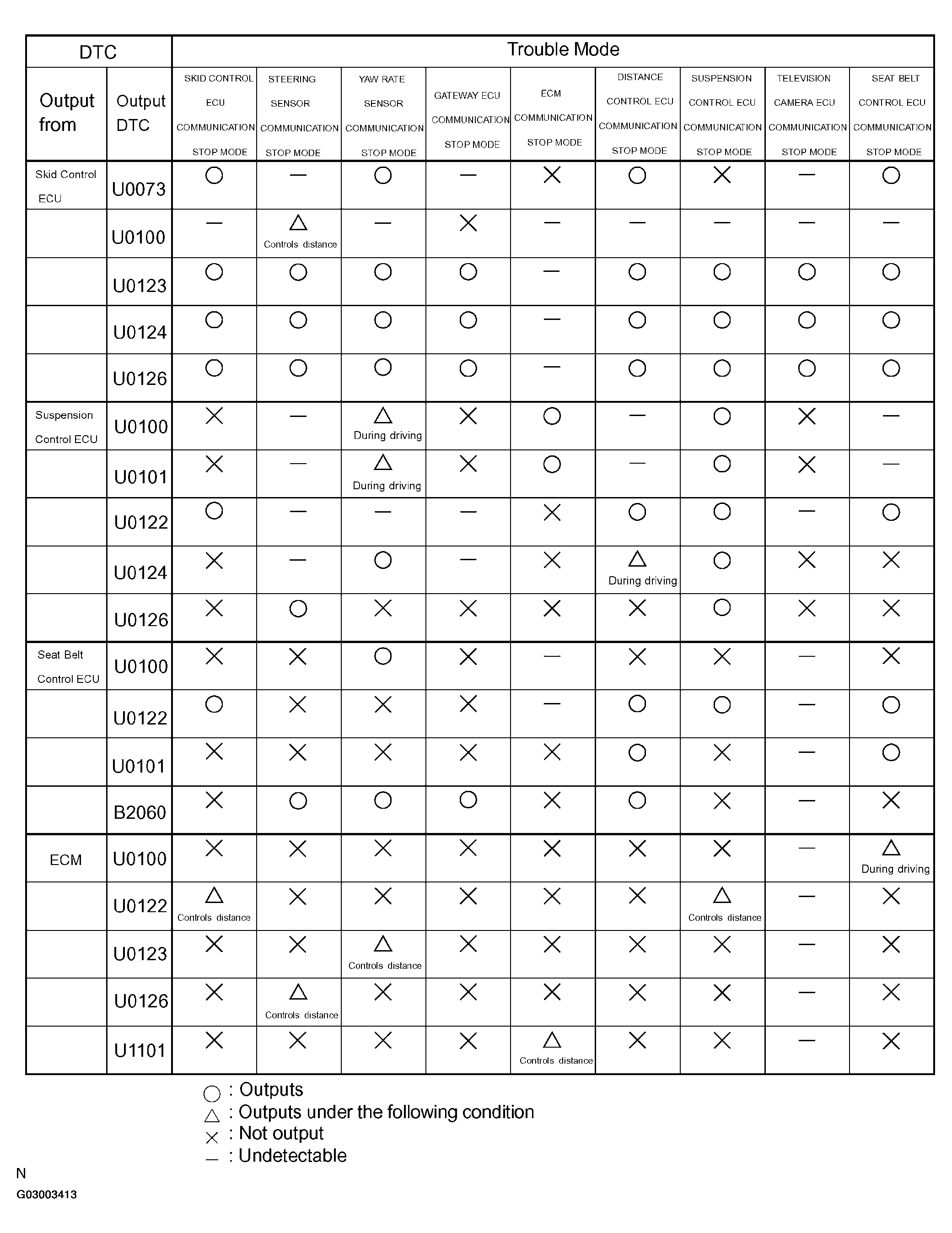

Fig 1: DTC Outputs Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ocirc: Outputs

Delta: Outputs under the following condition

x: Not output

-: Undetectable

HINT:
- see SKID CONTROL ECU COMMUNICATION STOP MODE .
- see STEERING SENSOR COMMUNICATION STOP MODE .
- see YAW RATE SENSOR COMMUNICATION STOP MODE .
- see GATEWAY ECU COMMUNICATION STOP MODE .
- see ECM COMMUNICATION STOP MODE .
- see DISTANCE CONTROL ECU COMMUNICATION STOP MODE .
- see SUSPENSION CONTROL ECU COMMUNICATION STOP MODE .
- see TELEVISION CAMERA ECU COMMUNICATION STOP MODE .
- see SEAT BELT CONTROL ECU COMMUNICATION STOP MODE .
