System Description

BASIC OF MPX

General

The LEXUS LS430 multiplex communication uses serial communication, which converts multiple pieces of information into serial communication data. As a result, they can be transmitted through a single communication wire.

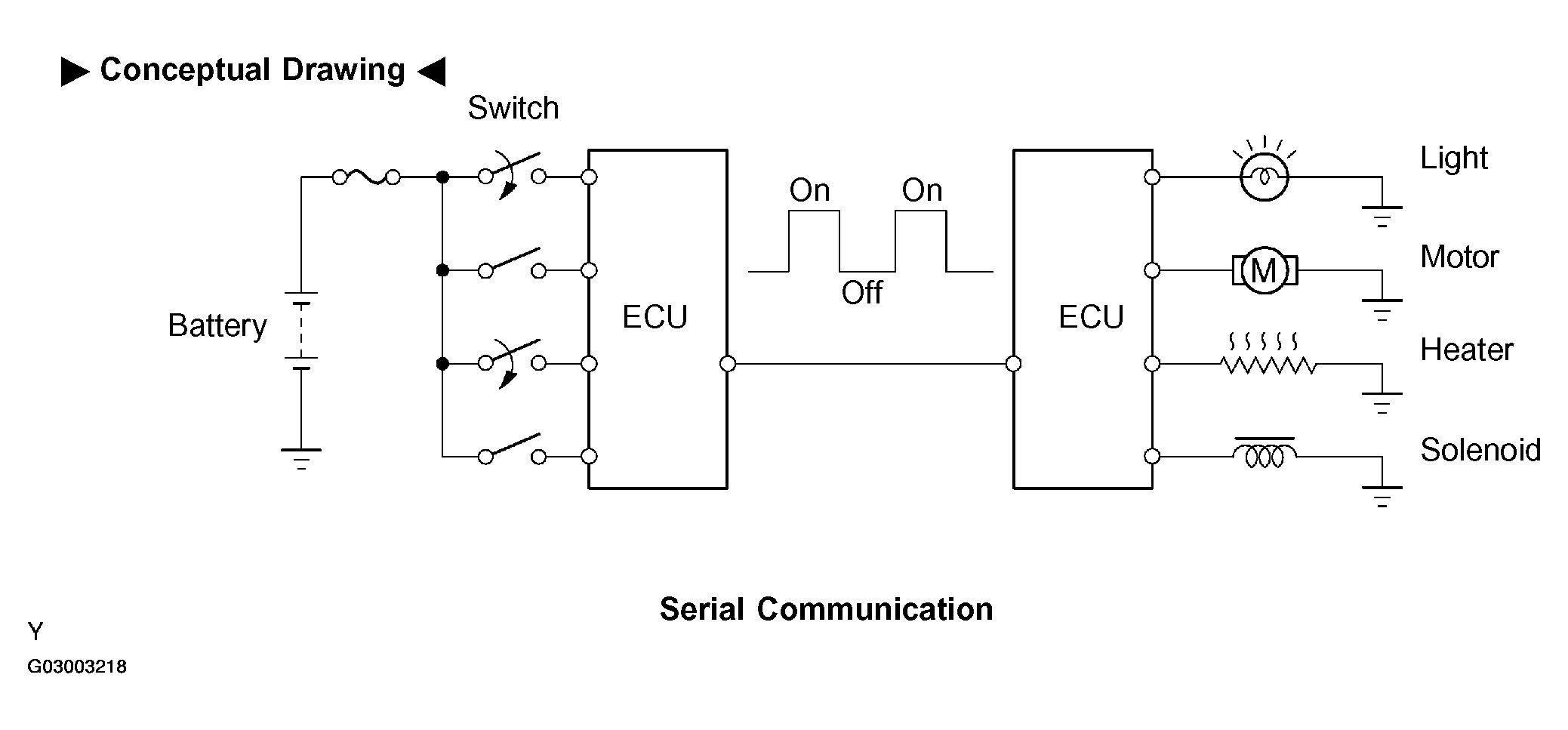

Fig 1: Conceptual Drawing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Serial communication data consists of bits and frames. A bit is the basic unit that represents the amount of information. A bit is represented by binary values "0" or "1". A frame is a body of data that is transmitted together. A frame contains a "header" that indicates the beginning of the data and an "end" message that indicates the end of the data.

Fig 2: Data Transmission Description Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Network Style

Based on serial communication, various ECUs are connected on a network to exchange various pieces of information. Such a system is called a multiplex communication system.

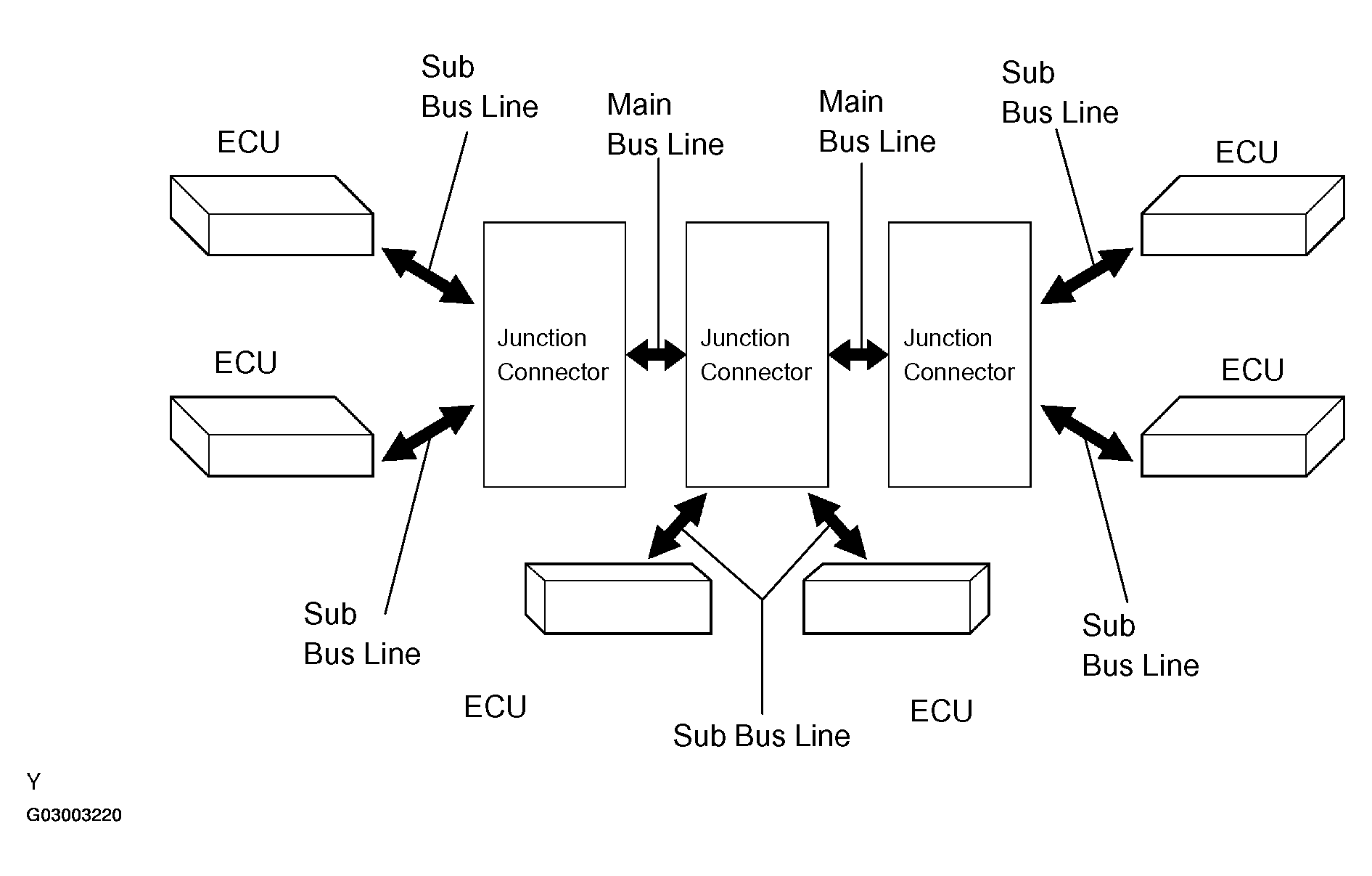

The CAN uses the multi star style bus connection. The 3 junction connectors are connected with a main bus line. The junction connector extends a sub bus line and enables communication between all the connected ECUs.

Fig 3: Network Diagram (CAN)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

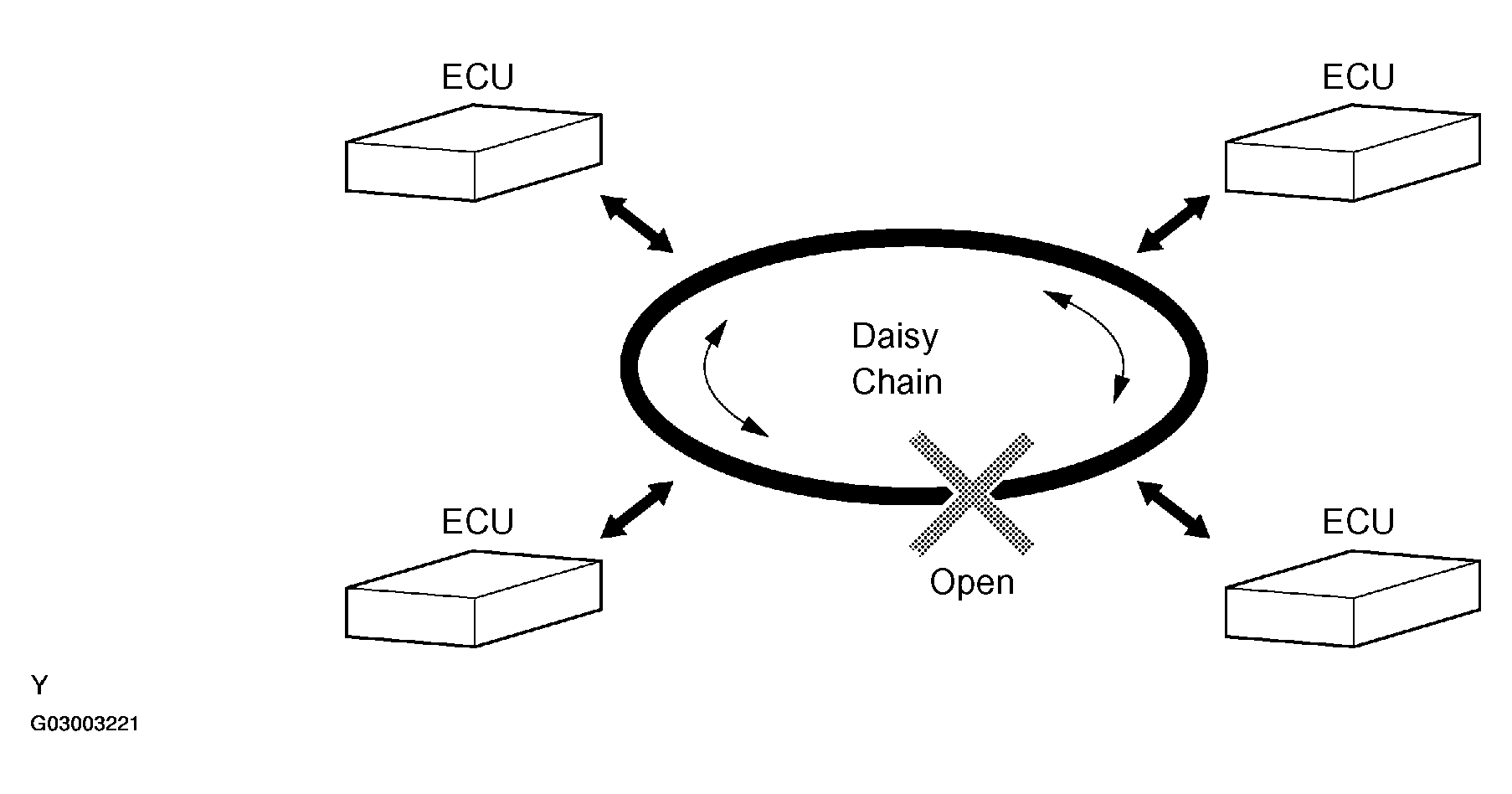

The BEAN uses the ring and bus styles of networks to connect ECUs. This style of connection method is called a daisy chain. In a daisy chain, communication can be maintained even if there is an area that has an open circuit.

Fig 4: Network Diagram (BEAN)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

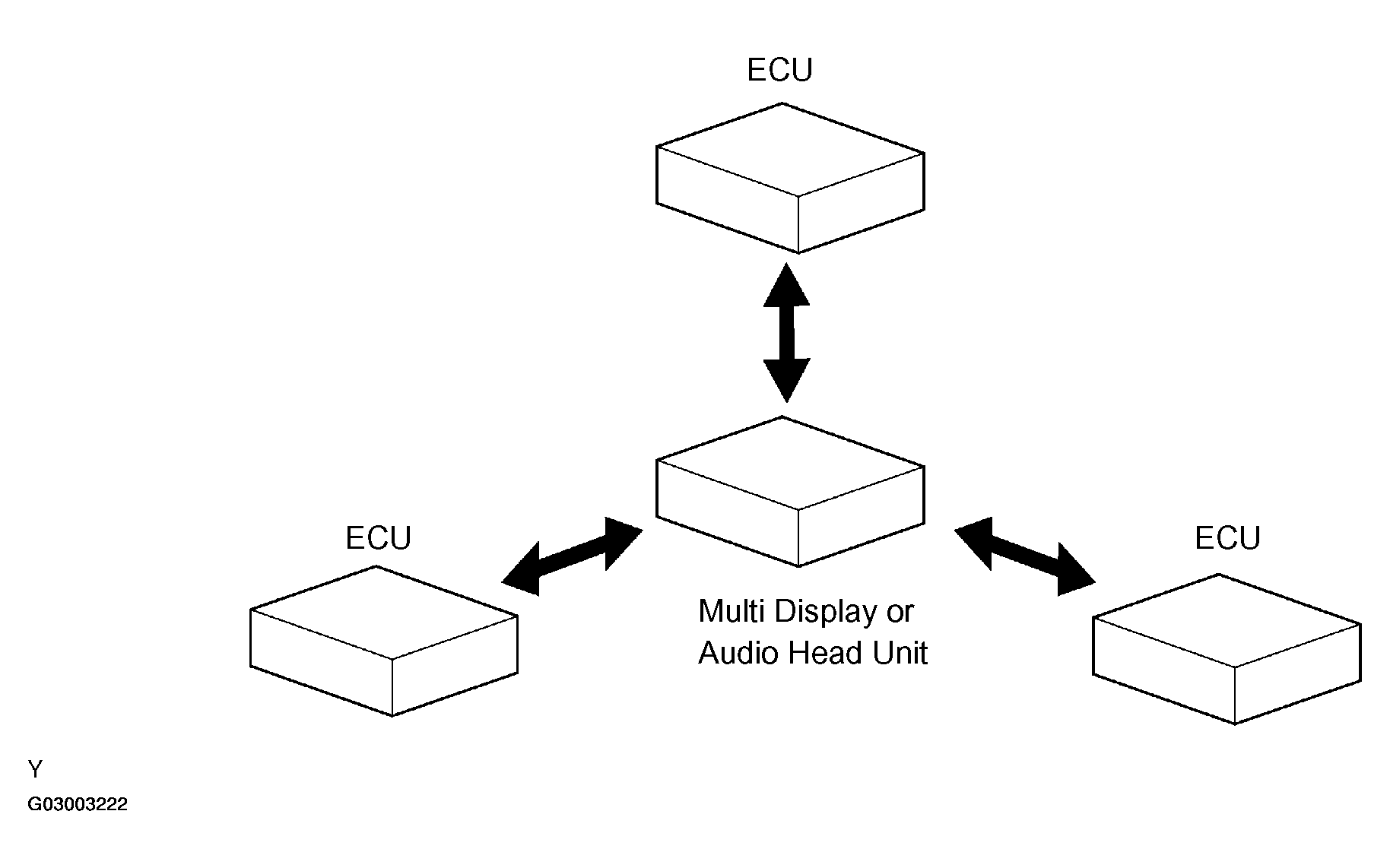

The AVC-LAN uses a star style, which is centered on the multi display or audio head unit.

Fig 5: Network Diagram (AVC-LAN)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Difference of CAN, BEAN and AVC-LAN

General

The protocols, which are the rules for establishing data communication, differ between the CAN, BEAN and the AVC-LAN. If ECUs use different types of data such as communication speed, communication wire, and signals, they will be unable to understand each other. Therefore, protocols (rules) must be established among them.

PROTOCOL RULES

Control	Driving Control System	Body Electrical Control System	Body Electrical Control System
Protocol	CAN (ISO Standard)	BEAN (TOYOTA Original)	AVC-LAN (TOYOTA Original)
Communication Speed	500 k bps* (Max. 1M bps)	Max. 10 k bps*	Max. 17.8 k bps*
Communication Wire	Twisted-pair Wire	AV Single Wire	Twisted-pair Wire
Drive Type	Differential Voltage Drive	Single Wire Voltage Drive	Differential Voltage Drive
Data Length	1 - 8 Byte (Variable)	1 - 11 Byte (Variable)	0 - 32 Byte (Variable)

HINT:

*: The abbreviation "bps" stands for "bits per second", the number of bits that can be transmitted per second.

Communication Wire

A single, Automobile Vinyl (AV) wire is used for BEAN communication. A twisted-pair wire is used for CAN and AVC-LAN communication.

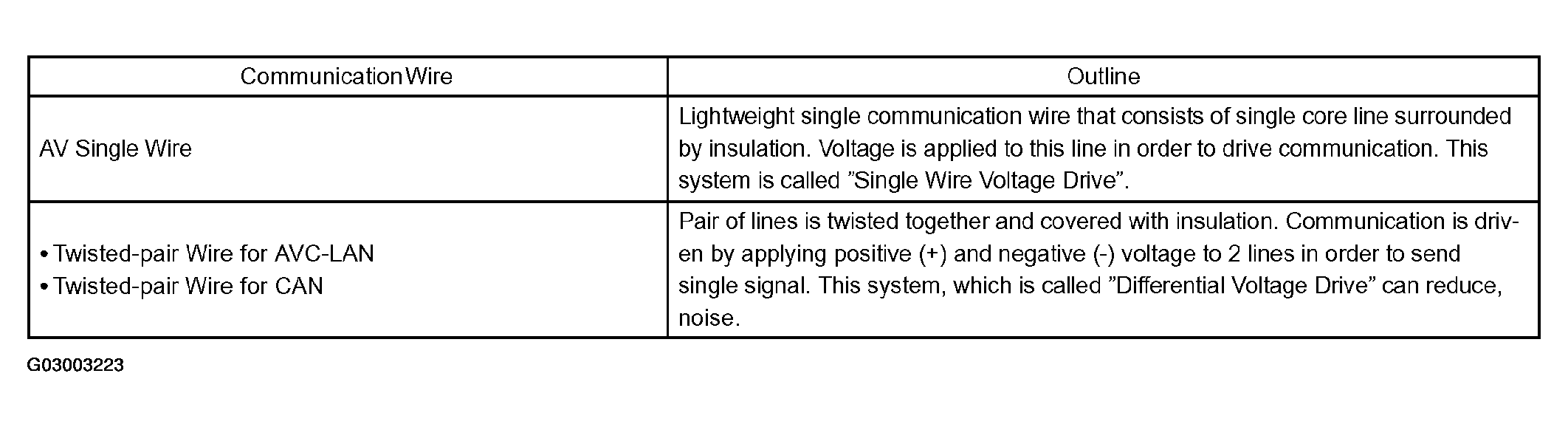

Fig 6: Communication Wire Outline Chart

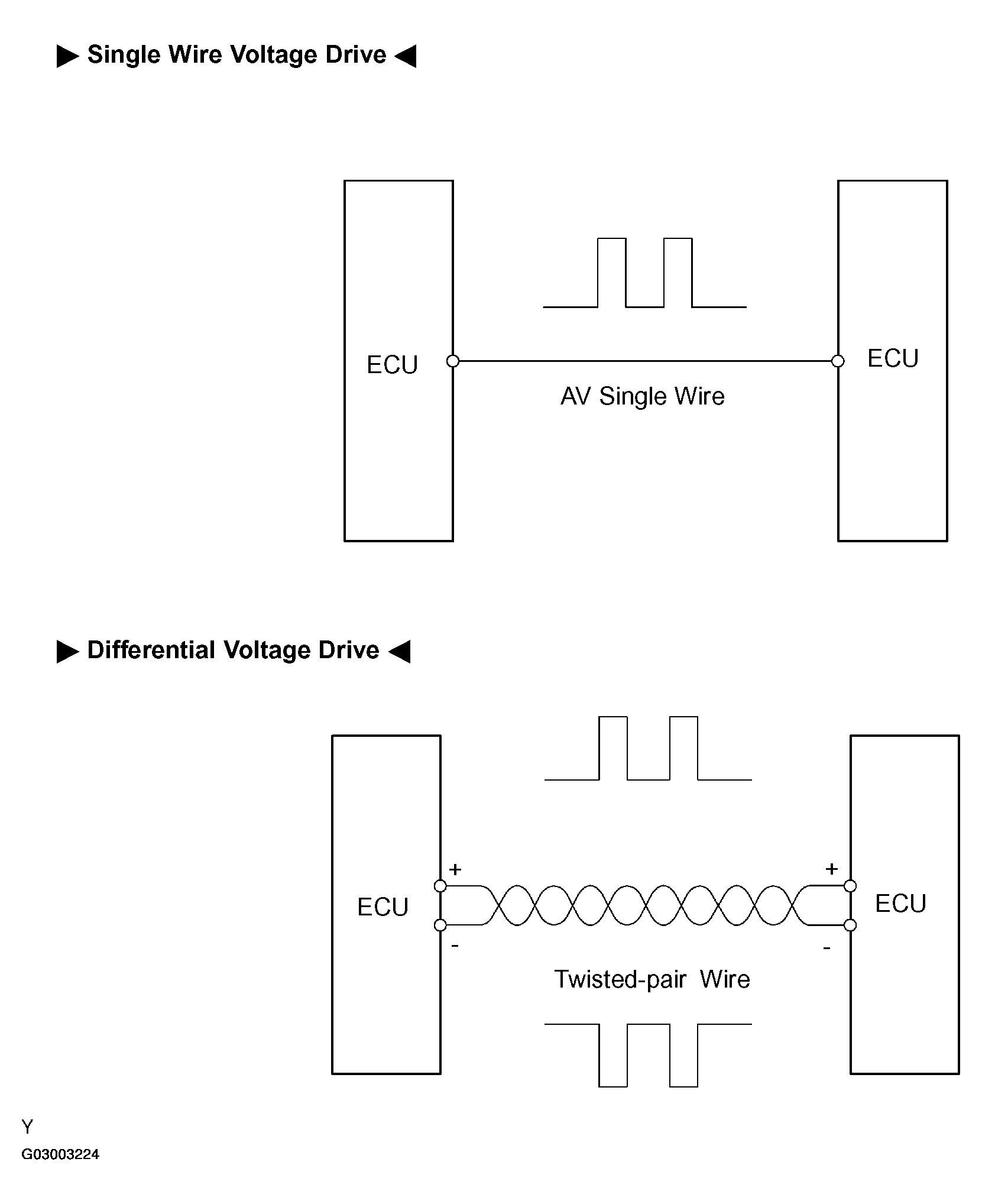

Fig 7: Voltage Drive Diagram

GATEWAY ECU

General

The gateway ECU of the LEXUS LS430 has the following functions.

GATEWAY ECU FUNCTIONS OUTLINE

Function	Outline
Gateway	Data for respective protocols (CAN, BEAN and AVC-LAN) are arranged differently. Therefore, it is not possible to exchange data between different protocols. For this reason. data arrangement must be converted before transferring data to communication bus (CAN, BEAN and AVC-LAN). This conversion is called gateway function, which is performed by gateway ECU.
Diagnosis (only for BEAN)	By connecting hand-held tester (with CAN VIM) to DLC3 and operating tester, technicians can access ECUs via gateway ECU and BEAN communication bus. In this manner, DTCs can be output from BEAN, DATA LIST (for checking ECU data) and ACTIVE TEST (to actuate desired actuator) can be performed.
Customize (only for BEAN)	Customized body electronics system enables control function settings of ECUs to be changed through use of hand-held tester. However, this system can change settings of only ECUs that belong to bus in which communication is centered on gateway ECU.
