Fail-Safe Chart

If the following conditions are detected while the cruise control is in operation, the system clears the stored vehicle speed in the ECM and cancels the cruise control operation.

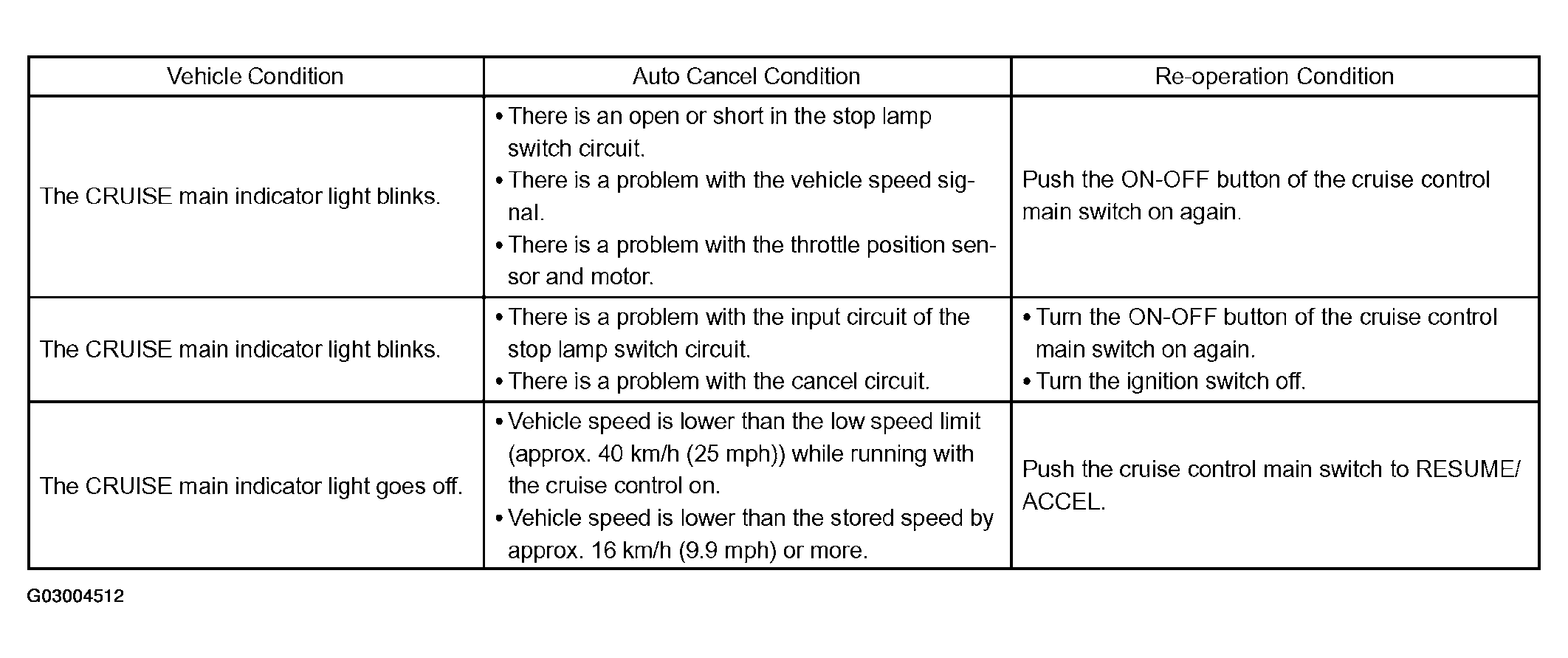

Fig 1: Fail-Safe Chart

G03004512

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
