Dynamic Laser Cruise Control System - Diagnostics
›
Location
Dynamic Laser Cruise Control System - Diagnostics: Location

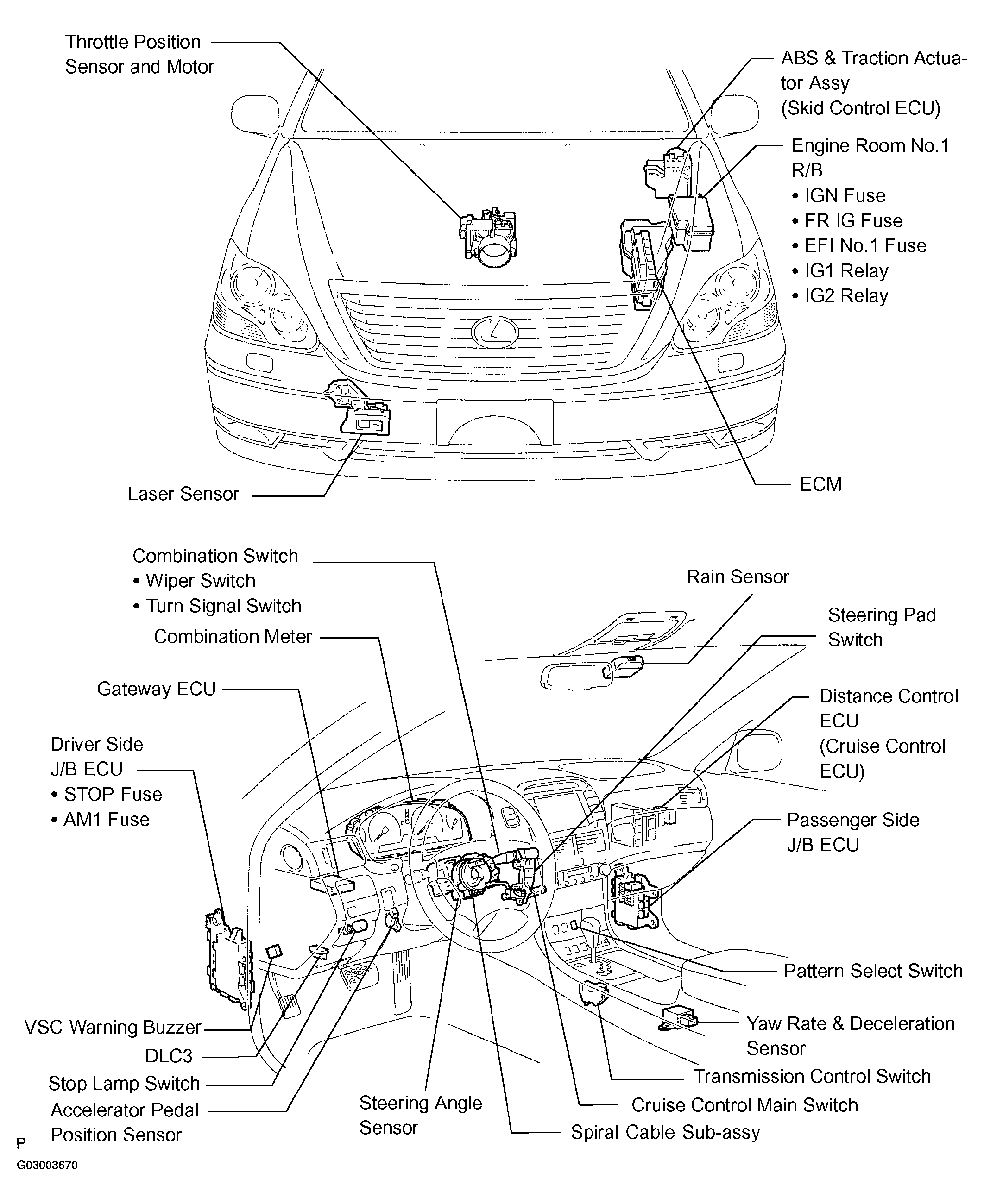

Fig 1: Identifying Dynamic Laser Cruise Control System Electrical Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

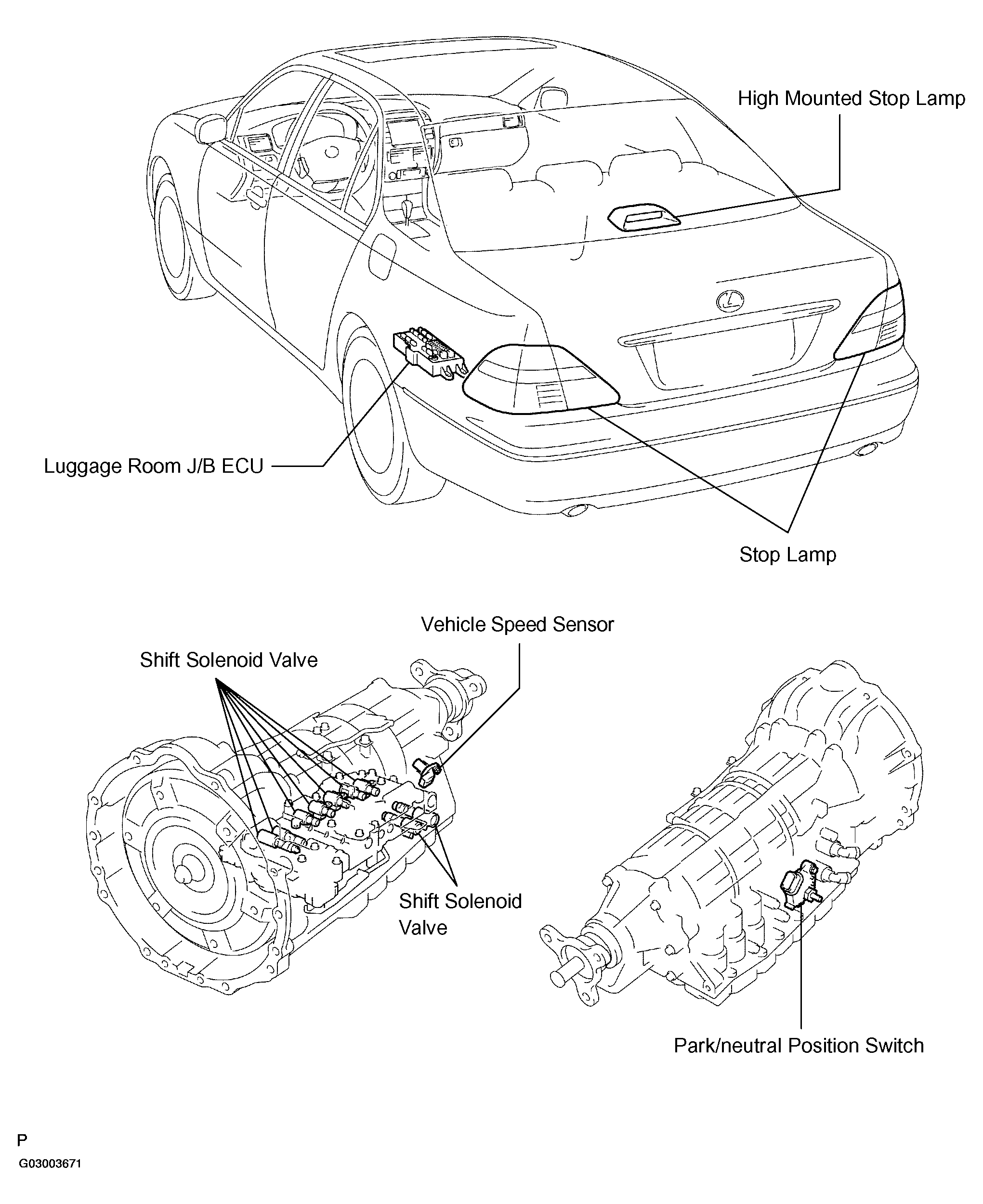

Fig 2: Identifying Dynamic Laser Cruise Control System Electrical Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
