Cruise Control Systems
›
Dynamic Laser Cruise Control System - Diagnostics
›
System Diagram
System Diagram

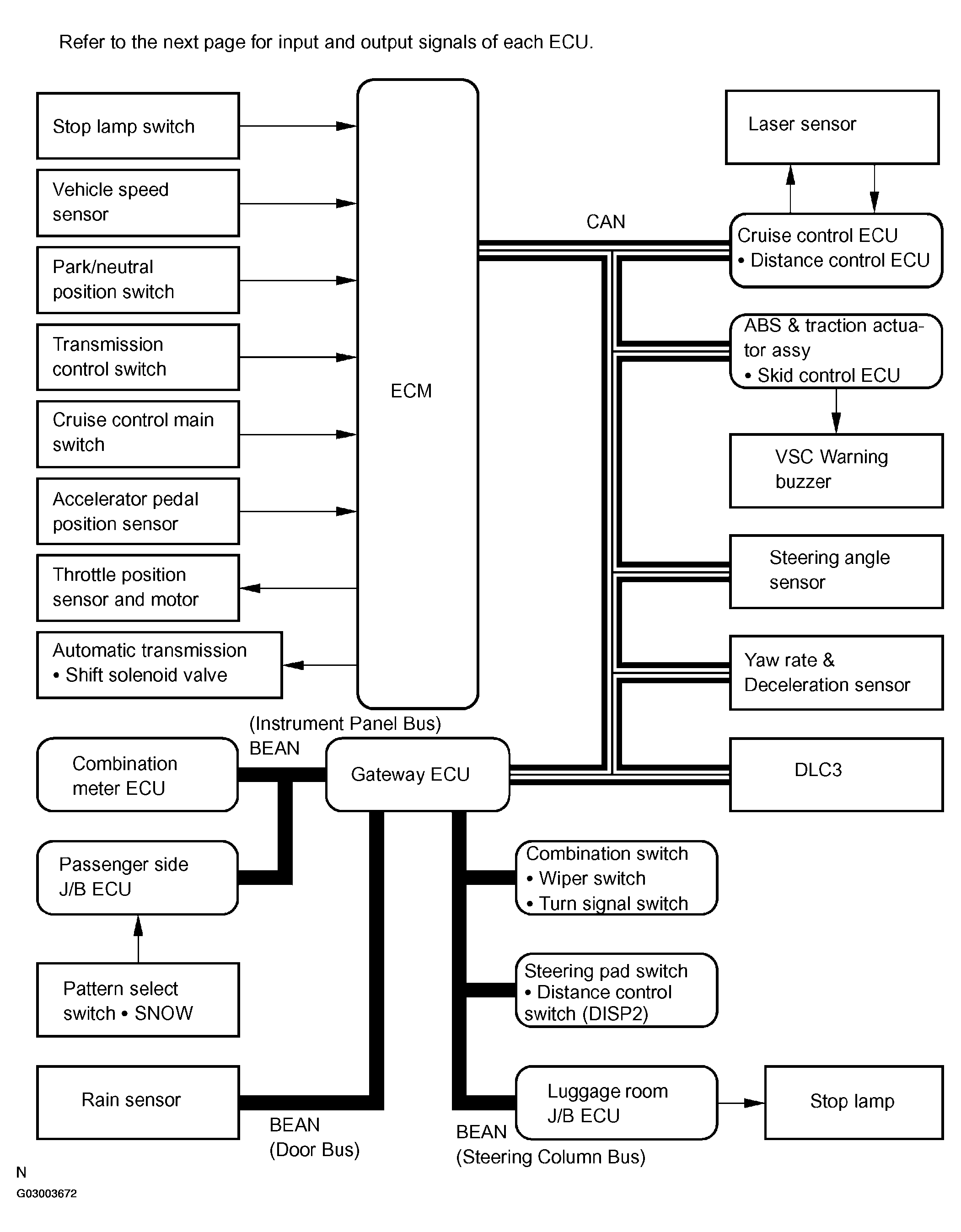

Fig 1: Wiring Diagram - Dynamic Laser Cruise Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Input and output signals of each ECU.

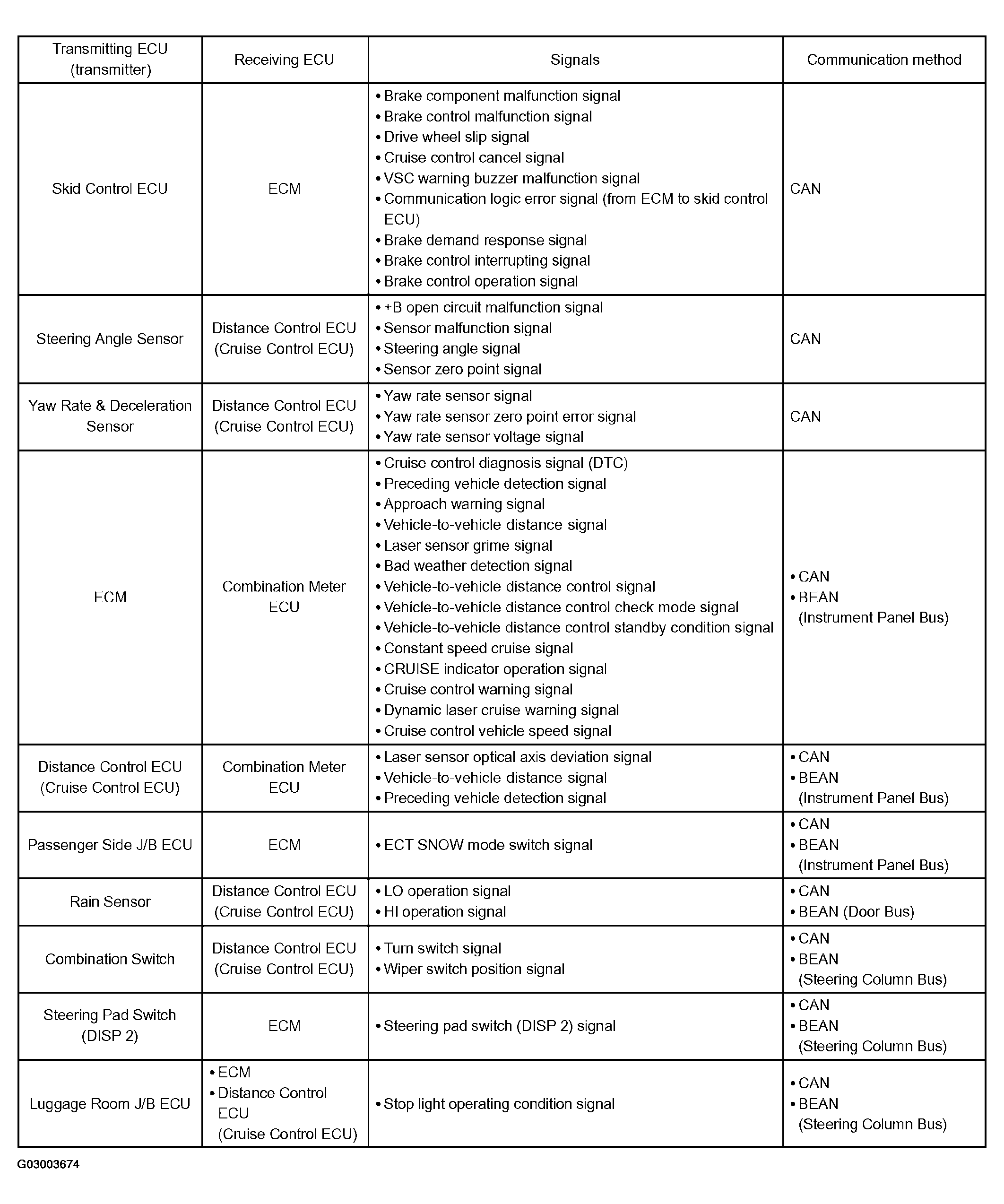

Fig 2: ECU Input And Output Signals Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

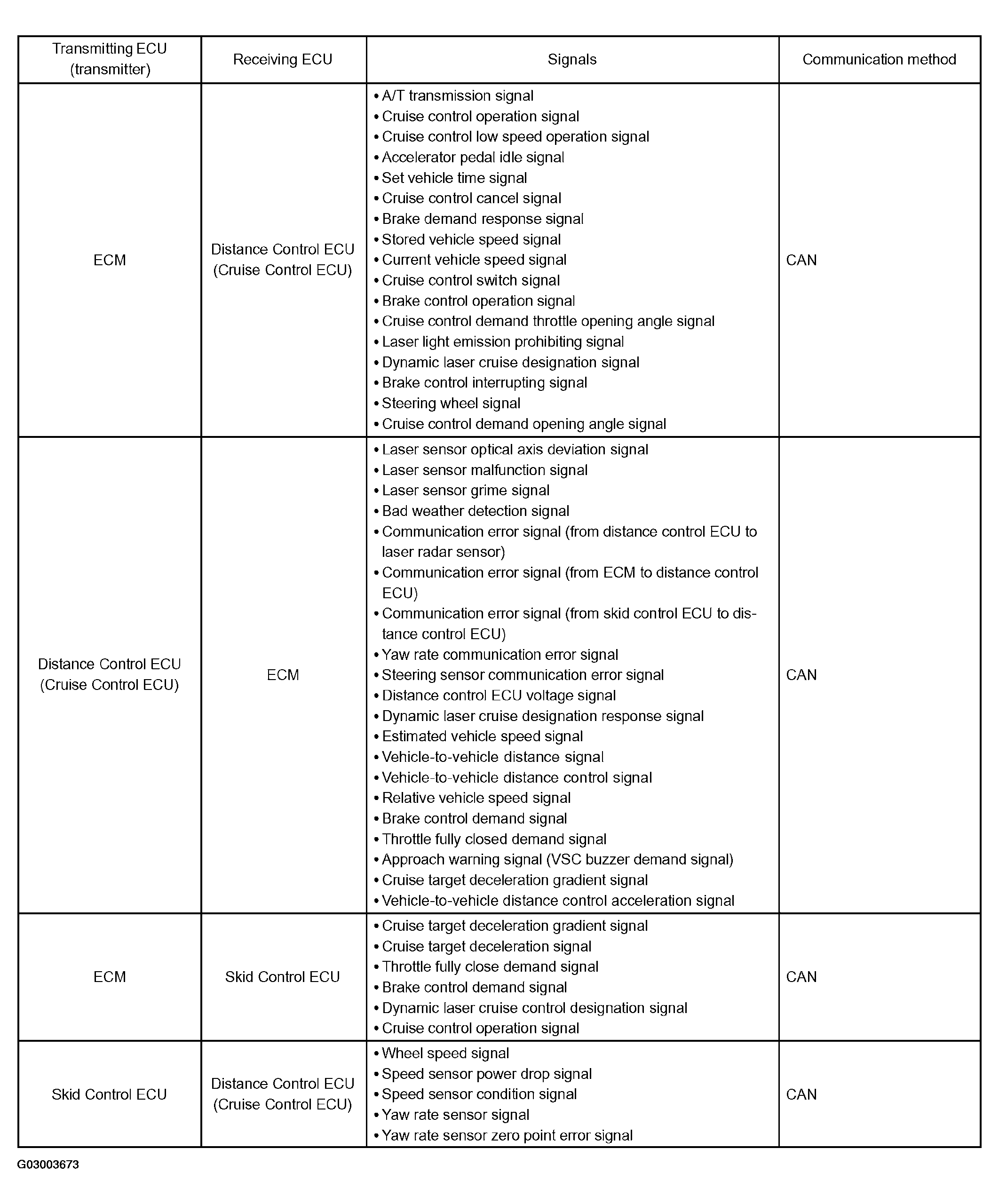

Fig 3: ECU Input And Output Signals Chart (2 Of 2)
