Sensor Power Source Circuit: Wiring Diagram

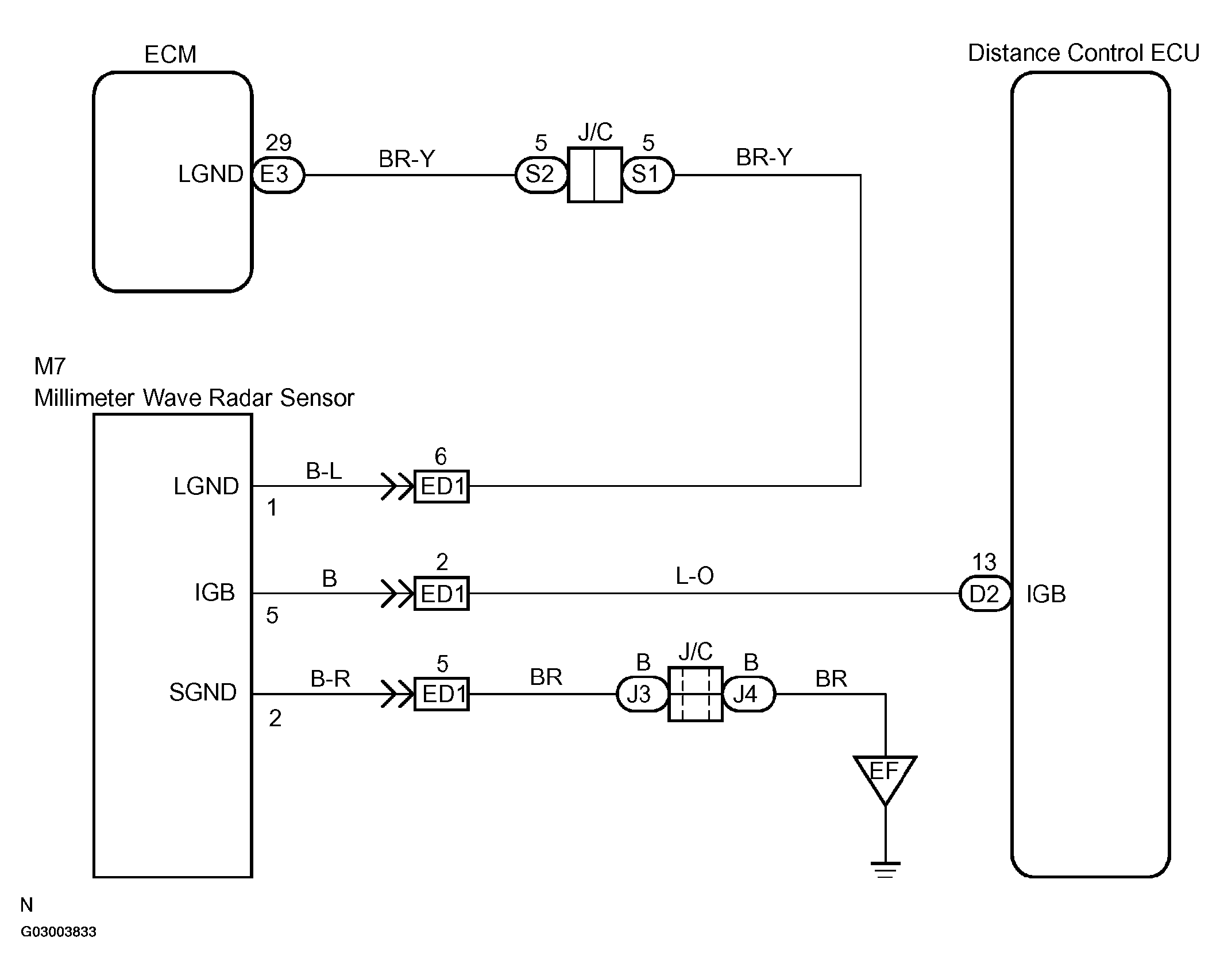

Fig 1: Wiring Diagram - Sensor Power Source Circuit
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
