System Diagram
System Diagram

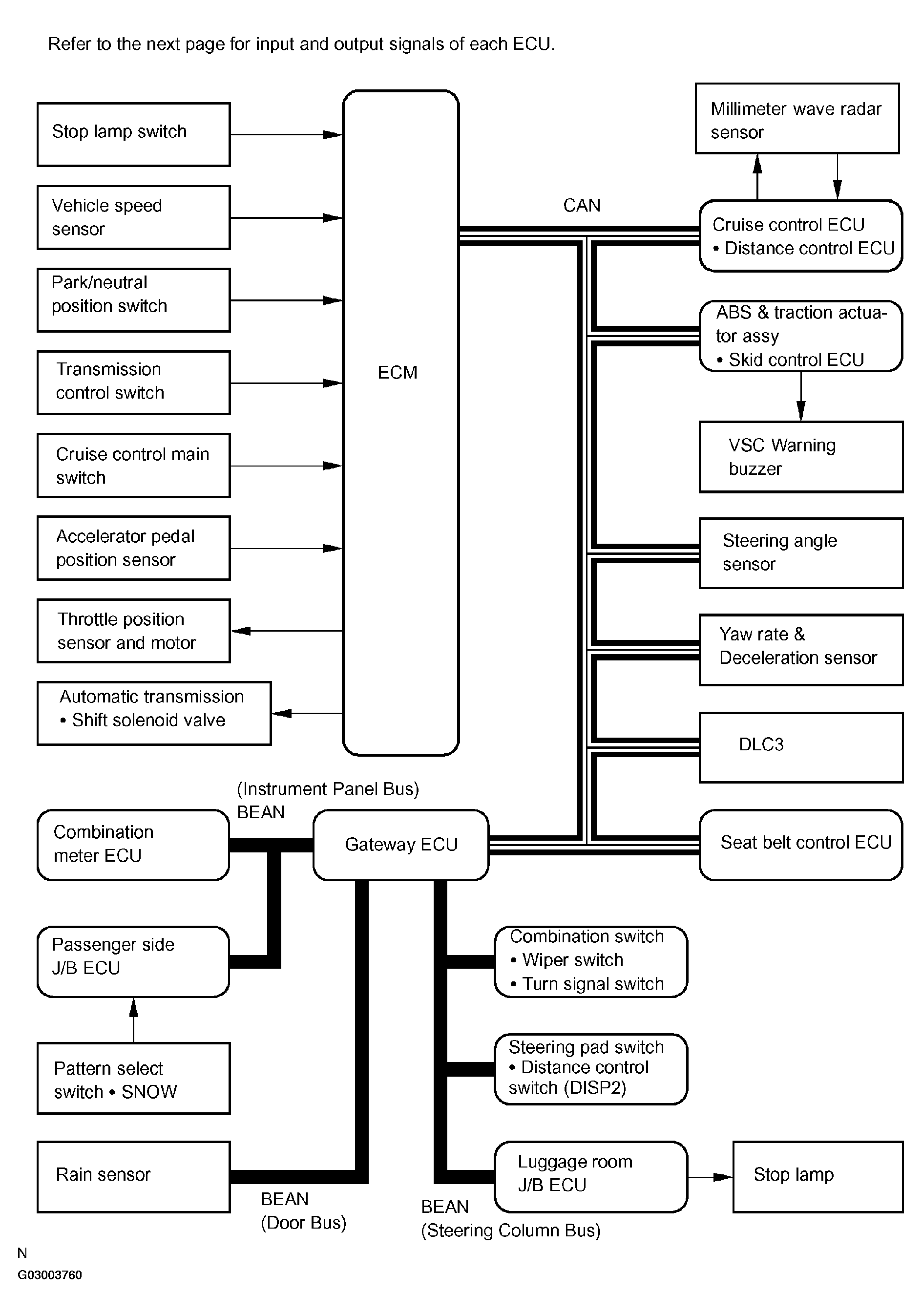

Fig 1: Wiring Diagram - Dynamic Radar Cruise Control System
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Input and output signals of each ECU.

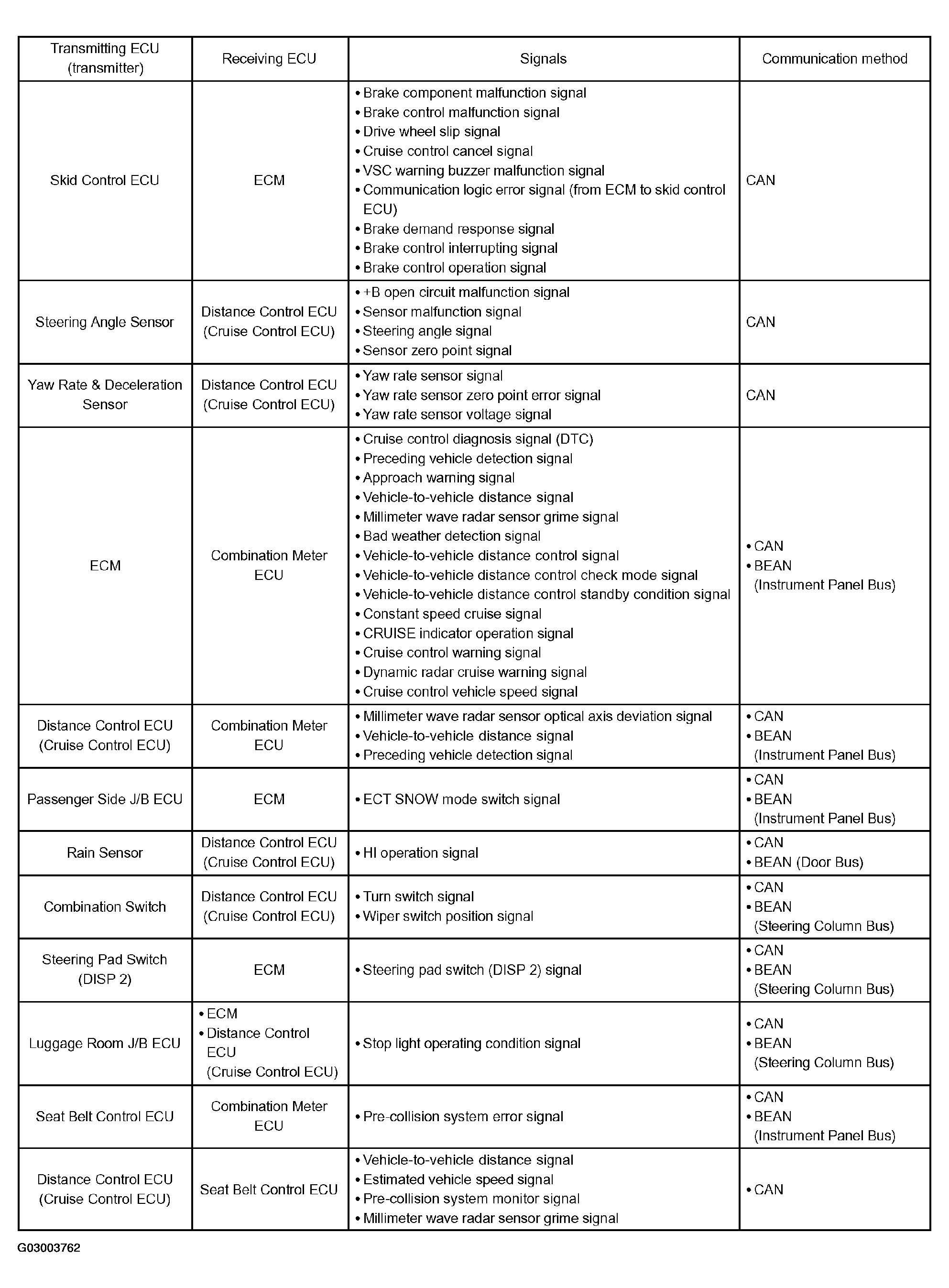

Fig 2: ECU Input And Output Signals Chart (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

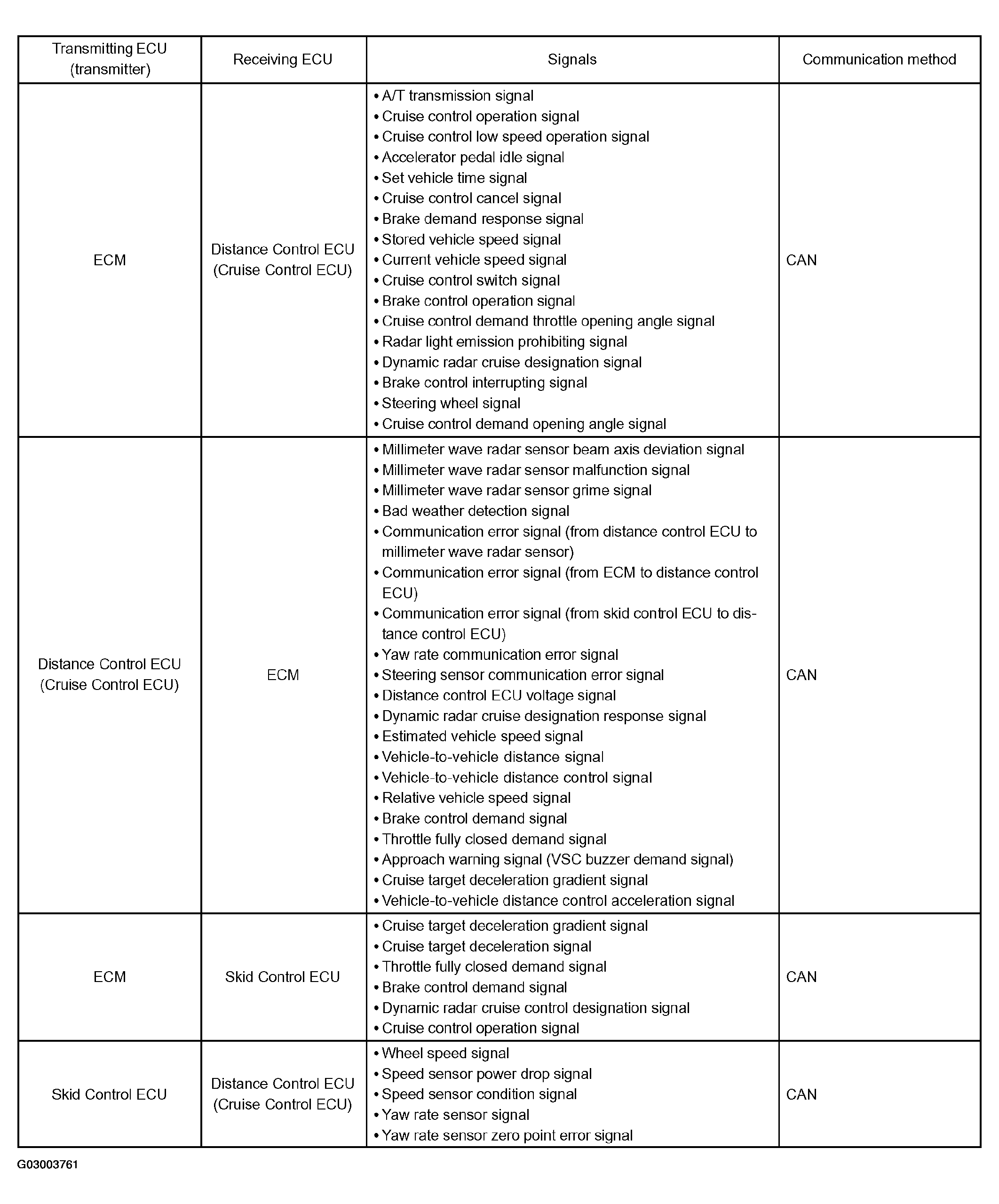

Fig 3: ECU Input And Output Signals Chart (2 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
