Cigarette Lighter ASSY: Replacement

HINT:

• See COMPONENTS .
• Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See step 26 on  REPLACEMENT  )
2. REMOVE CONSOLE PANEL SUB-ASSY UPPER (See step 38 on  REPLACEMENT  )
3. REMOVE CIGARETTE LIGHTER ASSY
   1. Rotate the socket cap counterclockwise to remove it.
   2. Remove the cigarette lighter assy from the cigar-lighter hole bezel.

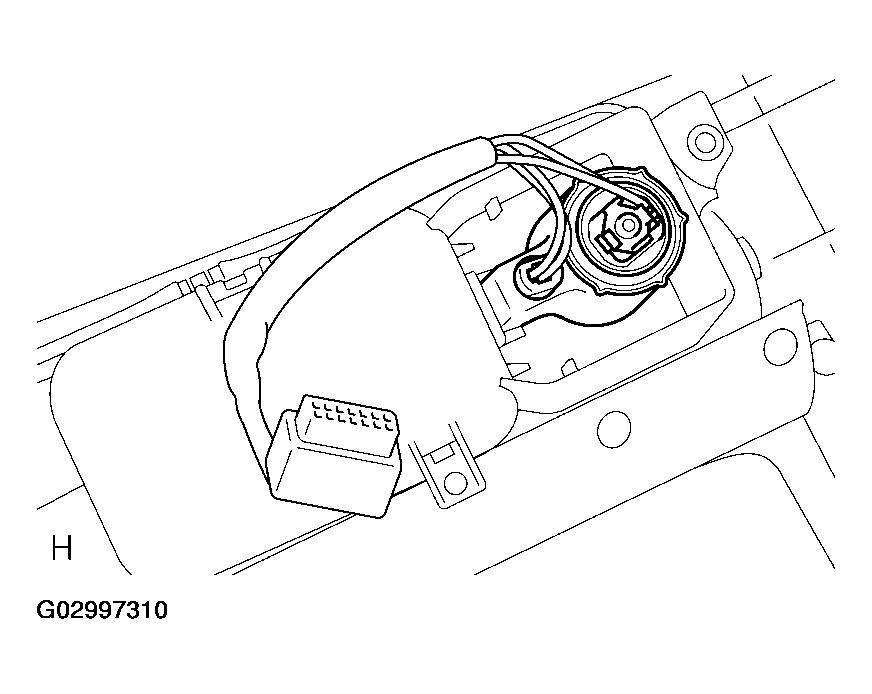

      Fig 1: Removing Cigarette Lighter Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL CIGARETTE LIGHTER ASSY
   1. Properly position the socket and ring at the cutout of the cigar-lighter hole bezel and insert them.
   2. Rotate the socket cap clockwise from the backside.
