Inspection Procedure

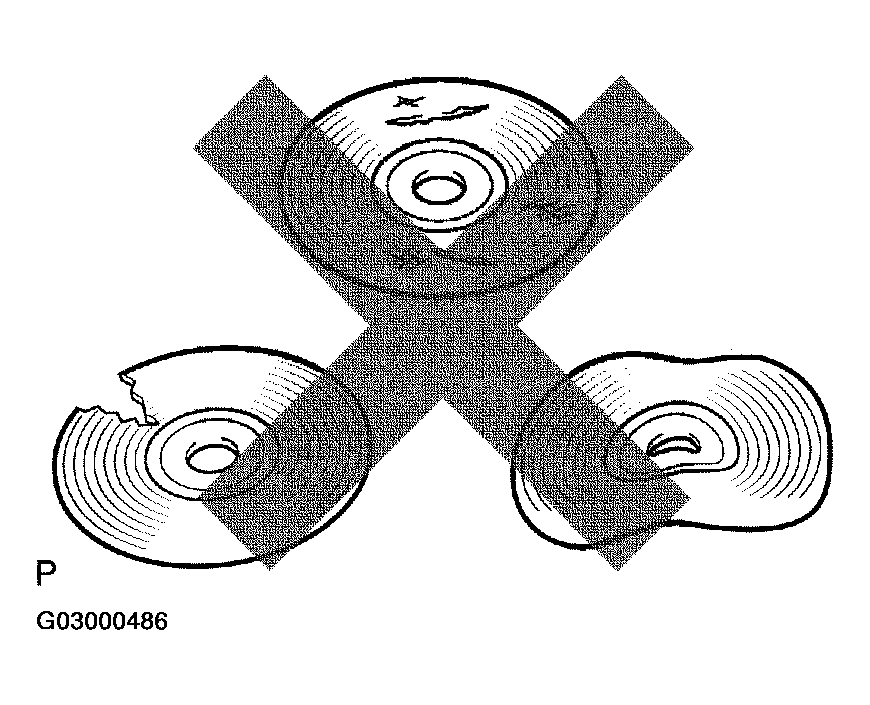

Fig 1: Displaying MAP Disc

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the map disc is not deformed or cracked.

   OK: No deformations or cracks appear on the map disc.

NG: REPLACE THE MAP DISC

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
