Inspection Procedure

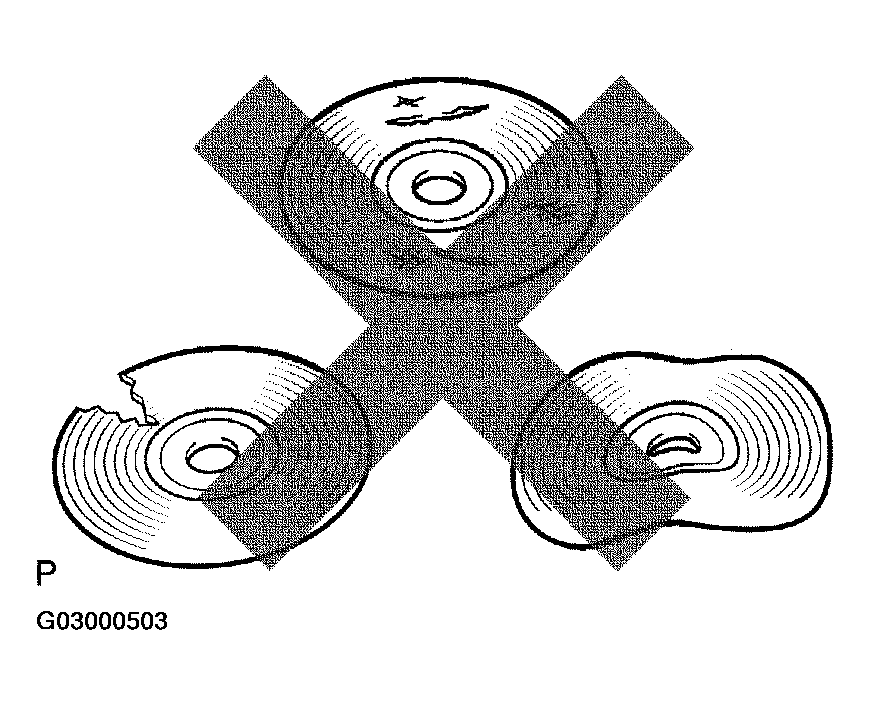

Fig 1: Identifying MAP Disc

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the map disc is not deformed or cracked.

   OK: No deformations or cracks appear on the map disc.

NG: REPLACE THE MAP DISC

OK: GO TO NEXT STEP

Fig 2: Checking Dirt On MAP Disc Surface

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check for dirt on the map disc surface.

   OK: No dirt is on the map disc surface.

   HINT:

   If dirt is on the map disc surface, wipe it with a soft cloth from inside to outside in a radial direction.

   NOTE: Do not use conventional record cleaner or anti-static preservative.

NG: CLEAN THE MAP DISC

OK: GO TO NEXT STEP

1. Enter the "Microphone Check" mode (see NAVIGATION CHECK MODE (MICROPHONE CHECK)  )
   Fig 3: Displaying Microphone

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Follow the directions on the screen. Check if the word recognition indicator is displayed in green in each item.

   OK: All check items are recognized.

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

OK: REPLACE NAVIGATION ECU (SEE  REPLACEMENT  )
