Inspection Procedure

1. Check if the system's voice recognition level is low with only one particular voice.

OK: The system's voice recognition level is low with any voice.

NG: SYSTEM'S VOICE RECOGNITION LEVEL VARIES DEPENDING VOICE AND PRONUNCIATION. THIS IS NOT A MALFUNCTION

OK: GO TO NEXT STEP

Fig 1: Checking System'S Voice Recognition Level

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

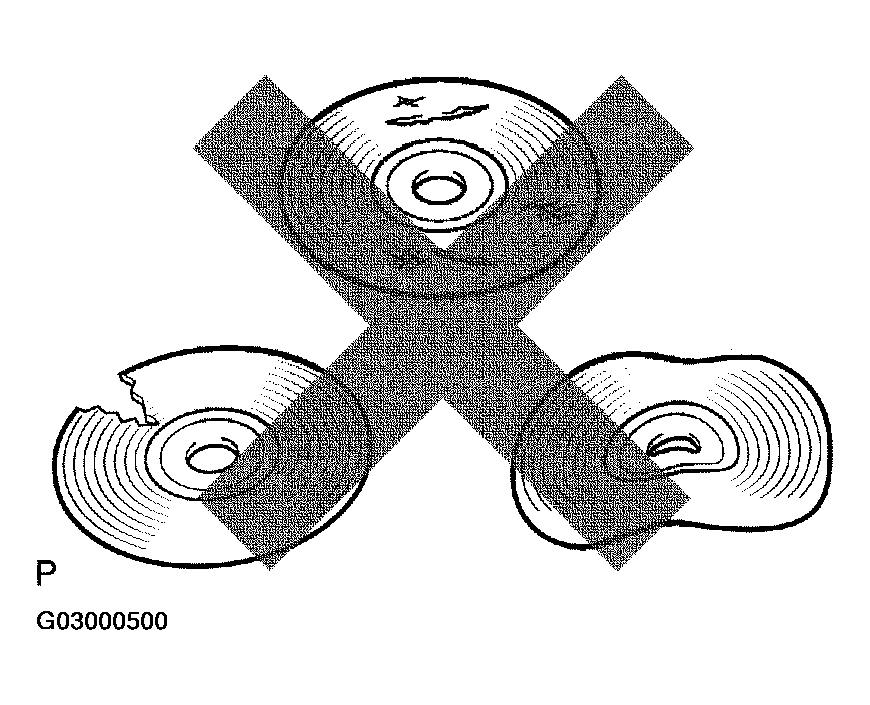

1. Check that the map disc is not deformed or cracked.

   OK: No deformations or cracks appear on the map disc.

NG: REPLACE THE MAP DISC

OK: GO TO NEXT STEP

Fig 2: Cleaning Dirt Map Disc Surface

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check for dirt on the map disc surface.

OK: No dirt is on the map disc surface.

HINT:

If dirt is on the map disc surface, wipe it with a soft cloth from inside to outside in a radial direction.

NG: CLEAN THE MAP DISC

OK: GO TO NEXT STEP

1. Enter the "Microphone Check" mode (see NAVIGATION CHECK MODE (MICROPHONE CHECK)  )
   Fig 3: Displaying Microphone Check

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Follow the directions on the screen. Check if the word recognition indicator is displayed in green in each item.

   OK: All check items are recognized.

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

OK: NORMAL OPERATION
