Key Reminder Warning System - Diagnostics
›
Location
Key Reminder Warning System - Diagnostics: Location

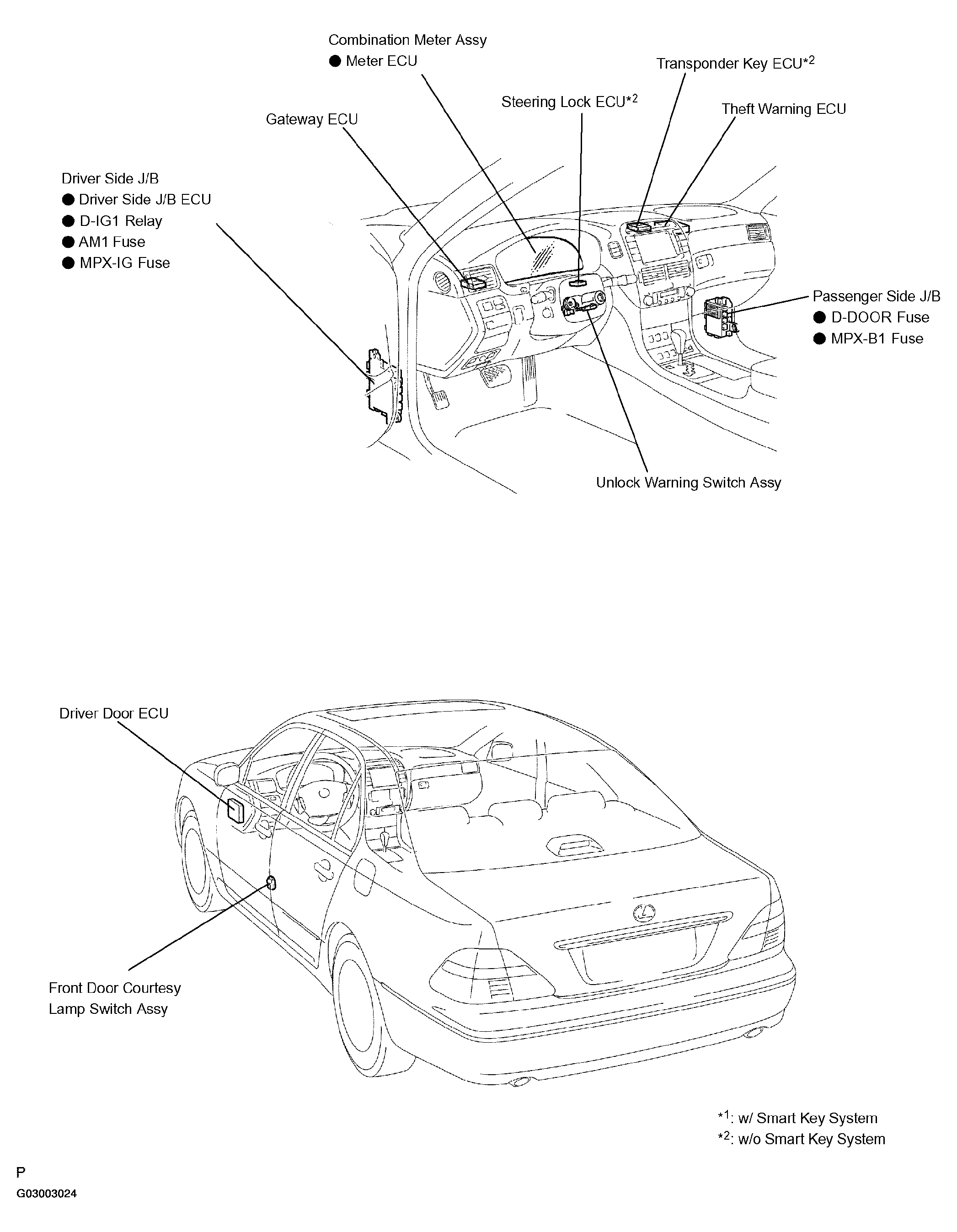

Fig 1: Locating Components Of Key Reminder Warning System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
