Smart Indicator Circuit: Wiring Diagram

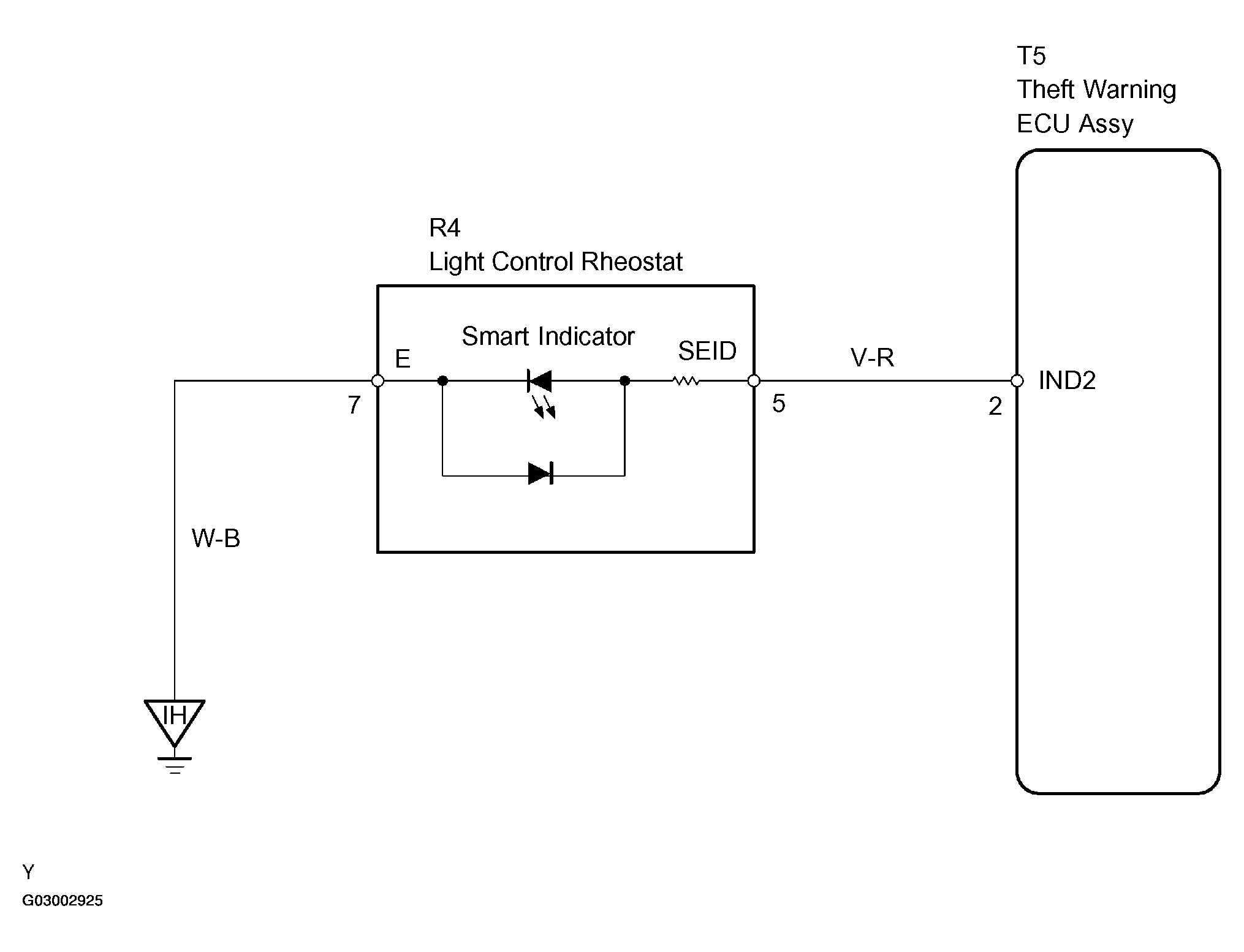

Fig 1: Smart Indicator Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
