Smart Key System - Diagnostics
›
System Diagram
›
Communication line
Communication line

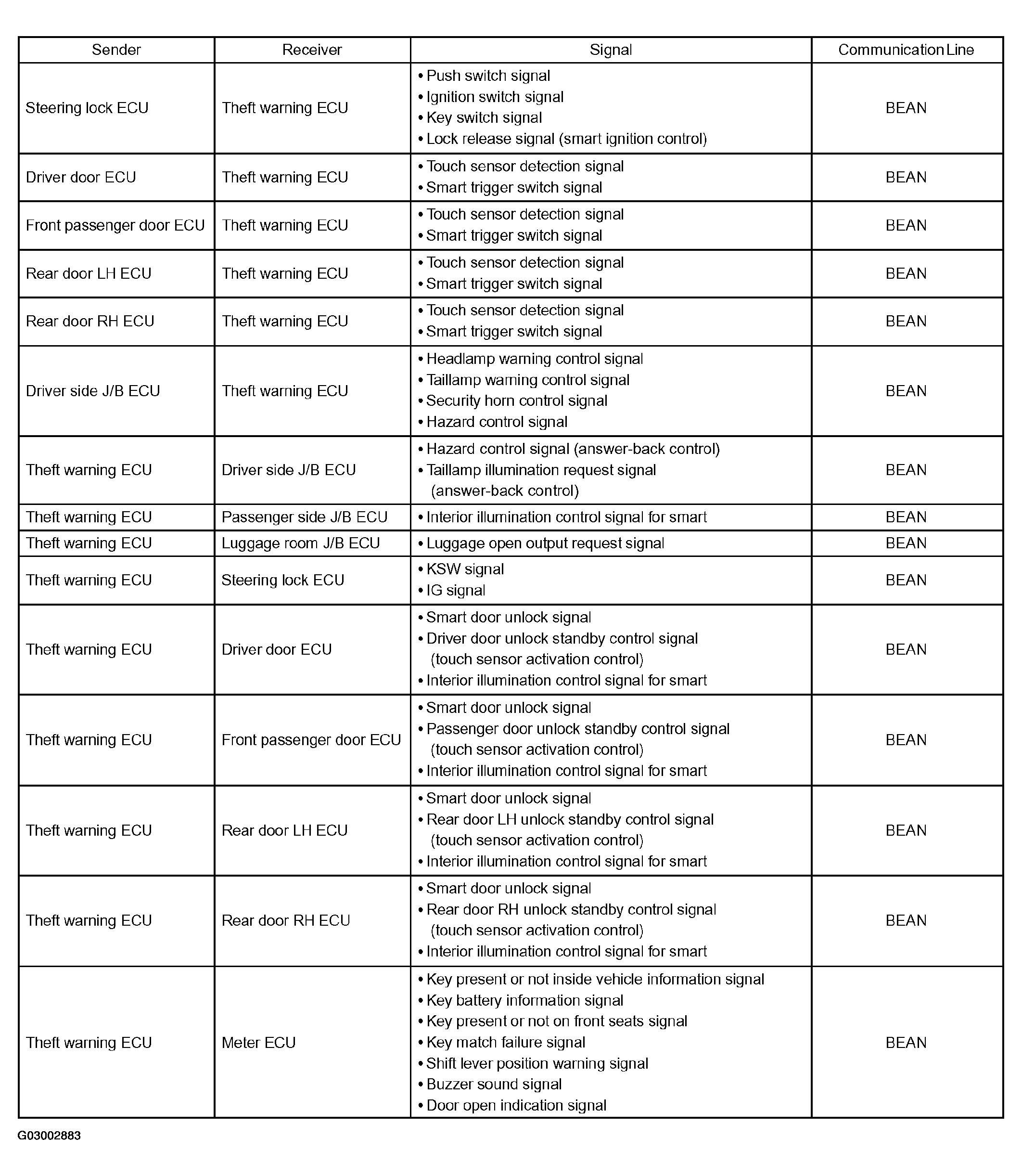

Fig 1: Communication Line Description Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
