Smart Key System - Diagnostics
›
Touch Sensor Circuit
›
Wiring Diagram
Touch Sensor Circuit: Wiring Diagram

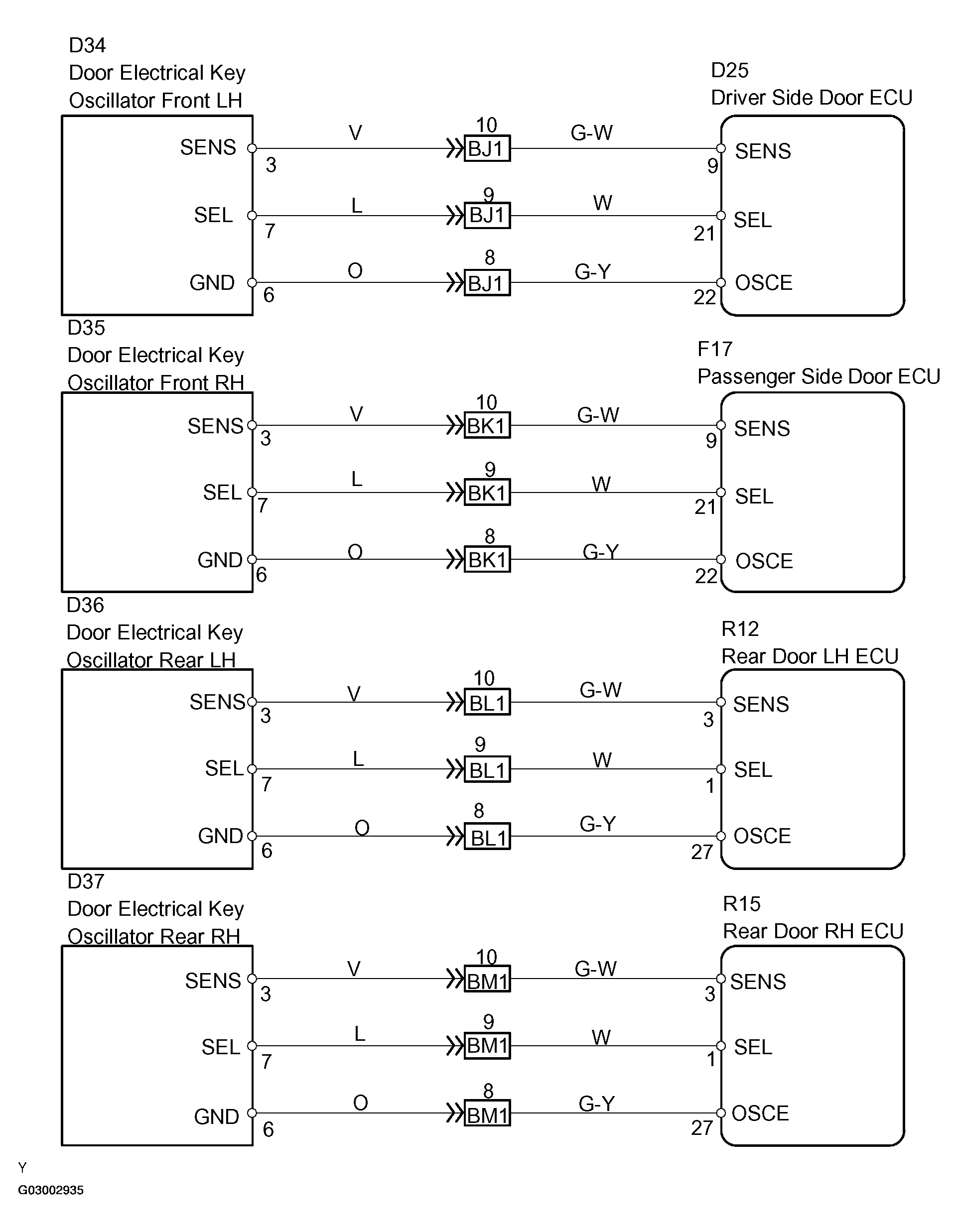

Fig 1: Touch Sensor Circuit Wiring Diagram
