Smart Key System - Diagnostics
›
Trigger Switch Circuit
›
Wiring Diagram
Trigger Switch Circuit: Wiring Diagram

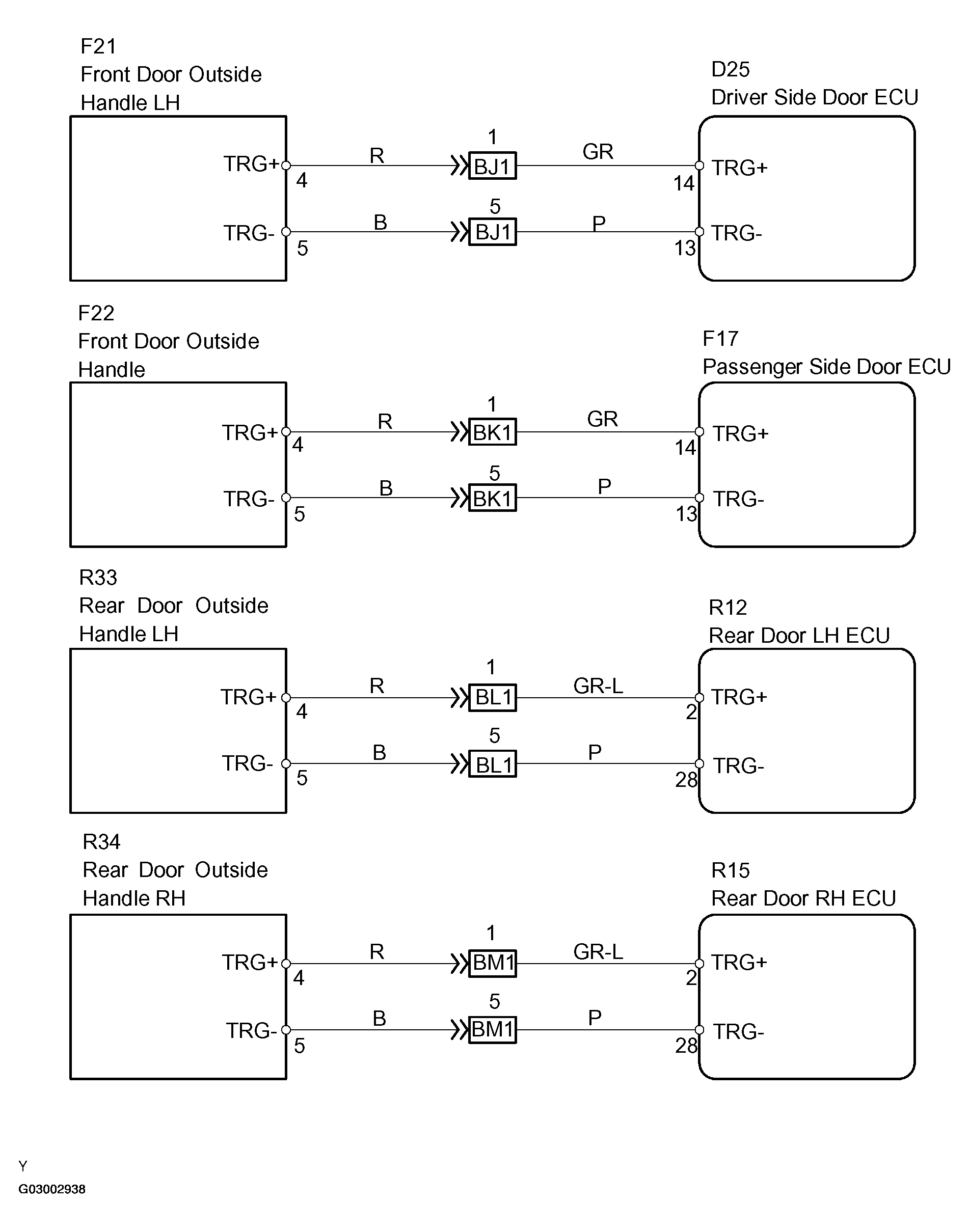

Fig 1: Trigger Switch Circuit Wiring Diagram
