Power Mirror Control System (W/ Memory) - Diagnostics
›
ELECTROCHROMATIC Mirror Circuit
›
Wiring Diagram
ELECTROCHROMATIC Mirror Circuit: Wiring Diagram

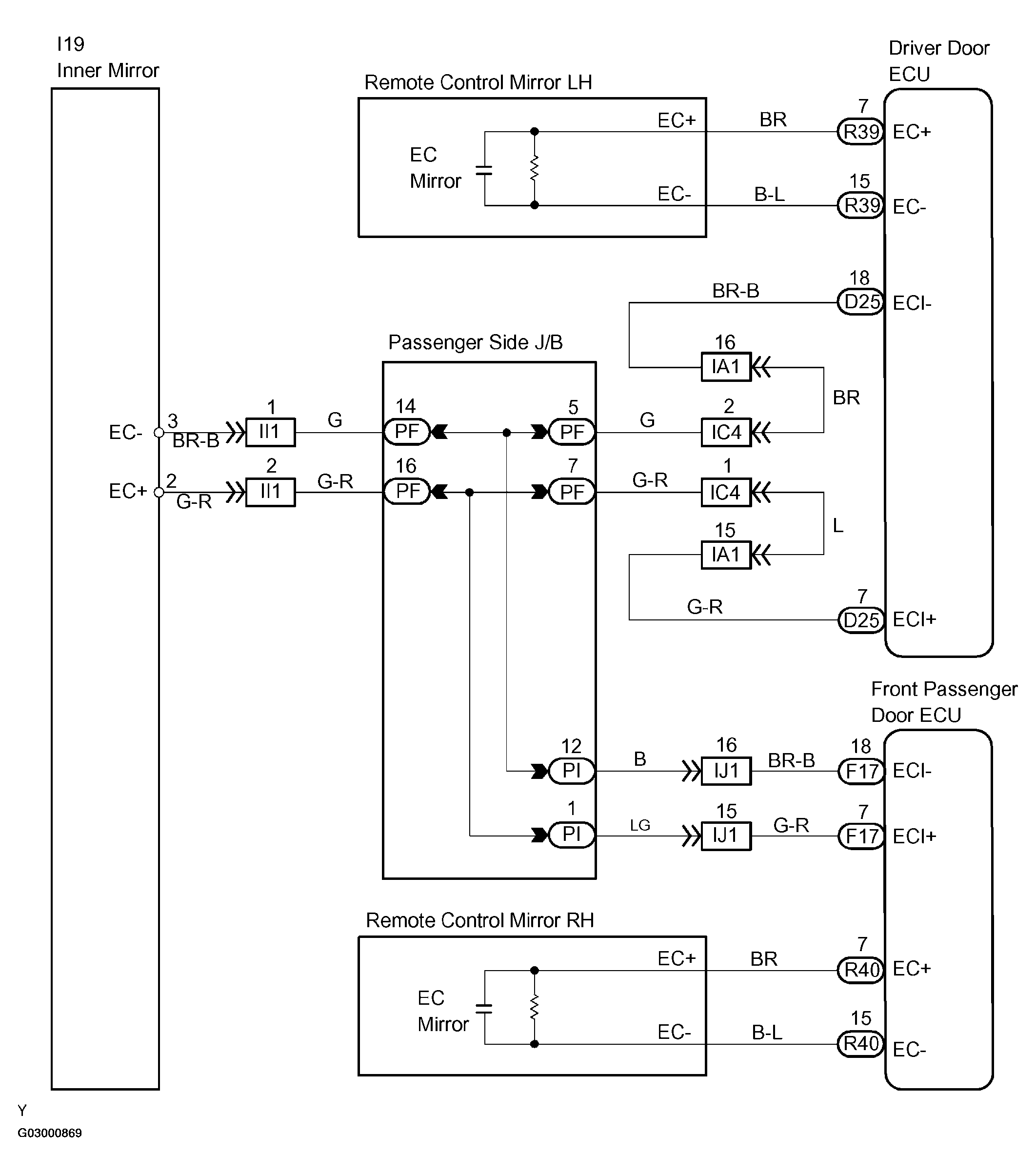

Fig 1: Electrochromatic Mirror Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
