Power Mirror Control System (W/ Memory) - Diagnostics: Location

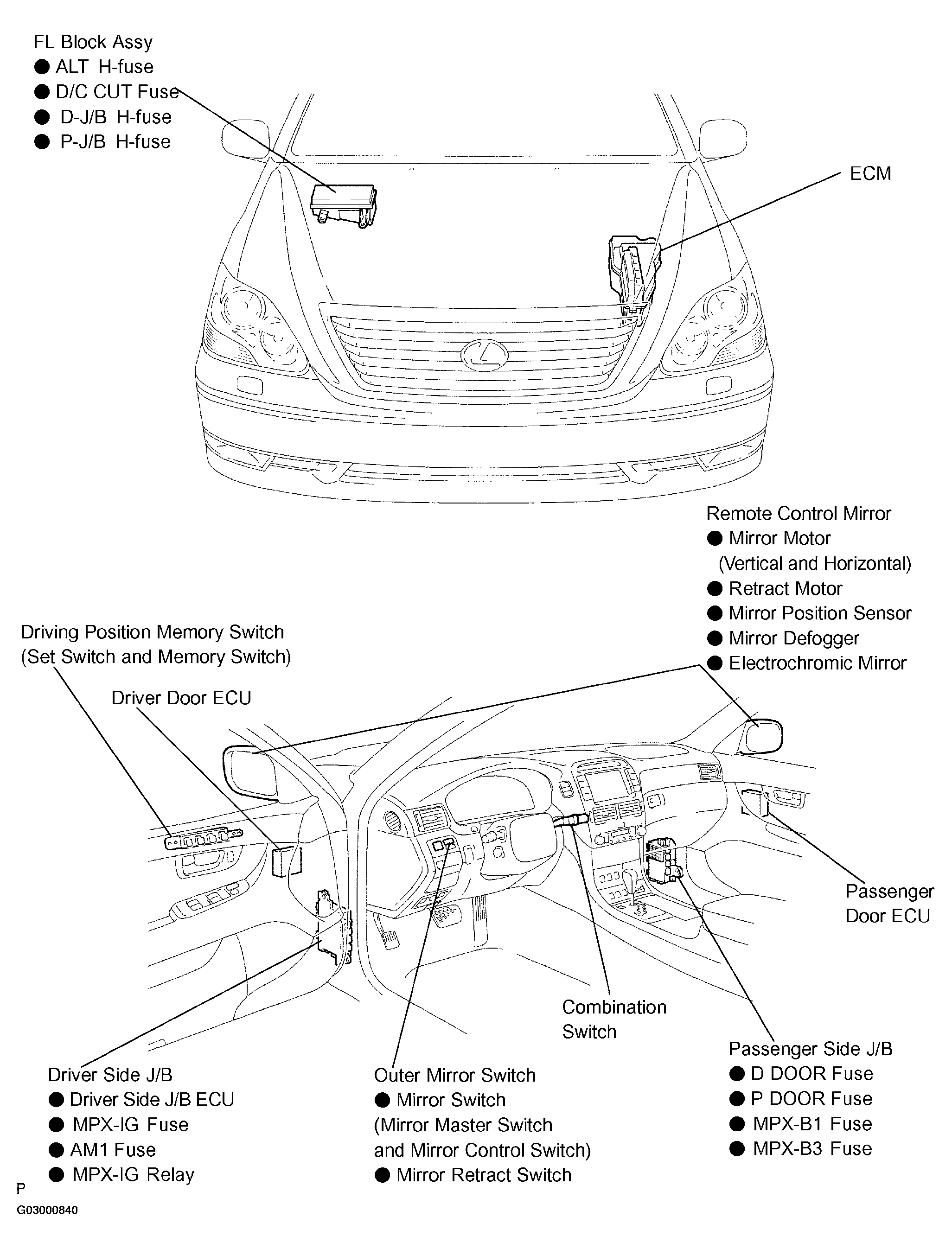

Fig 1: Identifying Power Mirror Control System (W/ Memory) Components Location (1 Of 2)
G03000840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Power Mirror Control System (W/ Memory) Components Location (2 Of 2)
G03000841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
