Mirror Defogger Circuit: Wiring Diagram

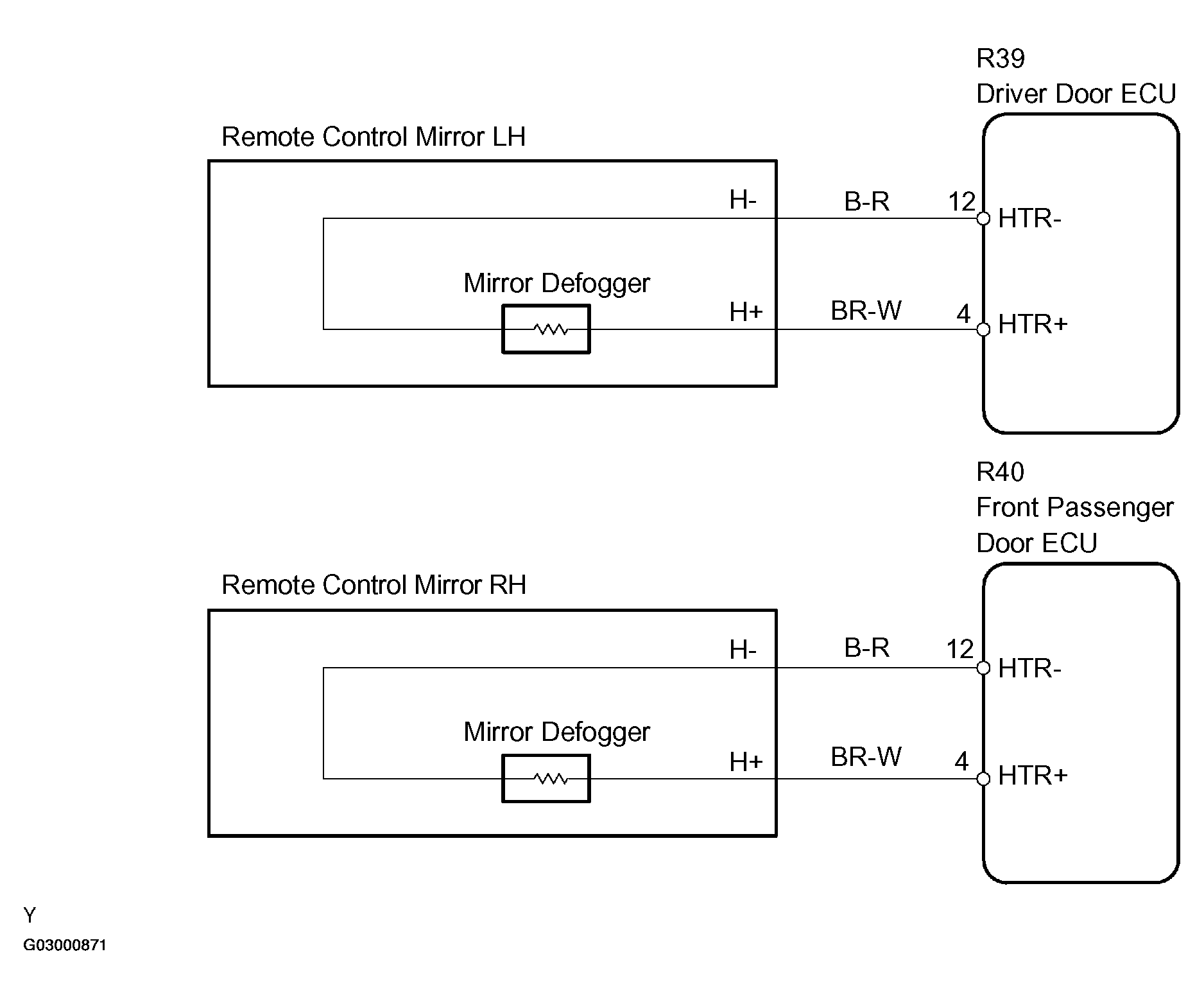

Fig 1: Mirror Defogger Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
