Power Mirror Control System (W/ Memory) - Diagnostics
›
Mirror Switch Circuit
›
Wiring Diagram
Mirror Switch Circuit: Wiring Diagram

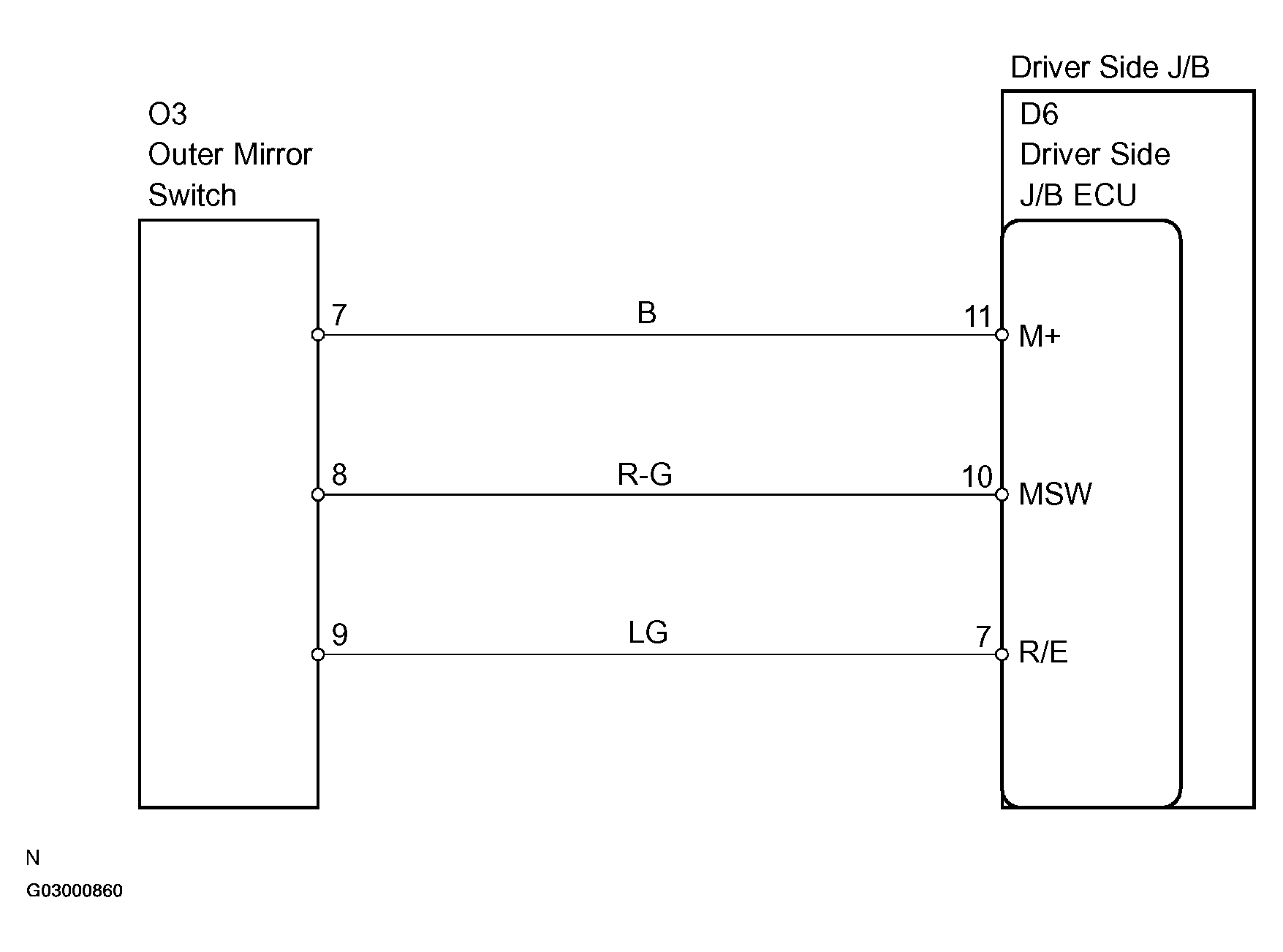

Fig 1: Mirror Switch Circuit Wiring Diagram
