Climate Control Does Not Operate (Blinking Pattern 3): Wiring Diagram

Fig 1: Climate Control Does Not Operate (Blinking Pattern 3) Wiring Diagram (1 Of 2)
G03001136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

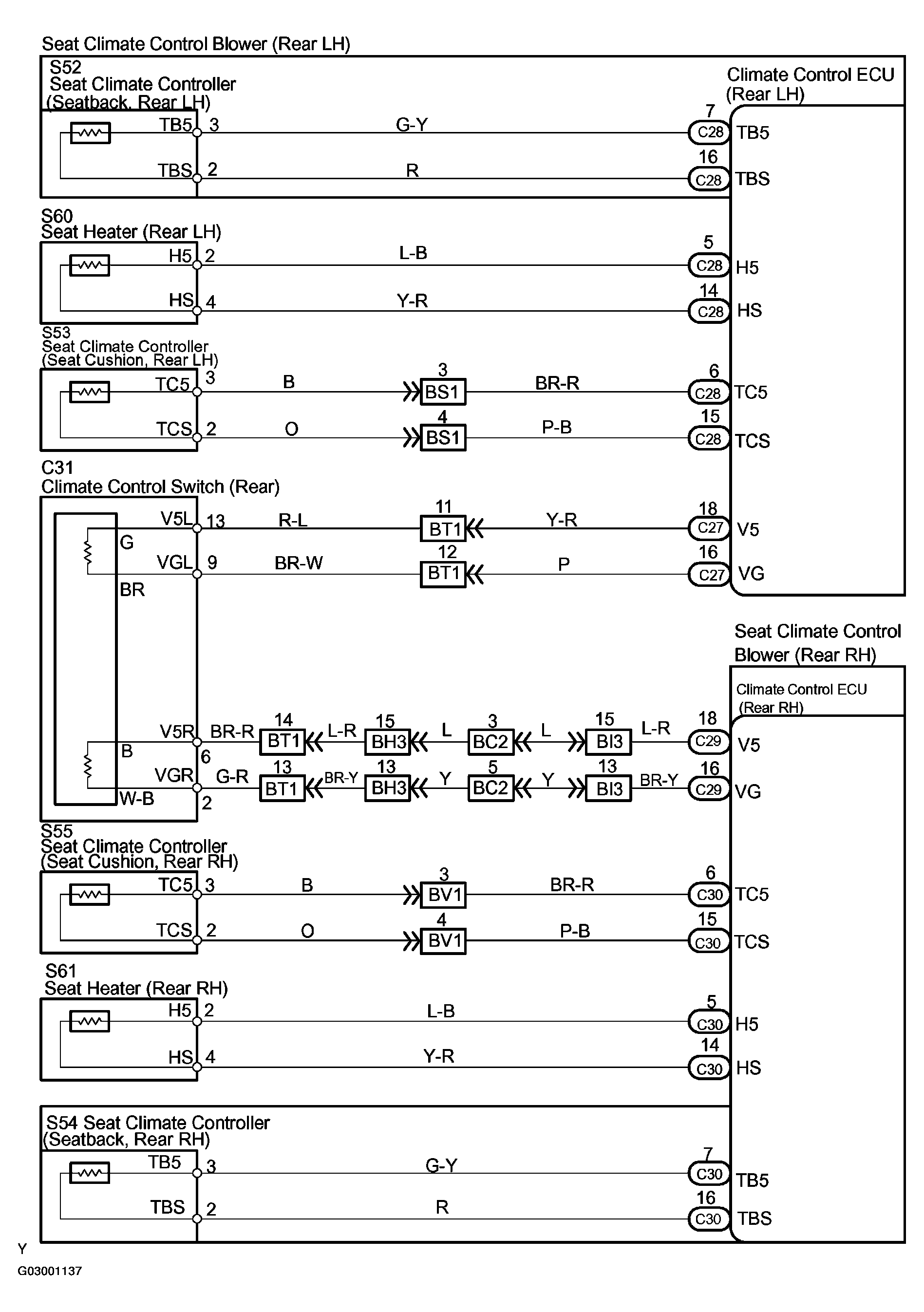

Fig 2: Climate Control Does Not Operate (Blinking Pattern 3) Wiring Diagram (2 Of 2)
G03001137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
