Climate Control Does Not Operate (Blinking Pattern 4): Wiring Diagram

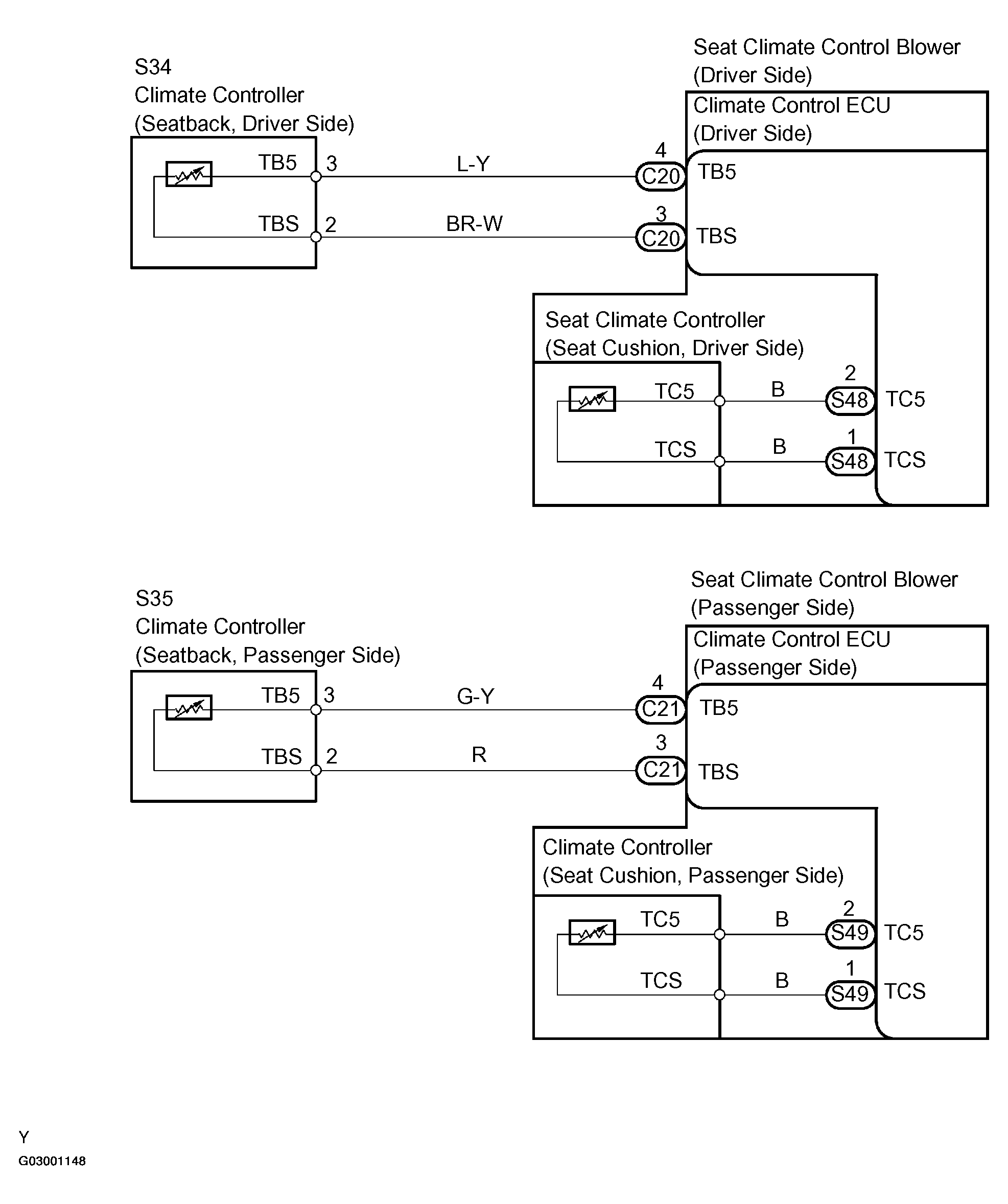

Fig 1: Climate Control Does Not Operate (Blinking Pattern 4) Wiring Diagram (1 Of 2)
G03001148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

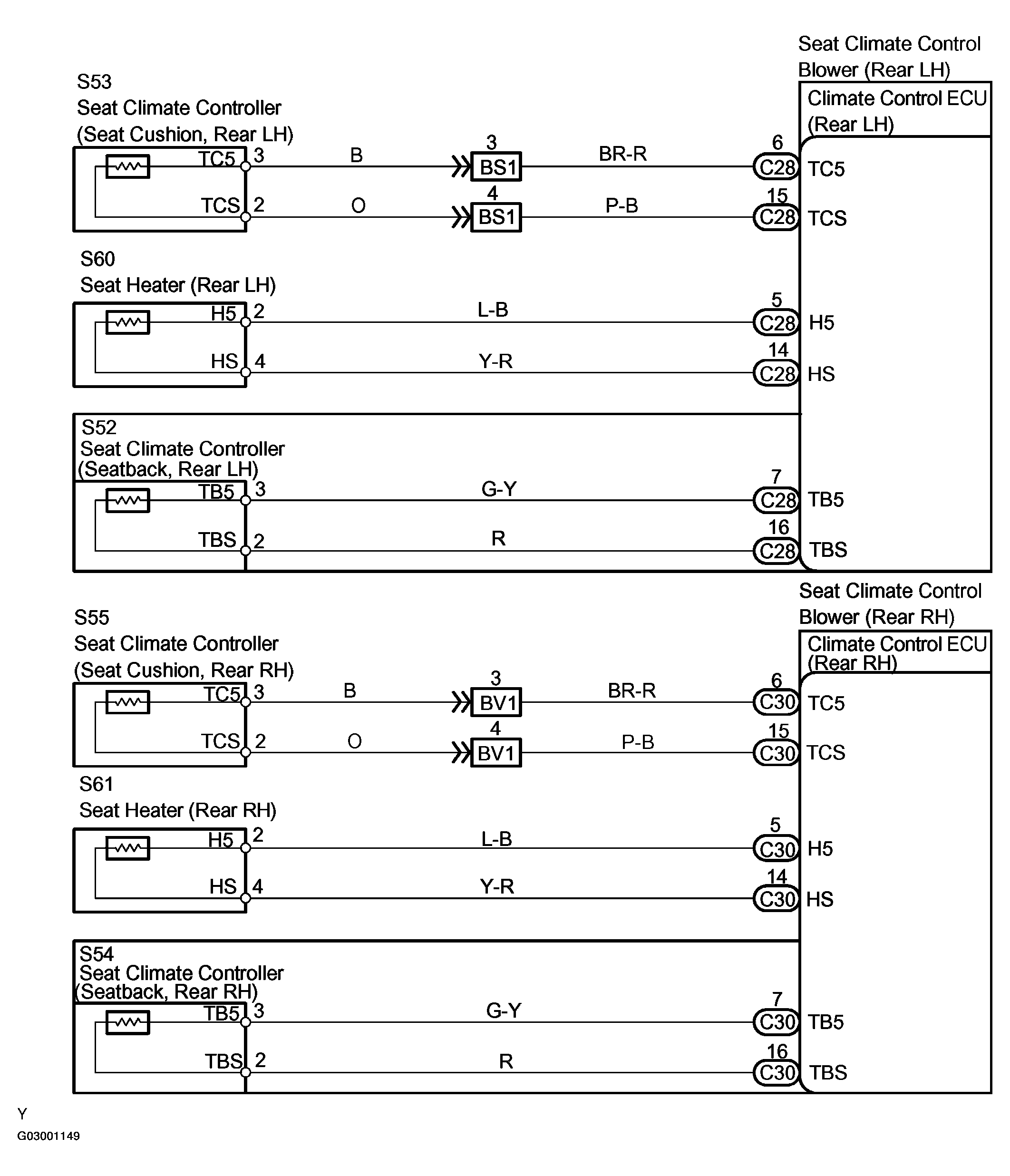

Fig 2: Climate Control Does Not Operate (Blinking Pattern 4) Wiring Diagram (2 Of 2)
G03001149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
