Front Power Seat Control System - Diagnostics: Location

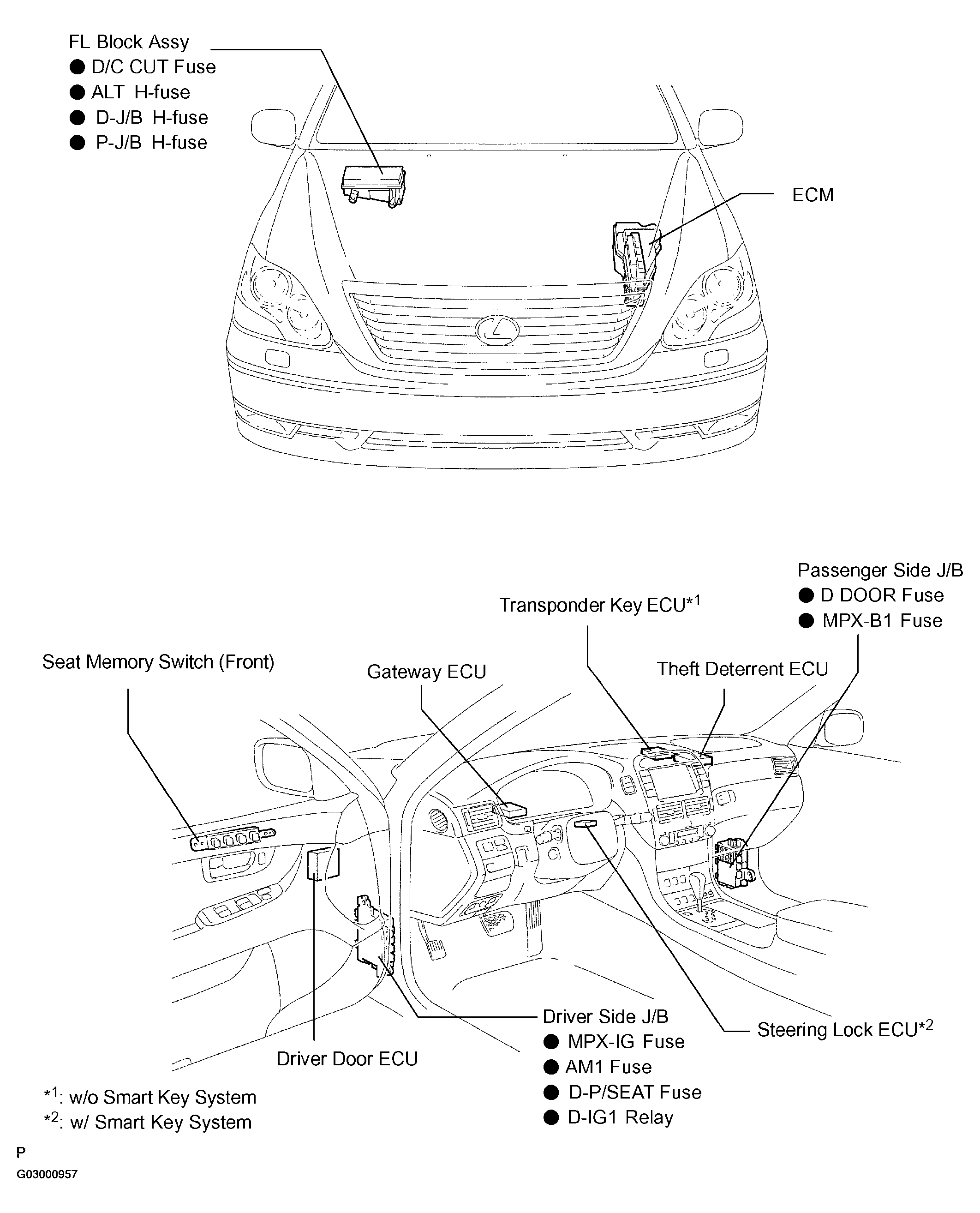

Fig 1: Locating Front Power Seat Control System Components (1 Of 2)
G03000957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

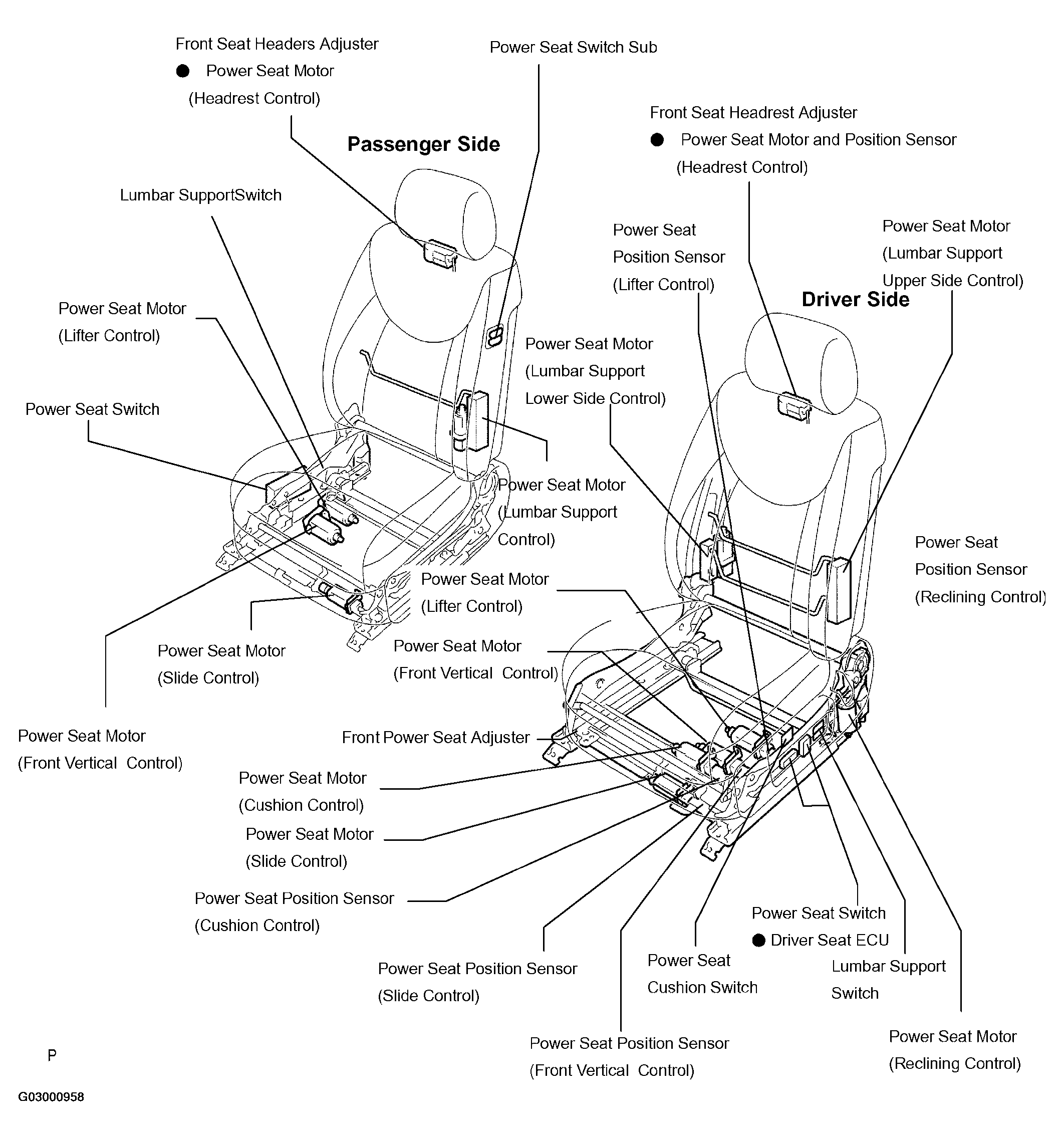

Fig 2: Locating Front Power Seat Control System Components (2 Of 2)
G03000958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
