Front Power Seat Control System - Diagnostics
›
Lumbar Support Switch Circuit
›
Wiring Diagram
Lumbar Support Switch Circuit: Wiring Diagram

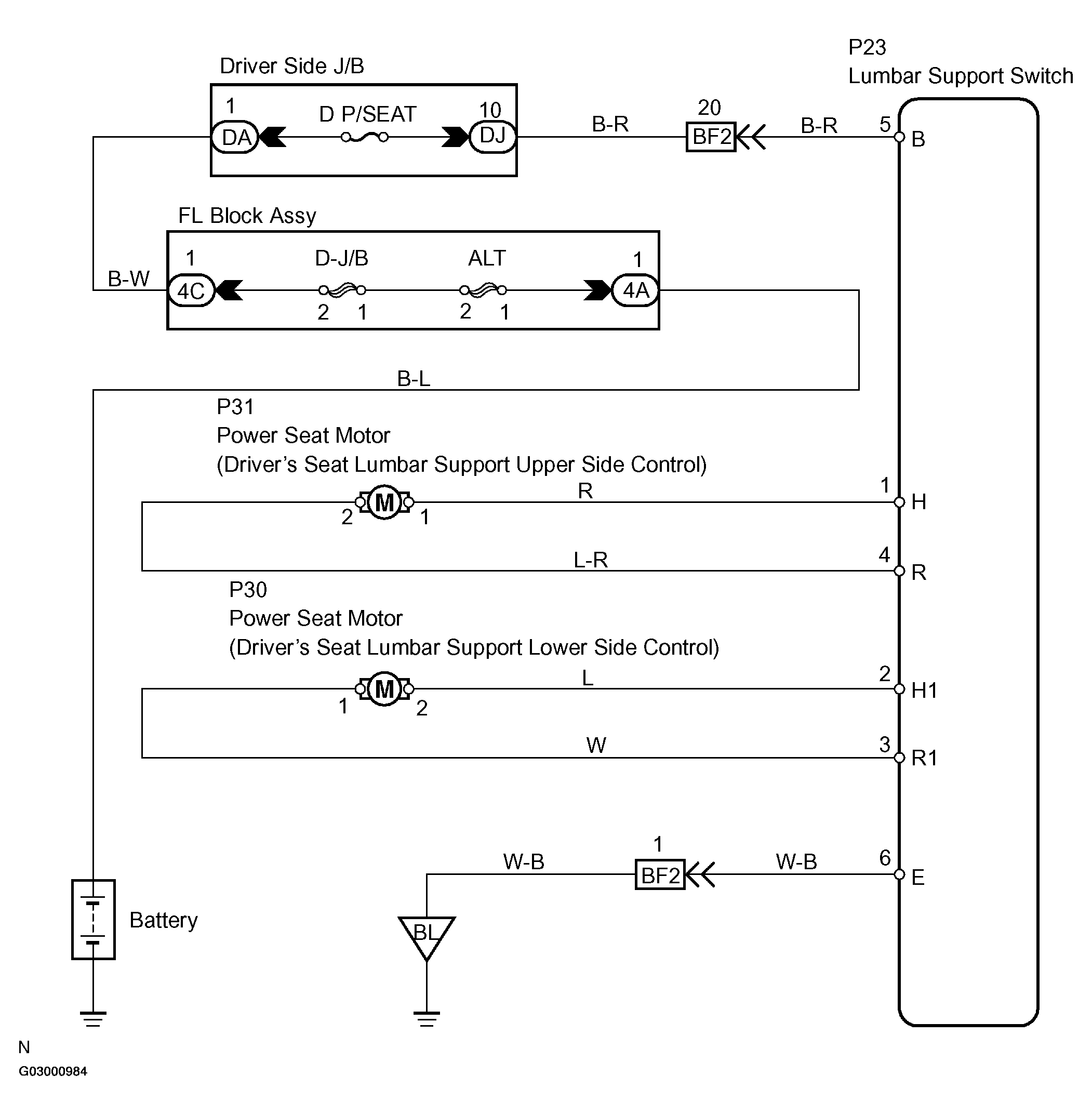

Fig 1: Lumbar Support Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
