Rear Power Seat Control System - Diagnostics: Location

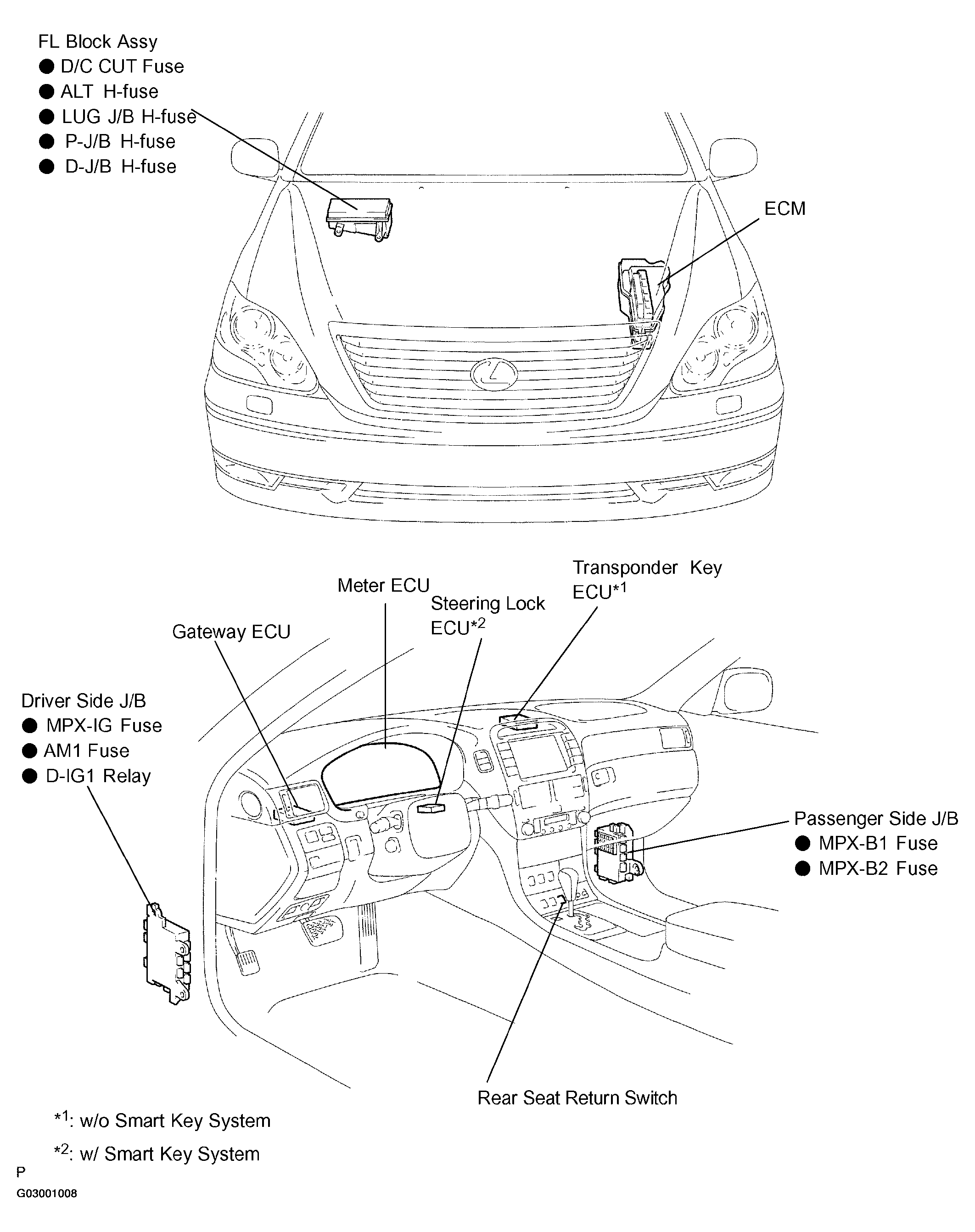

Fig 1: Locating Rear Power Seat Control System Components (1 Of 2)
G03001008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

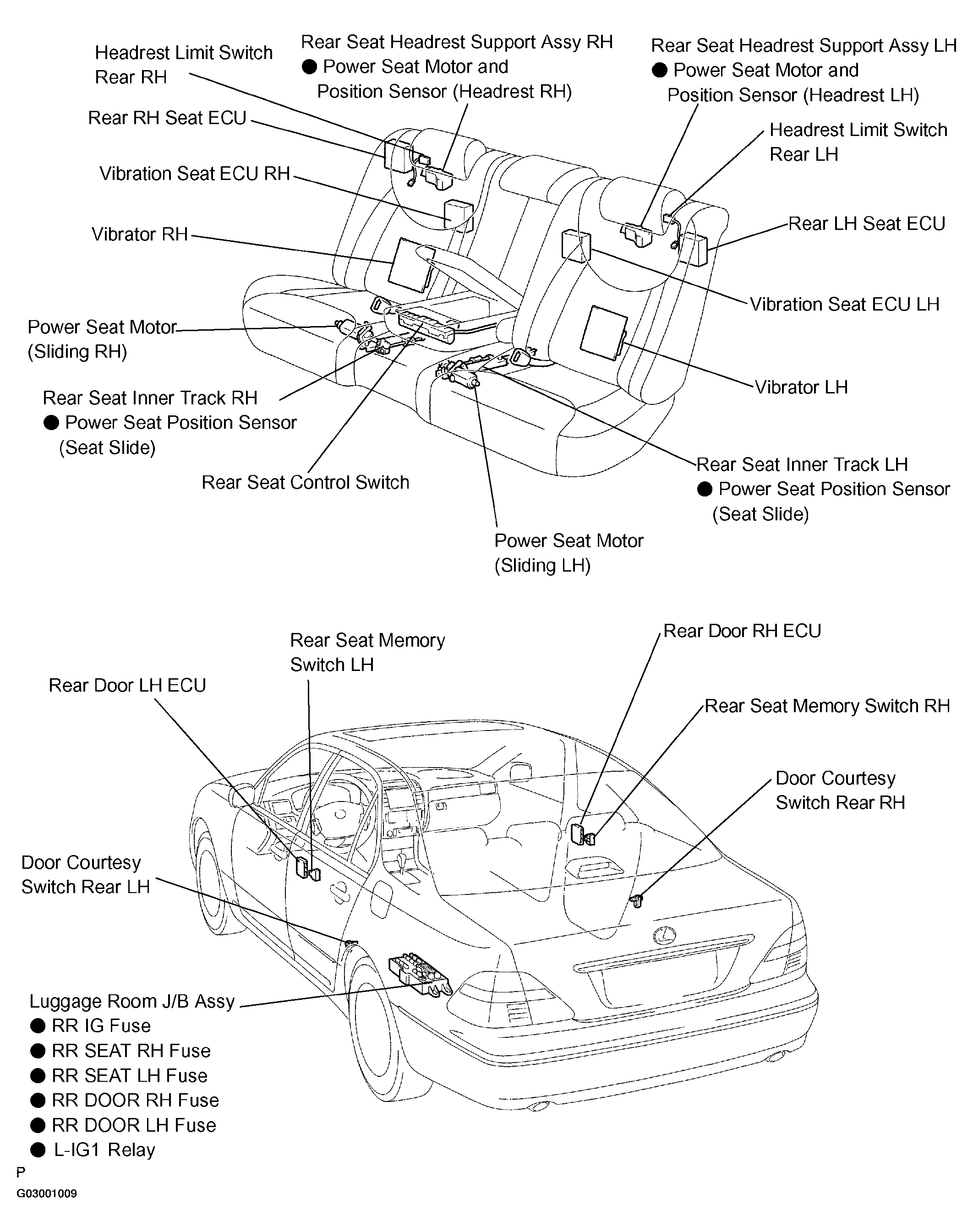

Fig 2: Locating Rear Power Seat Control System Components (2 Of 2)
G03001009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
