Rear Power Seat Control System - Diagnostics
›
Rear Seat Control Switch Power Source Circuit
›
Wiring Diagram
Rear Seat Control Switch Power Source Circuit: Wiring Diagram

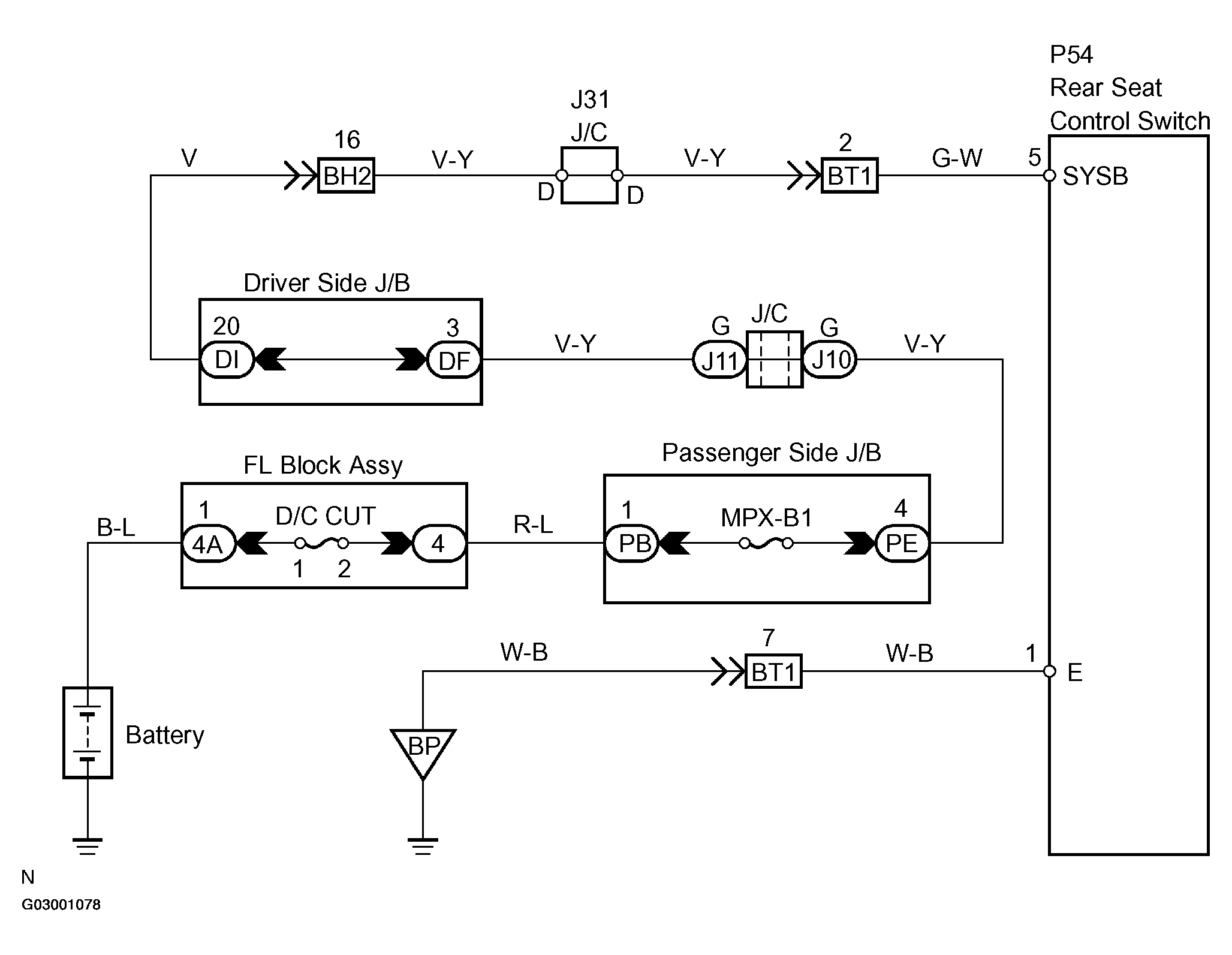

Fig 1: Rear Seat Control Switch Power Source - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
