System Diagram

  1. REAR POWER SEAT
    1. w/o Memory

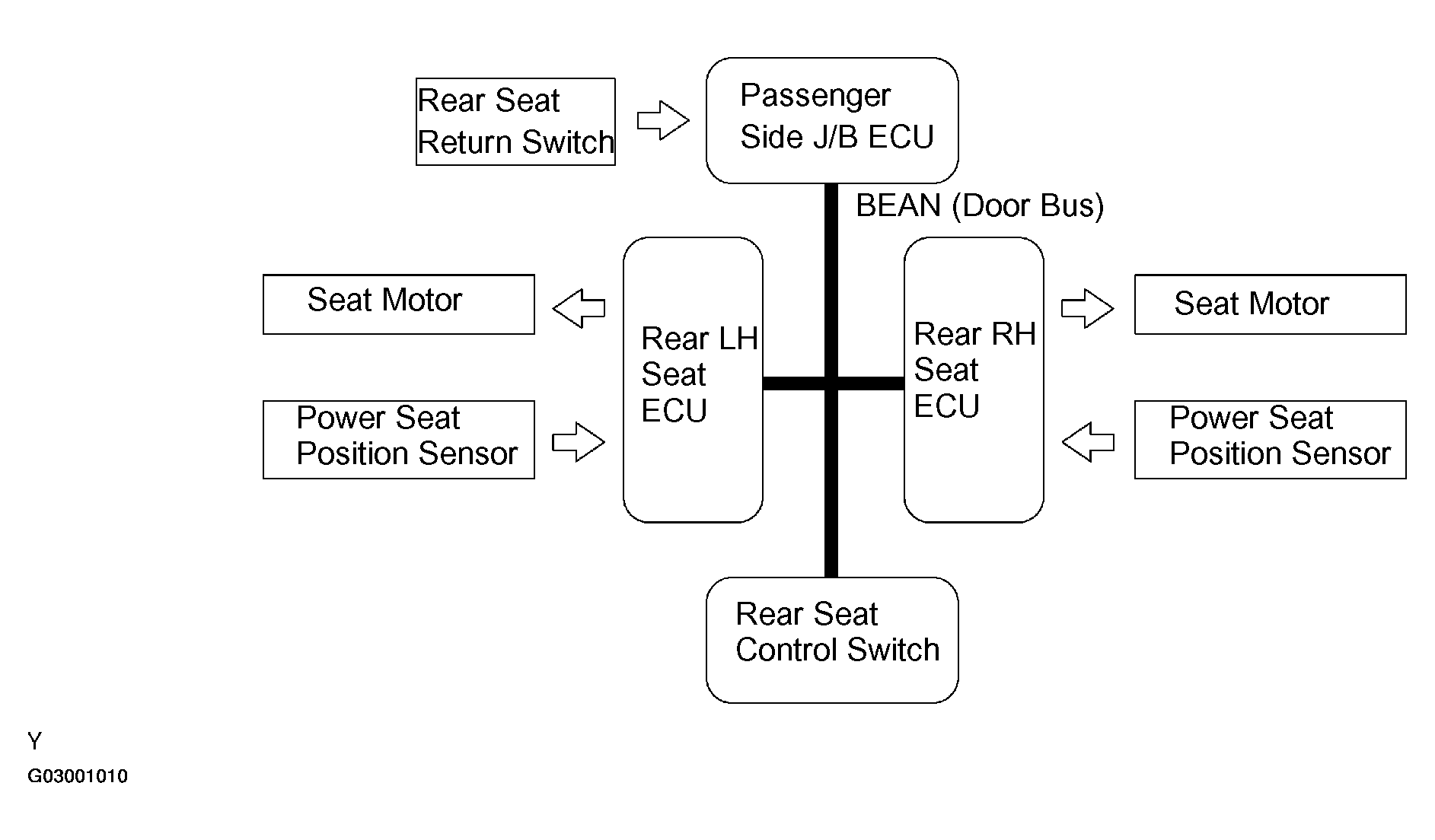

      Fig 1: Rear Power Seat System Diagram - W/O Memory
      G03001010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Communication Table

      COMMUNICATION

      Sender Receiver Signal Line
      Passenger Side J/B ECU Rear LH Seat ECU Rear seat return switch signal BEAN
      Passenger Side J/B ECU Rear RH Seat ECU Rear seat return switch signal BEAN
      Rear Seat Control Switch Rear LH Seat ECU RL seat activation command signal BEAN
      Rear Seat Control Switch Rear RH Seat ECU RR seat activation command signal BEAN
    2. w/ Memory

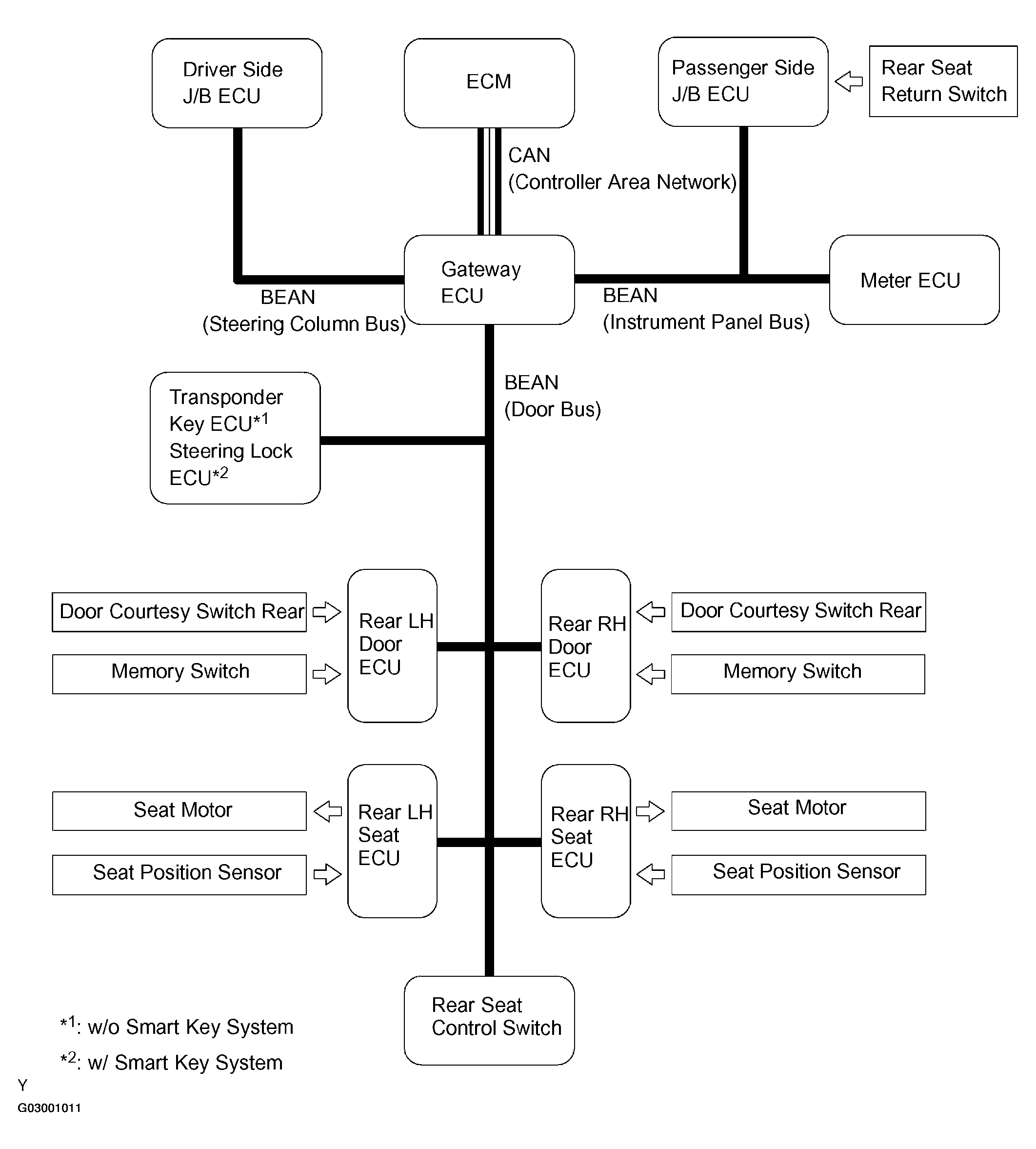

    Fig 2: Rear Power Seat System Diagram - W/ Memory
    G03001011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Communication Table

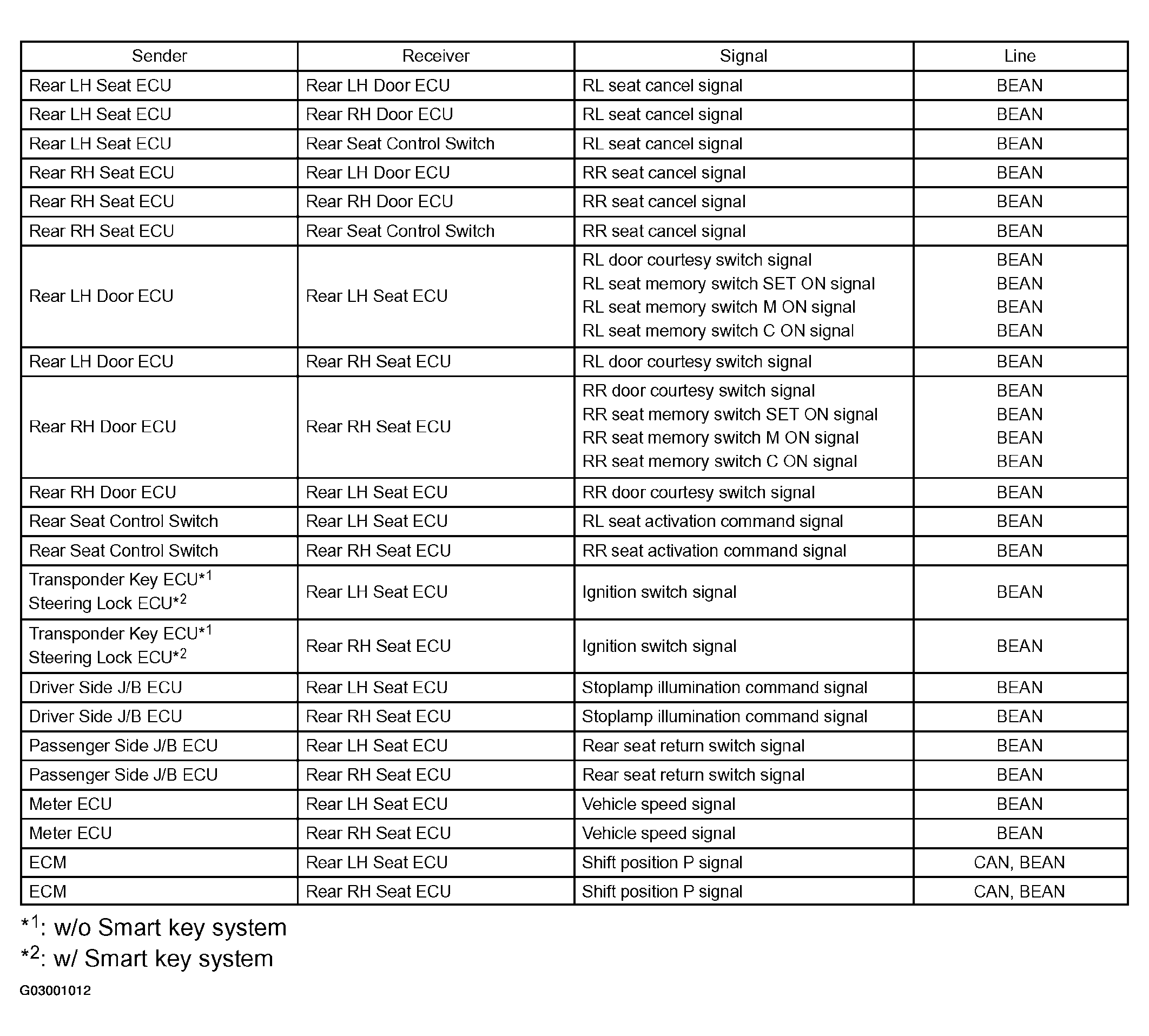

    Fig 3: Communication Table
    G03001012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    *1: w/o Smart key system

    *2: w/ Smart key system

  2. SEAT VIBRATOR

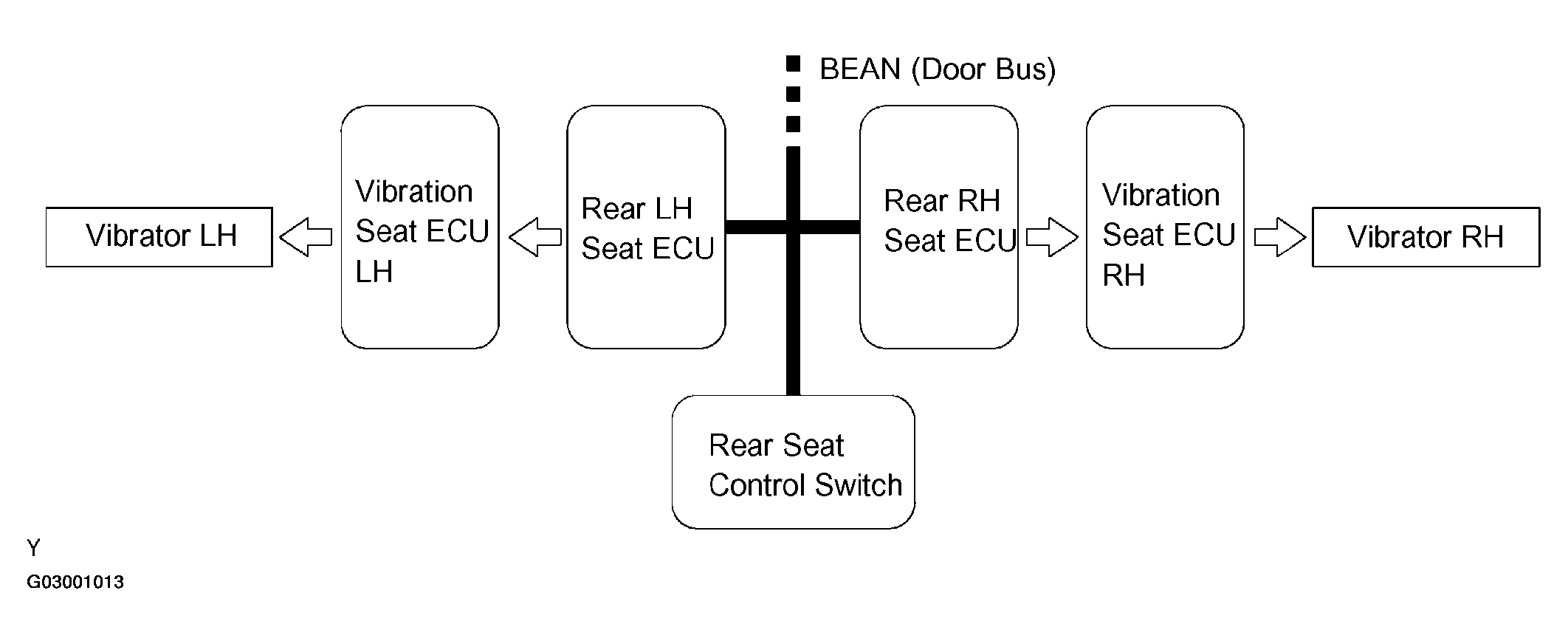

    Fig 4: Seat Vibrator System Diagram
    G03001013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Communication Table

    COMMUNICATION

    Sender Receiver Signal Line
    Rear Seat Control Switch Rear LH Seat ECU RL seat activation command signal BEAN
    Rear Seat Control Switch Rear RH Seat ECU RR seat activation command signal BEAN
