Sliding Roof/Convertible: Components

Fig 1: Exploded View Of Sliding Roof Components And Replacements (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

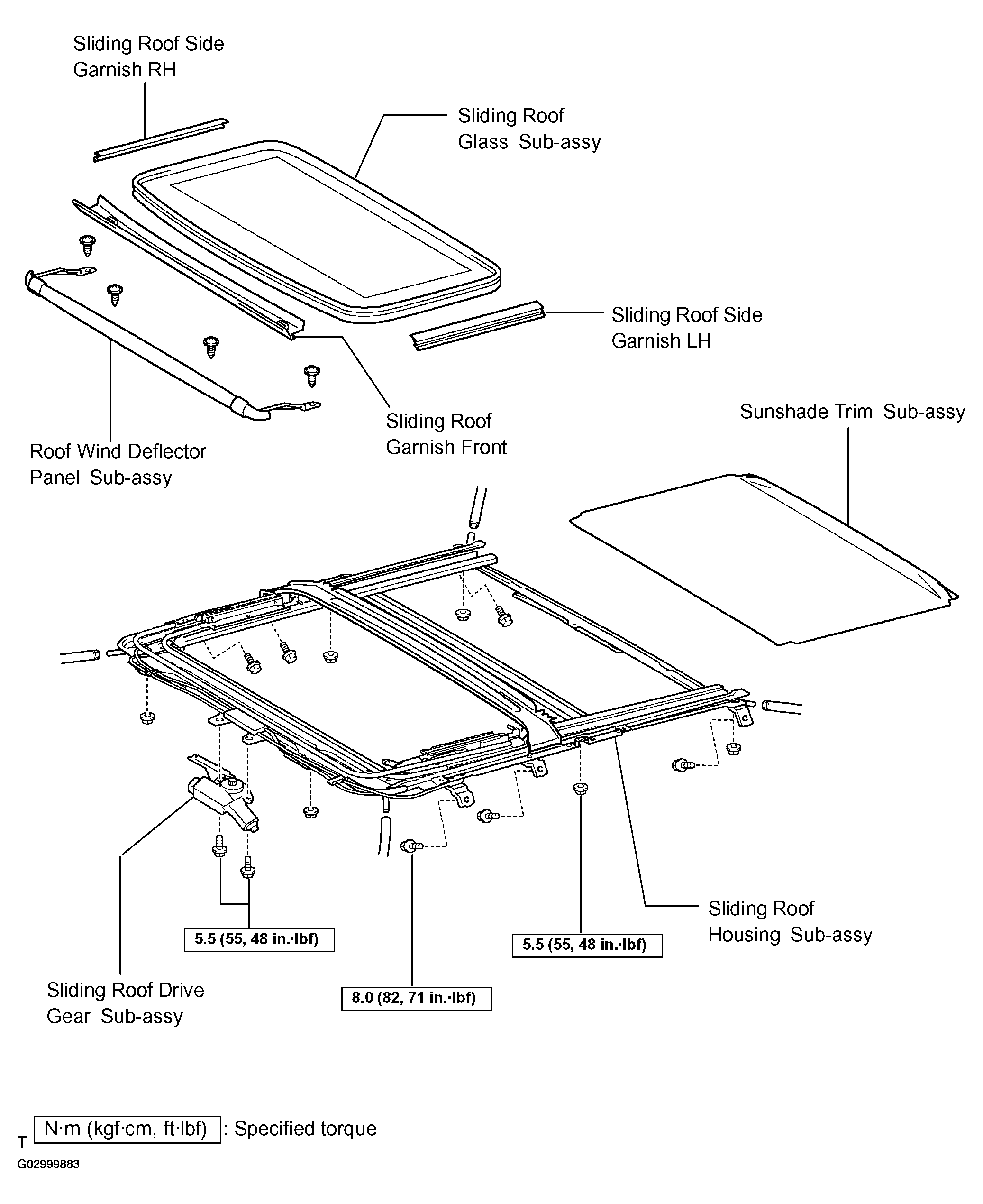

Fig 2: Exploded View Of Sliding Roof Components And Replacements (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Exploded View Of Sliding Roof Components And Replacements (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
