(Door / Hatch): Hood: Components

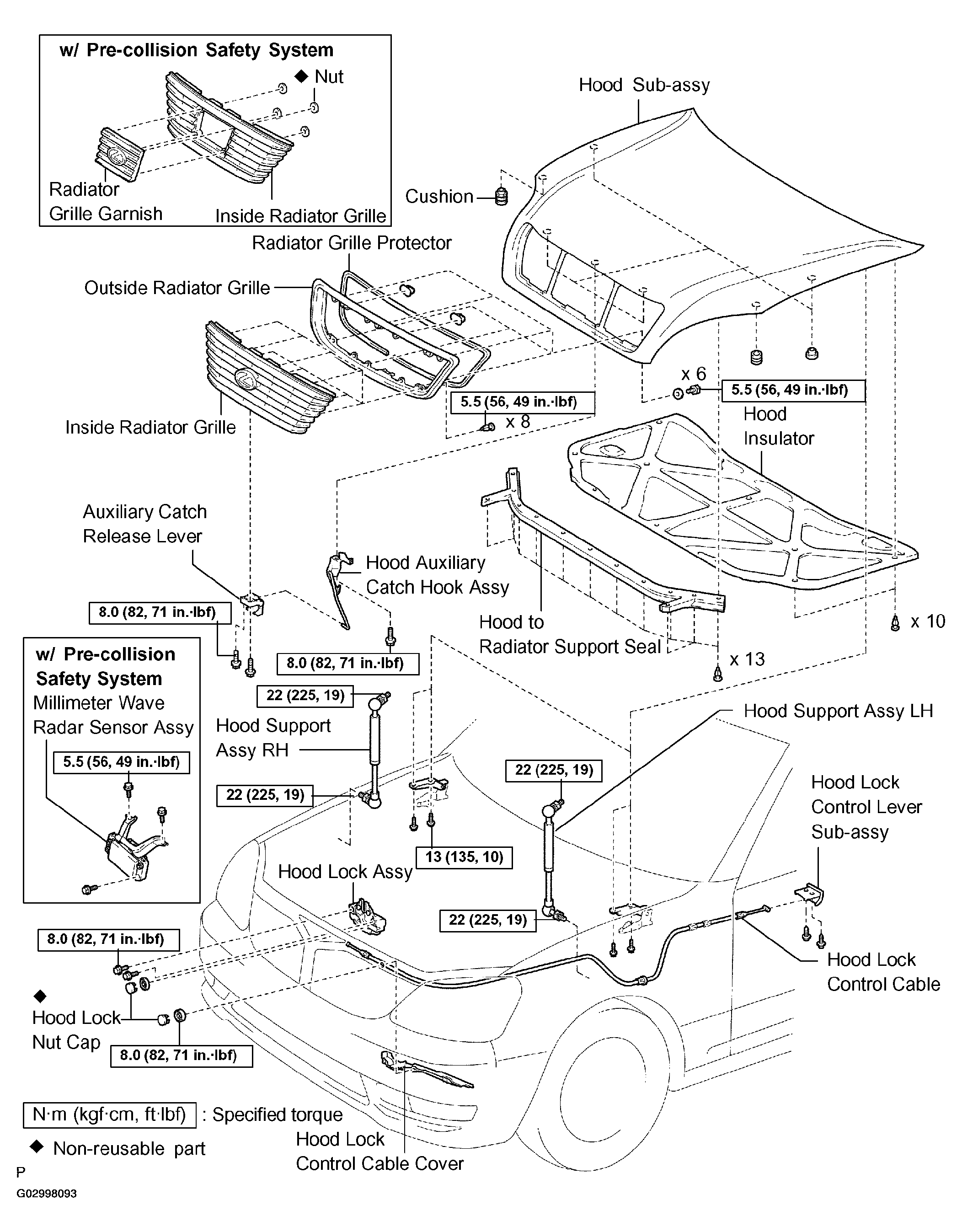

Fig 1: Identifying Hood Components

G02998093

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
