Power Window Control System - Diagnostics: Location

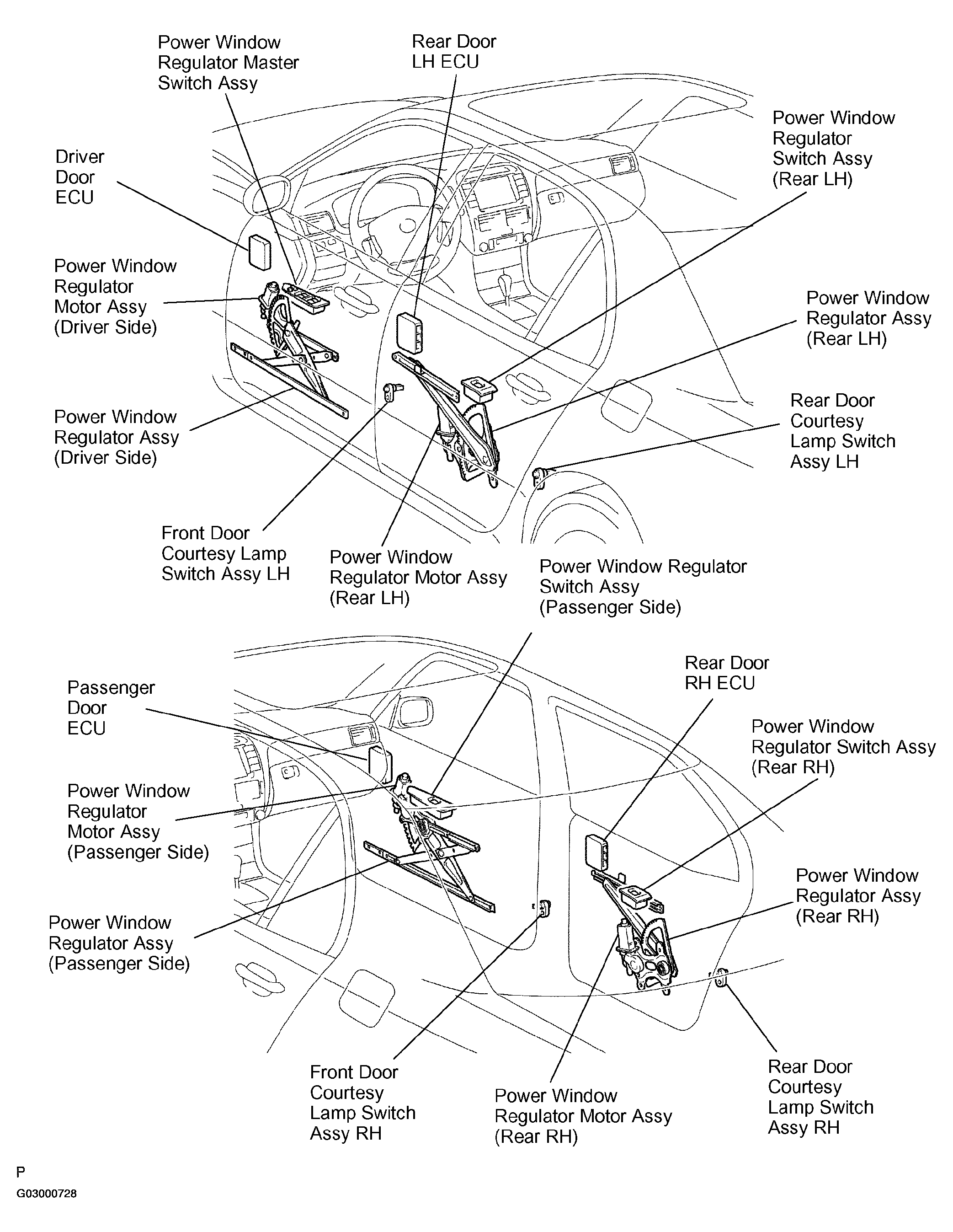

Fig 1: Identifying Power Window Control System Components Locations (1 Of 2)
G03000728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

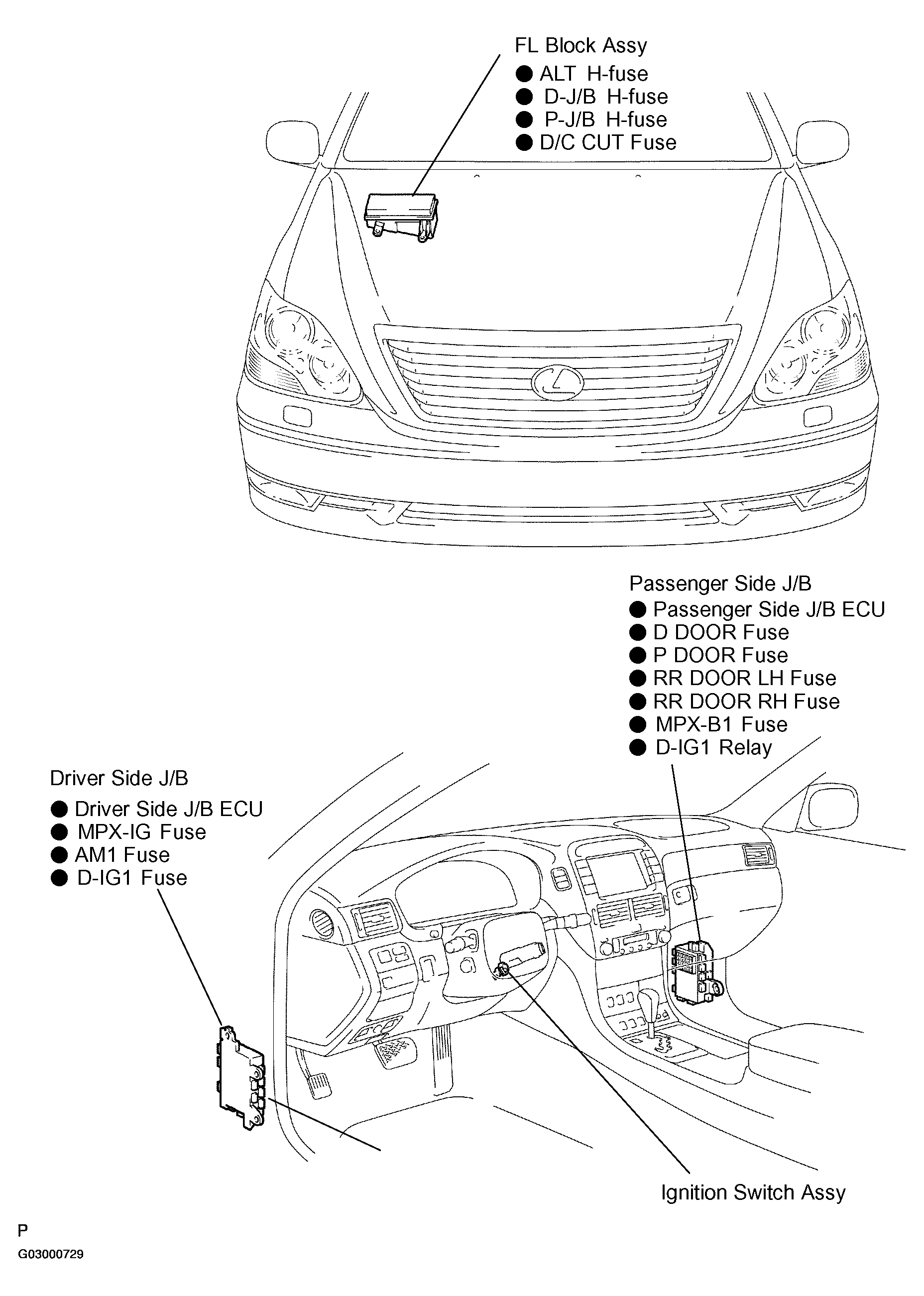

Fig 2: Identifying Power Window Control System Components Locations (2 Of 2)
G03000729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
