Power Window Control System - Diagnostics
›
Passenger Door Ecu Power Source Circuit
›
Wiring Diagram
Passenger Door Ecu Power Source Circuit: Wiring Diagram

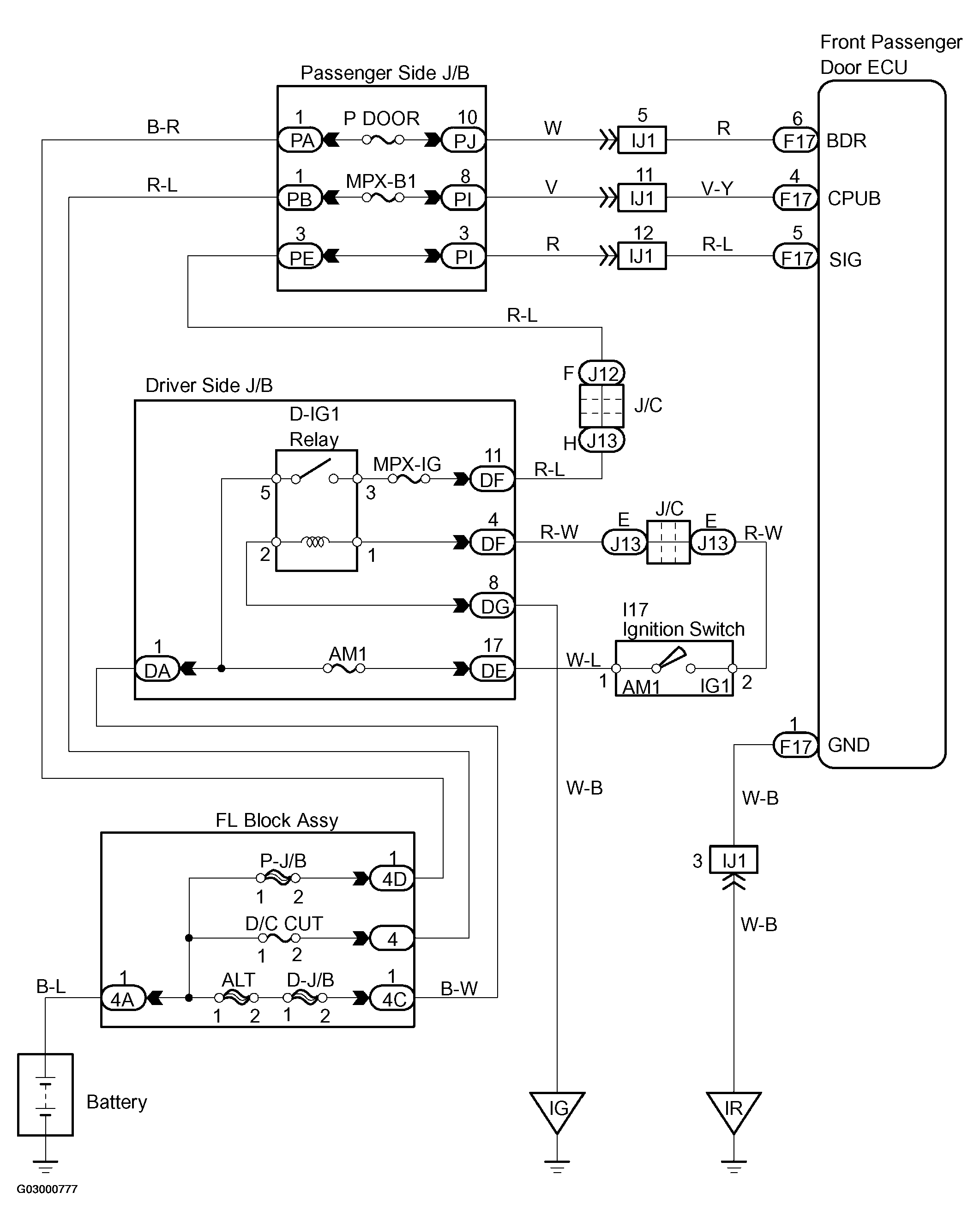

Fig 1: Passenger Door ECU Power Source Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
