Power Window Control System - Diagnostics
›
Power Window Motor Circuit (Rear LH)
›
Wiring Diagram
Power Window Motor Circuit (Rear LH): Wiring Diagram

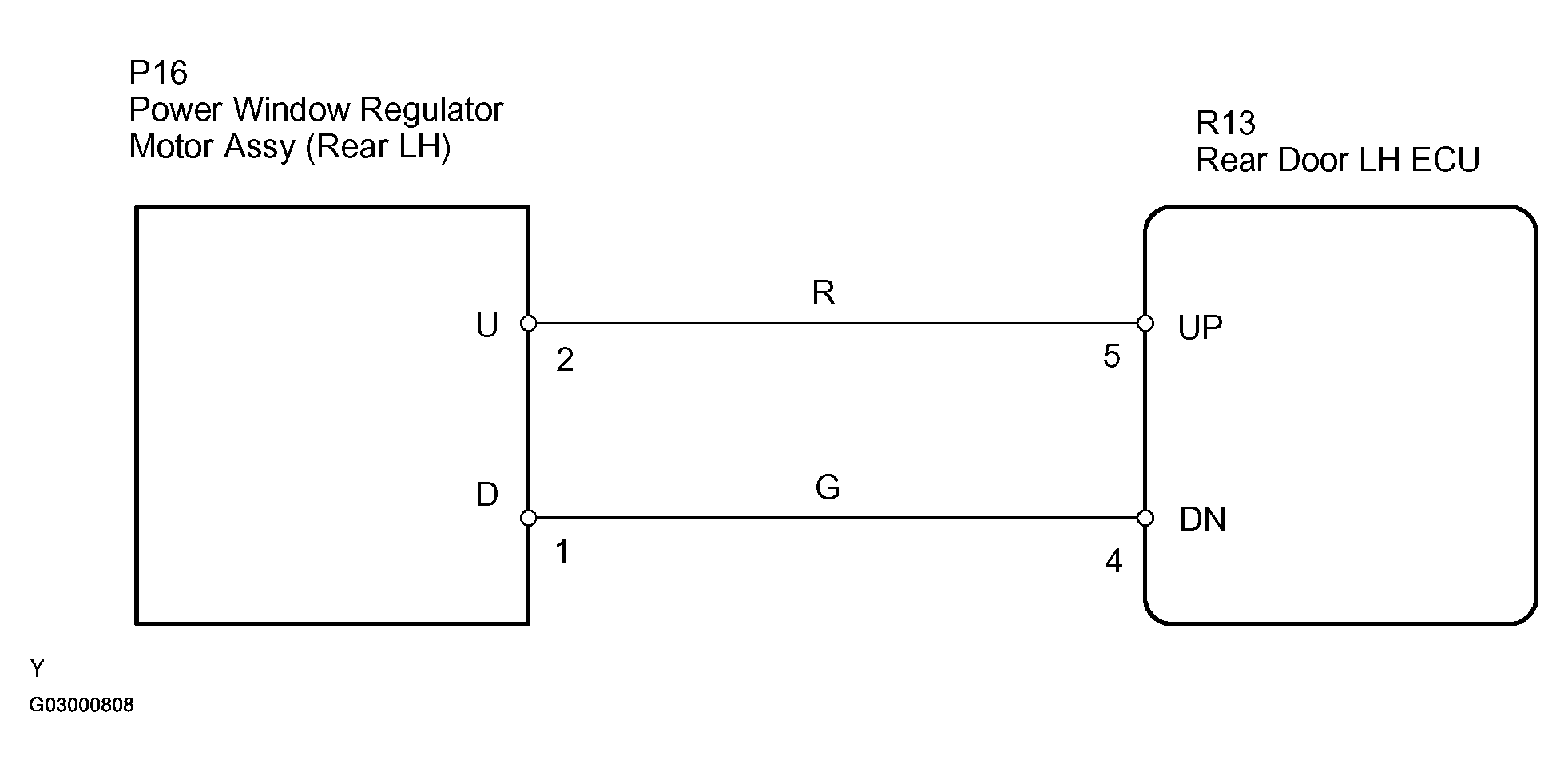

Fig 1: Power Window Motor Circuit Wiring Diagram (Rear LH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
