Power Window Control System - Diagnostics
›
Window Lock Signal Circuit
›
Wiring Diagram
Window Lock Signal Circuit: Wiring Diagram

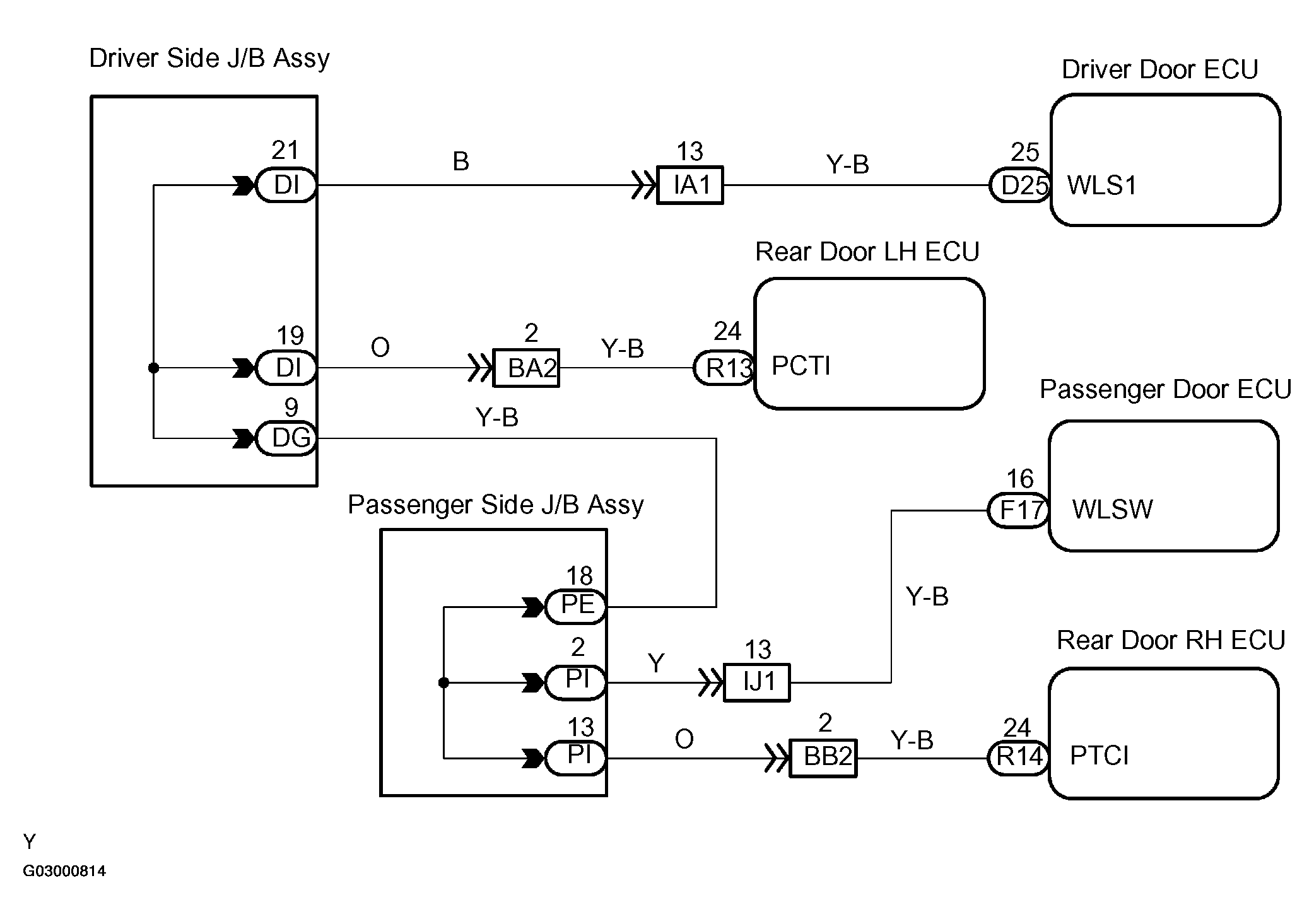

Fig 1: Window Lock Signal Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
