Back Window Glass: Components

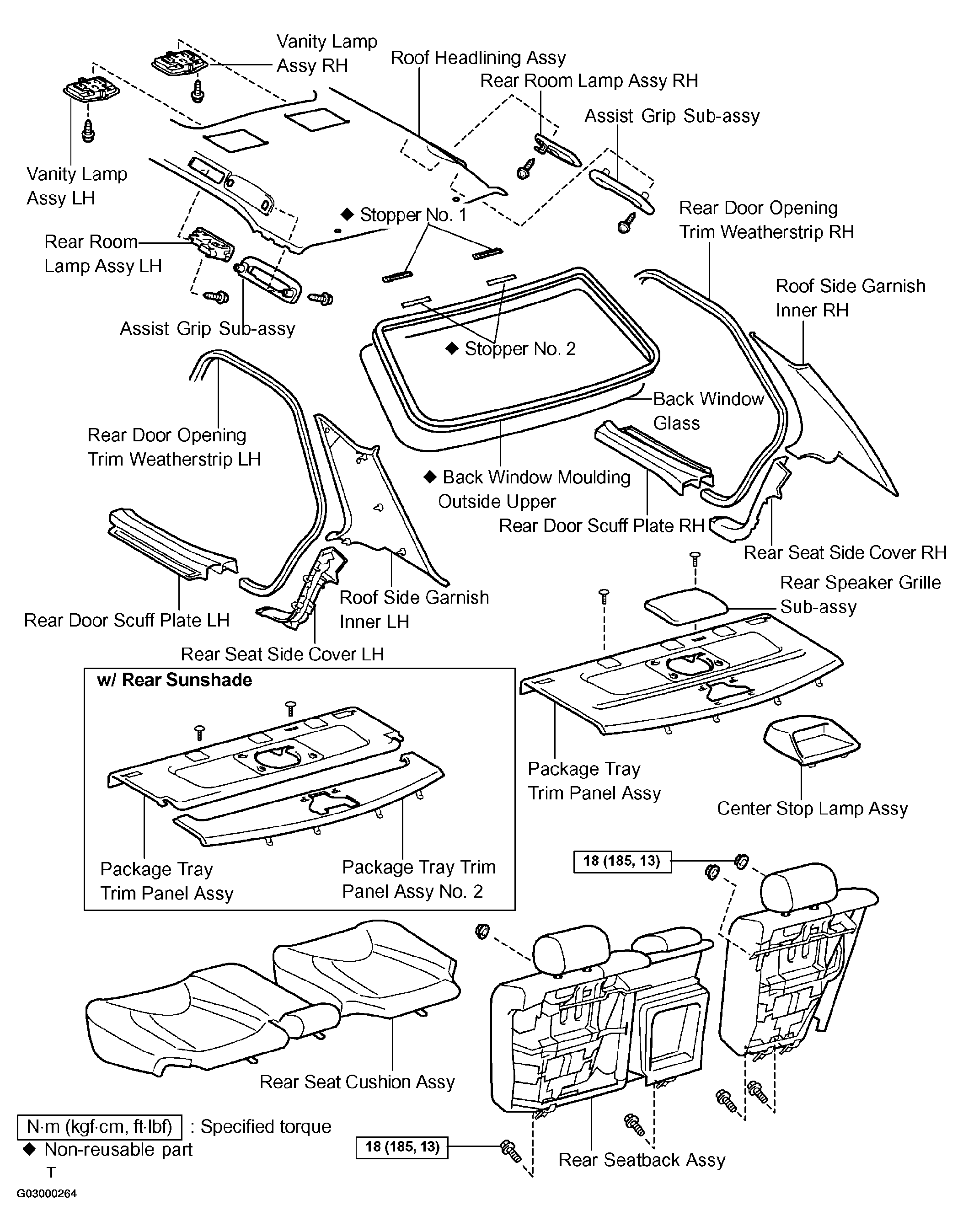

Fig 1: Identifying Back Window Glass Components And Replacements
G03000264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
