Windshield Glass: Components

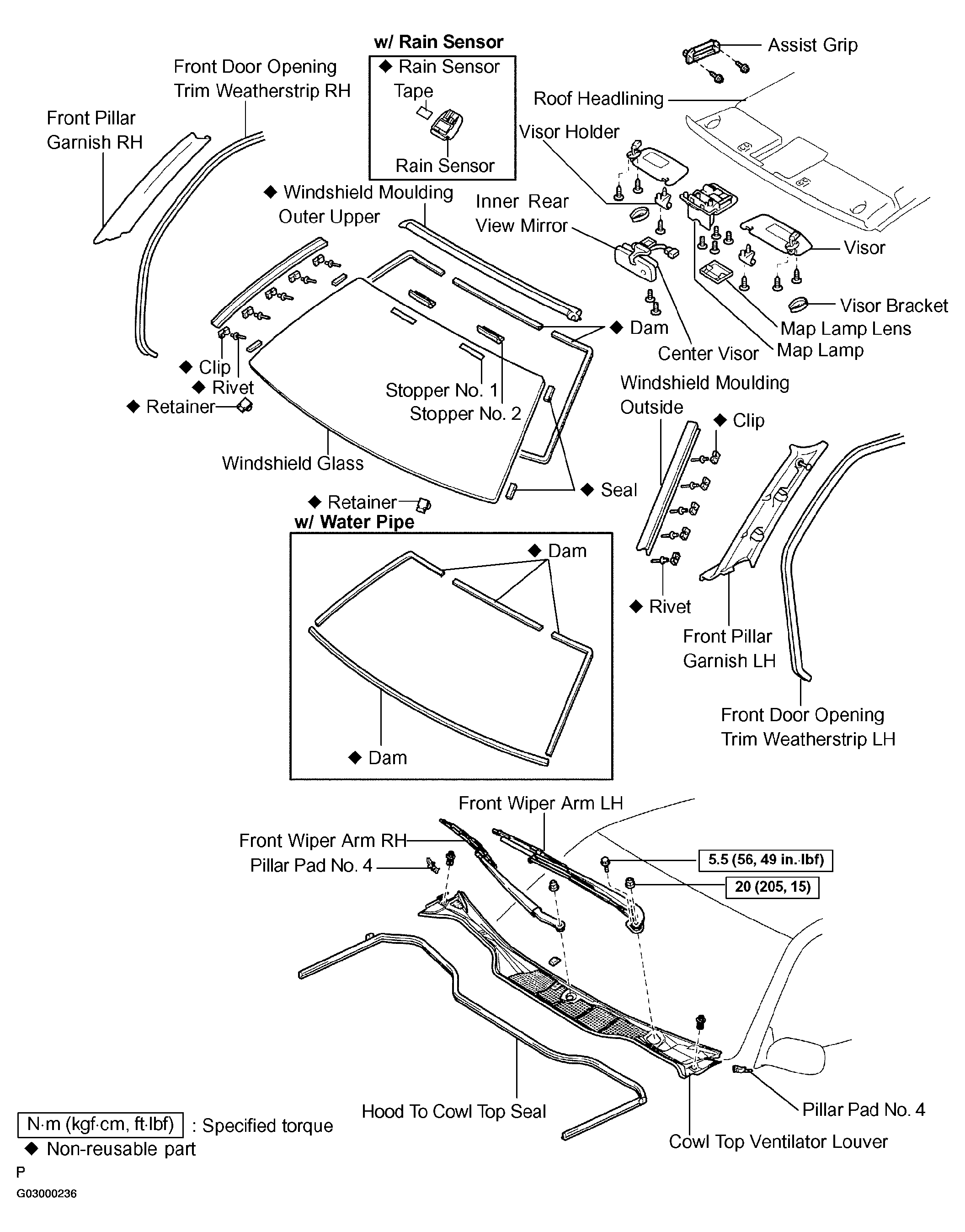

Fig 1: Identifying Windshield Glass Components And Replacements

G03000236

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
