Starting System: Location

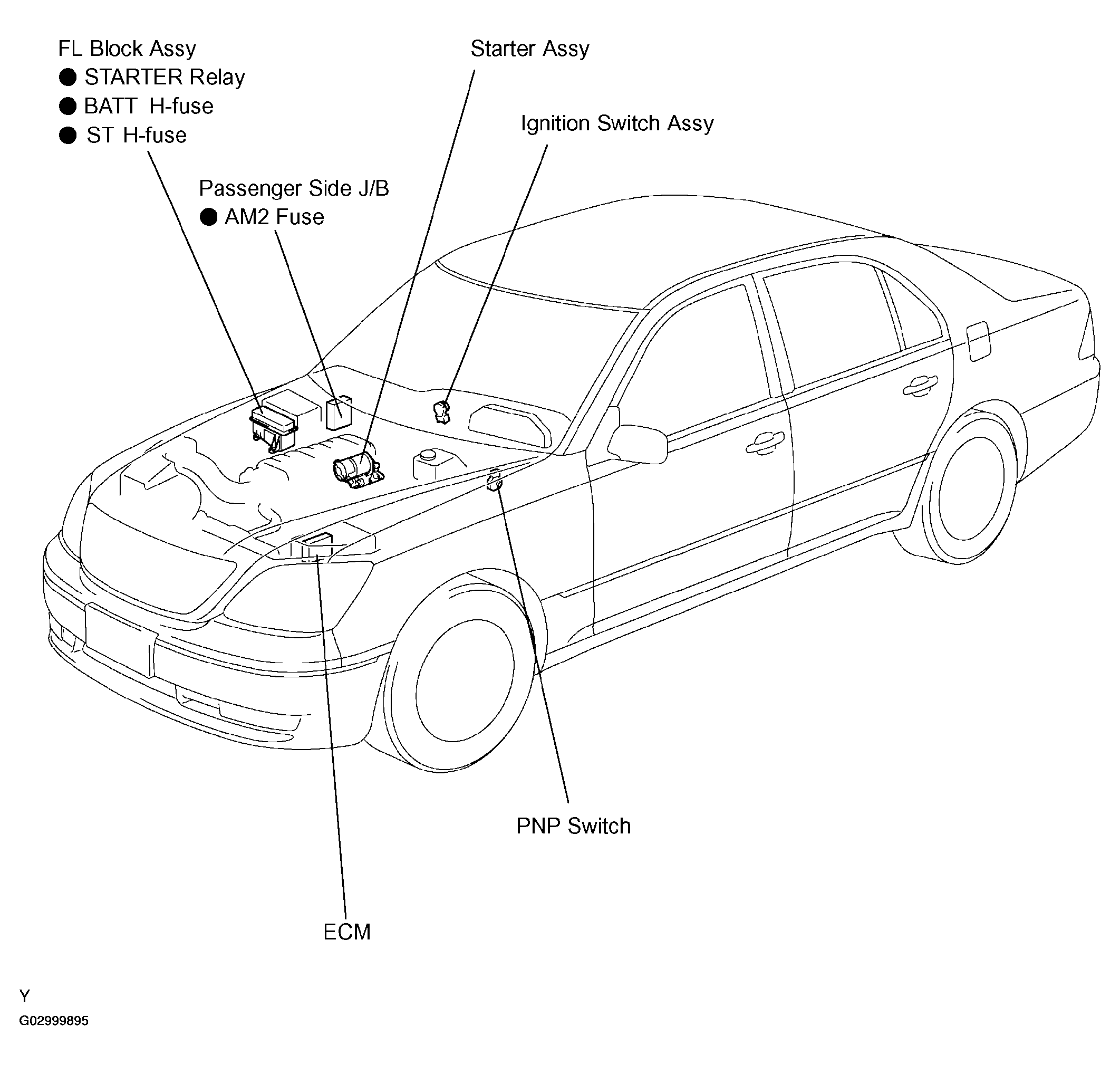

Fig 1: Identifying Starting System Components & Replacement Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
