Passenger Side Junction Block
NOTE:

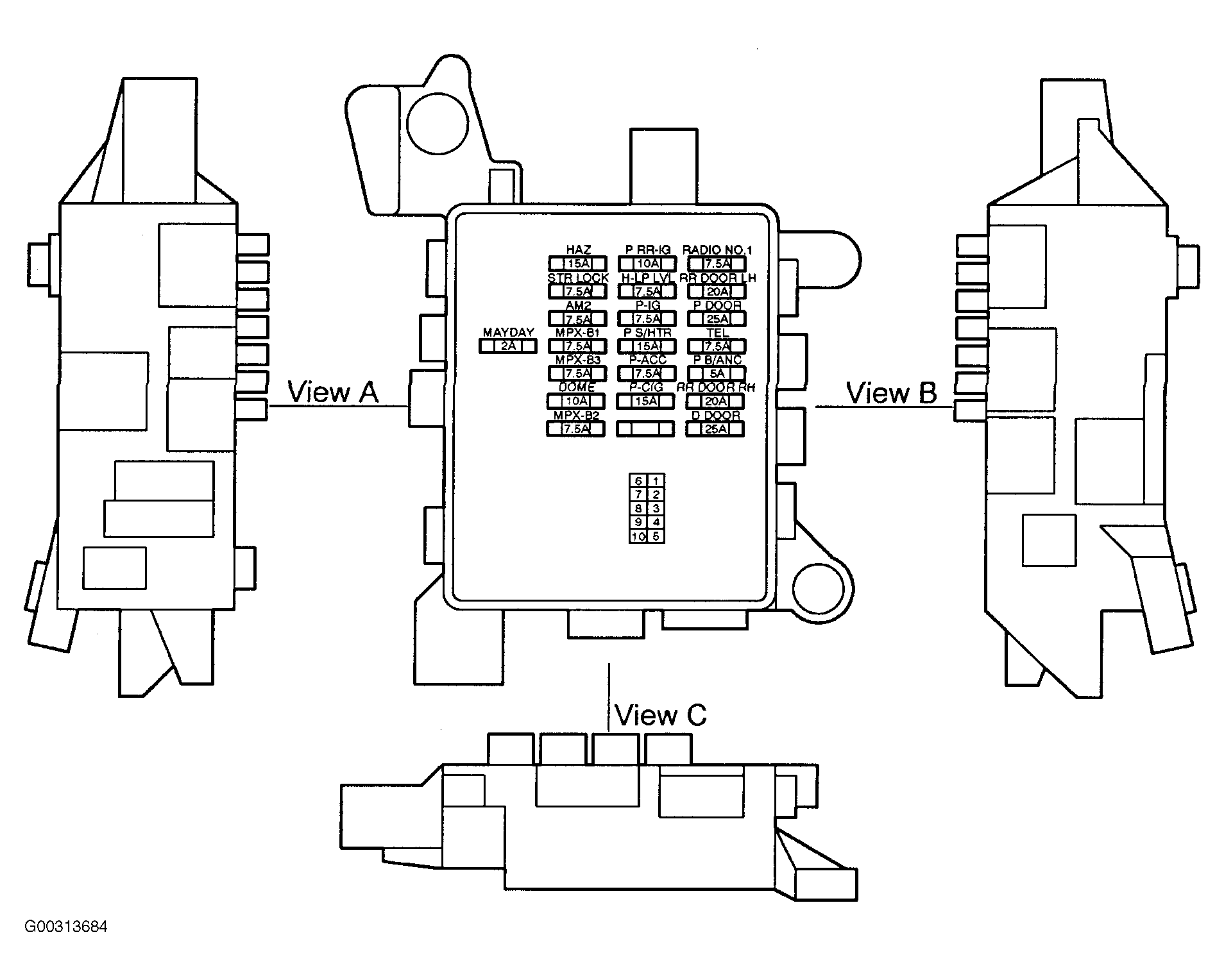

Passenger side junction block is located at right side of instrument panel, see Figure.
PASSENGER SIDE JUNCTION BLOCK FUSE IDENTIFICATION LEGEND (1 OF 2)
| Fuse | System | |
|---|---|---|
| 5A | P B/ANC | Multiplex Communication System (BEAN - Instrument Panel Bus) Power Shoulder Belt Anchorage |
| 7.5A | AM2 | Engine Control Engine Immobilizer System (w/ Smart Key System) and Steering Lock System Engine Immobilizer System (w/o Smart Key System) SRS Starting and Ignition |
| 7.5A | H-LP LVL | Adaptive Front-Lighting System |
| 7.5A | MPX-B1 | Door Lock Control and Door Closer (w/o Smart Key System) Engine Immobilizer System (w/ Smart Key System) and Steering Lock System Engine Immobilizer System (w/o Smart Key System) Mirror Heater Multiplex Communication System (BEAN - Door Bus) Power Seat (Driver's Seat) Power Seat (Rear Passenger's Seat) Power Shoulder Belt Anchorage Power Window Remote Control Mirror Smart Key System, Theft Deterrent, Key Reminder, Door Lock Control, Door Closer and Wireless Door Lock Control (w/ Smart Key System) Theft Deterrent (w/o Smart Key System) Vibration Seat Wireless Door Lock Control (w/o Smart Key System) |
| 7.5A | MPX-B2 | Adaptive Front-Lighting System Audio System Automatic Air Conditioning (Front) Charging Combination Meter Cruise Control Dynamic Radar/Laser Cruise Control System Electronic Modulated Air Suspension Electronically Controlled Transmission and A/T Indicator Engine Control Front Fog Light Headlight Illumination Interior Light Key Reminder (w/o Smart Key System) and Seat Belt Warning LEXUS Navigation System, LEXUS Parking Assist (Rear View Monitor) and Clock (w/ LEXUS Navigation System) LEXUS Parking Assist (Clearance Sonar) Luggage Compartment Door Opener and Closer Moon Roof Multiplex Communication System (BEAN - Instrument Panel Bus) Multiplex Communication System (BEAN - Steering Column Bus) Multiplex Communication System (BEAN Bus) PPS Pre-Collision Safety System Rear Air Conditioning Smart Key System, Theft Deterrent, Key Reminder, Door Lock Control, Door Closer and Wireless Door Lock Control (w/ Smart Key System) SRS Stop Light Taillight VSC and Tire Pressure Warning System Wiper and Washer |
| 7.5A | MPX-B3 | Adaptive Front-Lighting System Automatic Light Control Front Fog Light Fuel Lid Opener Headlight Illumination Light Auto Turn Off System Luggage Compartment Door Opener and Closer Multiplex Communication System (BEAN - Instrument Panel Bus) Multiplex Communication System (BEAN - Steering Column Bus) Power Tilt and Power Telescopic Rear Air Conditioning Remote Control Mirror Smart Key System, Theft Deterrent, Key Reminder, Door Lock Control, Door Closer and Wireless Door Lock Control (w/ Smart Key System) Taillight Turn Signal and Hazard Warning Light Wiper and Washer |
| 7.5A | P-ACC | Audio System Automatic Air Conditioning (Front) Clock (w/o LEXUS Navigation System) LEXUS Navigation System, LEXUS Parking Assist (Rear View Monitor) and Clock (w/ LEXUS Navigation System Rear Air Conditioning |
| 7.5A | P-IG | Automatic Air Conditioning (Front) Automatic Glare-Resistant EC Mirror Climate Control Seat (Front) Clock (w/o LEXUS Navigation System) Electric Tension Reducer Key Reminder (w/o Smart Key System) and Seat Belt Warning LEXUS Navigation System, LEXUS Parking Assist (Rear View Monitor) and Clock (w/ LEXUS Navigation System Moon Roof Multiplex Communication System (BEAN - Door Bus) Multiplex Communication System (BEAN - Instrument Panel Bus) Rear Air Conditioning Wiper and Washer |
| 7.5A | RADIO NO. 1 | Audio System LEXUS Navigation System, LEXUS Parking Assist (Rear View Monitor) and Clock (w/ LEXUS Navigation System |
| 7.5A | STR LOCK | Engine Immobilizer System (w/ Smart Key System) and Steering Lock System |
| 7.5A | TEL | Audio System LEXUS Navigation System, LEXUS Parking Assist (Rear View Monitor) and Clock (w/ LEXUS Navigation System |
| 10A | DOME | Adaptive Front-Lighting System Audio System Automatic Air Conditioning (Front) Charging Clock (w/o LEXUS Navigation System) Combination Meter Cruise Control Dynamic Radar/Laser Cruise Control System Electronic Modulated Air Suspension Electronically Controlled Transmission and A/T Indicator Engine Control Front Fog Light Headlight Illumination Interior Light Key Reminder (w/o Smart Key System) and Seat Belt Warning LEXUS Navigation System, LEXUS Parking Assist (Rear View Monitor) and Clock (w/ LEXUS Navigation System LEXUS Parking Assist (Clearance Sonar) Luggage Compartment Door Opener and Closer Moon Roof Multiplex Communication System (BEAN - Instrument Panel Bus) Multiplex Communication System (BEAN - Steering Column Bus) PPS Pre-Collision Safety System Rear Air Conditioning Smart Key System, Theft Deterrent, Key Reminder, Door Lock Control, Door Closer and Wireless Door Lock Control (w/ Smart Key System) SRS Stop Light Taillight VSC and Tire Pressure Warning System Wiper and Washer |
| 10A | P RR-IG | Vibration Seat |
| 15A | HAZ | Multiplex Communication System (BEAN - Steering Column Bus) Smart Key System, Theft Deterrent, Key Reminder, Door Lock Control, Door Closer and Wireless Door Lock Control (w/ Smart Key System) Turn Signal and Hazard Warning Light |
| 15A | P S/HTR | Climate Control Seat (Front) Seat Heater (Front) |
| 15A | P-CIG | Cigarette Lighter and Power Outlet |
| 20A | RR DOOR LH | Door Lock Control and Door Closer (w/o Smart Key System) Illumination Interior Light Multiplex Communication System (BEAN - Door Bus) Power Window Smart Key System, Theft Deterrent, Key Reminder, Door Lock Control, Door Closer and Wireless Door Lock Control (w/ Smart Key System) Theft Deterrent (w/o Smart Key System) Wireless Door Lock Control (w/o Smart Key System) |
| 20A | RR DOOR RH | Door Lock Control and Door Closer (w/o Smart Key System) Illumination Interior Light Multiplex Communication System (BEAN - Door Bus) Power Window Smart Key System, Theft Deterrent, Key Reminder, Door Lock Control, Door Closer and Wireless Door Lock Control (w/ Smart Key System) Theft Deterrent (w/o Smart Key System) Wireless Door Lock Control (w/o Smart Key System) |
| 25A | D DOOR | Door Lock Control and Door Closer (w/o Smart Key System) Illumination Interior Light Mirror Heater Multiplex Communication System (BEAN - Door Bus) Power Shoulder Belt Anchorage Power Window Remote Control Mirror Smart Key System, Theft Deterrent, Key Reminder, Door Lock Control, Door Closer and Wireless Door Lock Control (w/ Smart Key System) Theft Deterrent (w/o Smart Key System) Wireless Door Lock Control (w/o Smart Key System) |
| 25A | P DOOR | Door Lock Control and Door Closer (w/o Smart Key System) Illumination Interior Light Mirror Heater Multiplex Communication System (BEAN - Door Bus) Power Shoulder Belt Anchorage Power Window Remote Control Mirror Smart Key System, Theft Deterrent, Key Reminder, Door Lock Control, Door Closer and Wireless Door Lock Control (w/ Smart Key System) Theft Deterrent (w/o Smart Key System) Wireless Door Lock Control (w/o Smart Key System) |
DRIVER SIDE JUNCTION BLOCK FUSE IDENTIFICATION LEGEND (2 OF 2)
| Fuse | System | |
|---|---|---|
| 5A | D B/ANC | Multiplex Communication System (BEAN - Steering Column Bus) Power Shoulder Belt Anchorage |
| 5A | STOP | Cruise Control Dynamic Radar/Laser Cruise Control System Electronic Modulated Air Suspension Electronically Controlled Transmission and A/T Indicator Engine Control Multiplex Communication System (BEAN - Steering Column Bus) Power Seat (Rear Passenger's Seat) Shift Lock Stop Light VSC and Tire Pressure Warning System Wiper and Washer |
| 7.5A | ABS-IG | Adaptive Front-Lighting System Dynamic Radar/Laser Cruise Control System Electronic Modulated Air Suspension PPS Pre-Collision Safety System VSC and Tire Pressure Warning System |
| 7.5A | A/C | Automatic Air Conditioning (Front) Rear Air Conditioning |
| 7.5A | AM1 | Multiplex Communication System (BEAN - Instrument Panel Bus) Multiplex Communication System (BEAN - Steering Column Bus) |
| 7.5A | D-ACC | Door Lock Control and Door Closer (w/o Smart Key System) Multiplex Communication System (BEAN - Door Bus) Multiplex Communication System (BEAN Bus) Power Window Remote Control Mirror Shift Lock Smart Key System, Theft Deterrent, Key Reminder, Door Lock Control, Door Closer and Wireless Door Lock Control (w/ Smart Key System) Theft Deterrent (w/o Smart Key System) Wireless Door Lock Control (w/o Smart Key System) |
| 7.5A | GAUGE | Adaptive Front-Lighting System Audio System Automatic Air Conditioning (Front) Charging Combination Meter Cruise Control Dynamic Radar/Laser Cruise Control System Electric Tension Reducer Electronic Modulated Air Suspension Electrically Controlled Transmission and A/T Indicator Engine Control Front Fog Light Headlight Illumination Interior Light Key Reminder (w/o Smart Key System) and Seat Belt Warning LEXUS Navigation System, LEXUS Parking Assist (Rear View Monitor) and Clock (w/ LEXUS Navigation System) LEXUS Parking Assist (Clearance Sonar) Luggage Compartment Door Opener and Closer Moon Roof Multiplex Communication System (BEAN - Instrument Panel Bus) Multiplex Communication System (BEAN - Steering Column Bus) PPS Pre-Collision Safety System Rear Air Conditioning Shift Lock Smart Key System, Theft Deterrent, Key Reminder, Door Lock Control, Door Closer and Wireless Door Lock Control (w/ Smart Key System) SRS Stop Light Taillight VSC and Tire Pressure Warning System Wiper and Washer |
| 7.5A | MPX-IG | Adaptive Front-Lighting System Automatic Air Conditioning (Front) Automatic Light Control Door Lock Control and Door Closer (w/o Smart Key System) Front Fog Light Headlight Illumination Light Auto Turn Off System Mirror Heater Multiplex Communication System (BEAN - Door Bus) Multiplex Communication System (BEAN - Instrument Panel Bus) Multiplex Communication System (BEAN - Steering Column Bus) Multiplex Communication System (BEAN Bus) Power Seat (Driver's Seat) Power Shoulder Belt Anchorage Power Tilt and Power Telescopic Power Window Rear Air Conditioning Remote Control Mirror Smart Key System, Theft Deterrent, Key Reminder, Door Lock Control, Door Closer and Wireless Door Lock Control (w/ Smart Key System) Taillight Theft Deterrent (w/o Smart Key System) Turn Signal and Hazard Warning Light Wiper and Washer Wireless Door Lock Control (w/o Smart Key System) |
| 7.5A | OBD | Cruise Control Dynamic Radar/Laser Cruise Control System Electronic Modulated Air Suspension Electronically Controlled Transmission and A/T Indicator Engine Control Pre-Collision Safety System VSC and Tire Pressure Warning System |
| 7.5A | PANEL | Clock (w/o LEXUS Navigation System) Illumination Multiplex Communication System (BEAN - Steering Column Bus) |
| 7.5A | SECURITY | Door Lock Control and Door Closer (w/o Smart Key System) Garage Door Opener Horn Interior Light Multiplex Communication System (BEAN - Door Bus) Multiplex Communication System (BEAN - Instrument Panel Bus) Multiplex Communication System (BEAN - Steering Column Bus) Power Window Smart Key System, Theft Deterrent, Key Reminder, Door Lock Control, Door Closer and Wireless Door Lock Control (w/ Smart Key System) Theft Deterrent (w/o Smart Key System) Wireless Door Lock Control (w/o Smart Key System) |
| 10A | D RR-IG | Vibration Seat |
| 15A | D S/HTR | Climate Control Seat (Front) Seat Heater (Front) |
| 15A | D-CIG | Cigarette Lighter and Power Outlet |
| 15A | PWR OUTLET | Cigarette Lighter and Power Outlet |
| 20A | AIRBUS | Electronic Modulated Air Suspension |
| 20A | TI&TE | Power Tilt and Power Telescopic |
| 30A | D P/SEAT | Power Seat (Driver's Seat) |

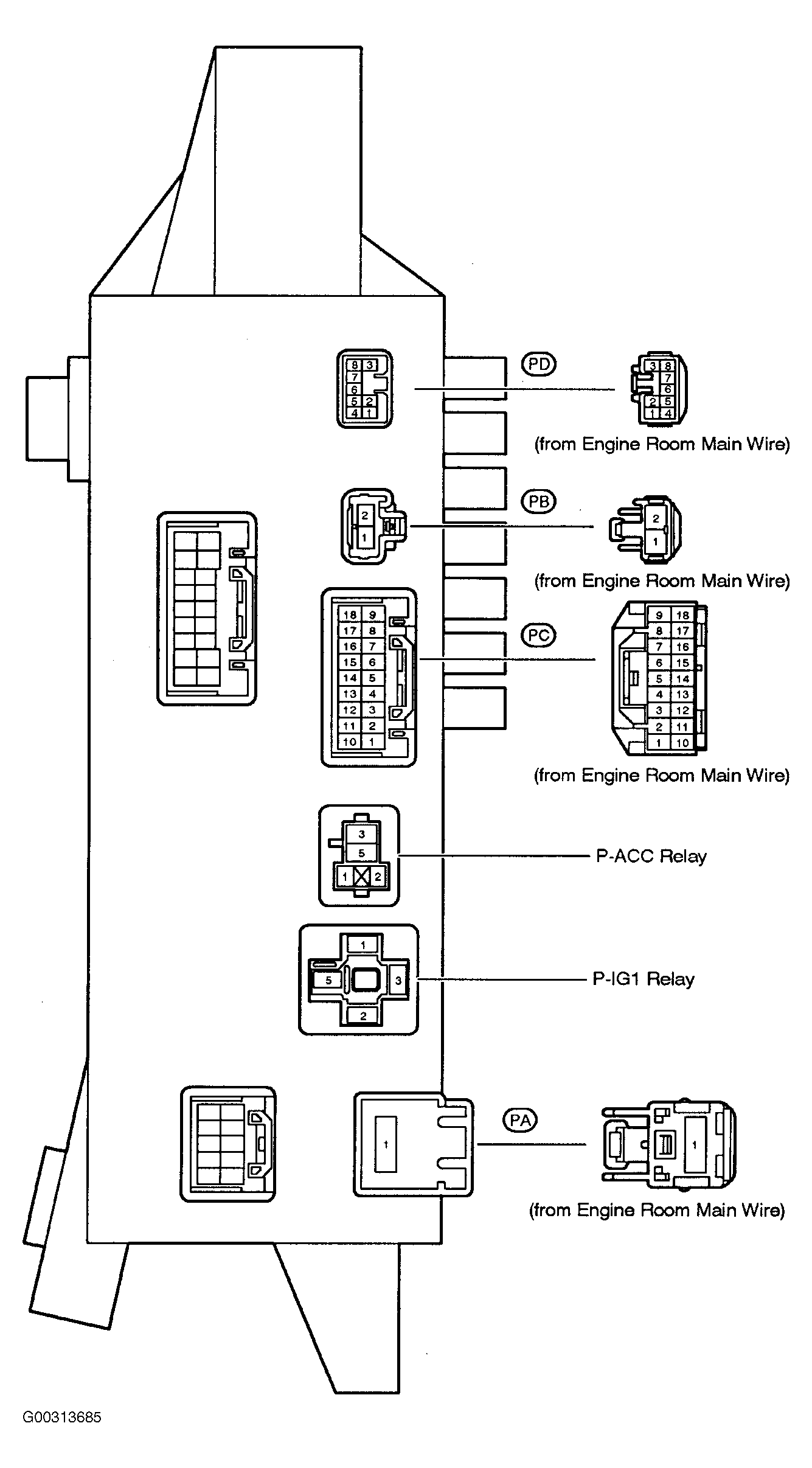

PASSENGER SIDE JUNCTION BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| P-ACC Relay |
| P-IG1 Relay |
