Combination Meter Inner Circuit

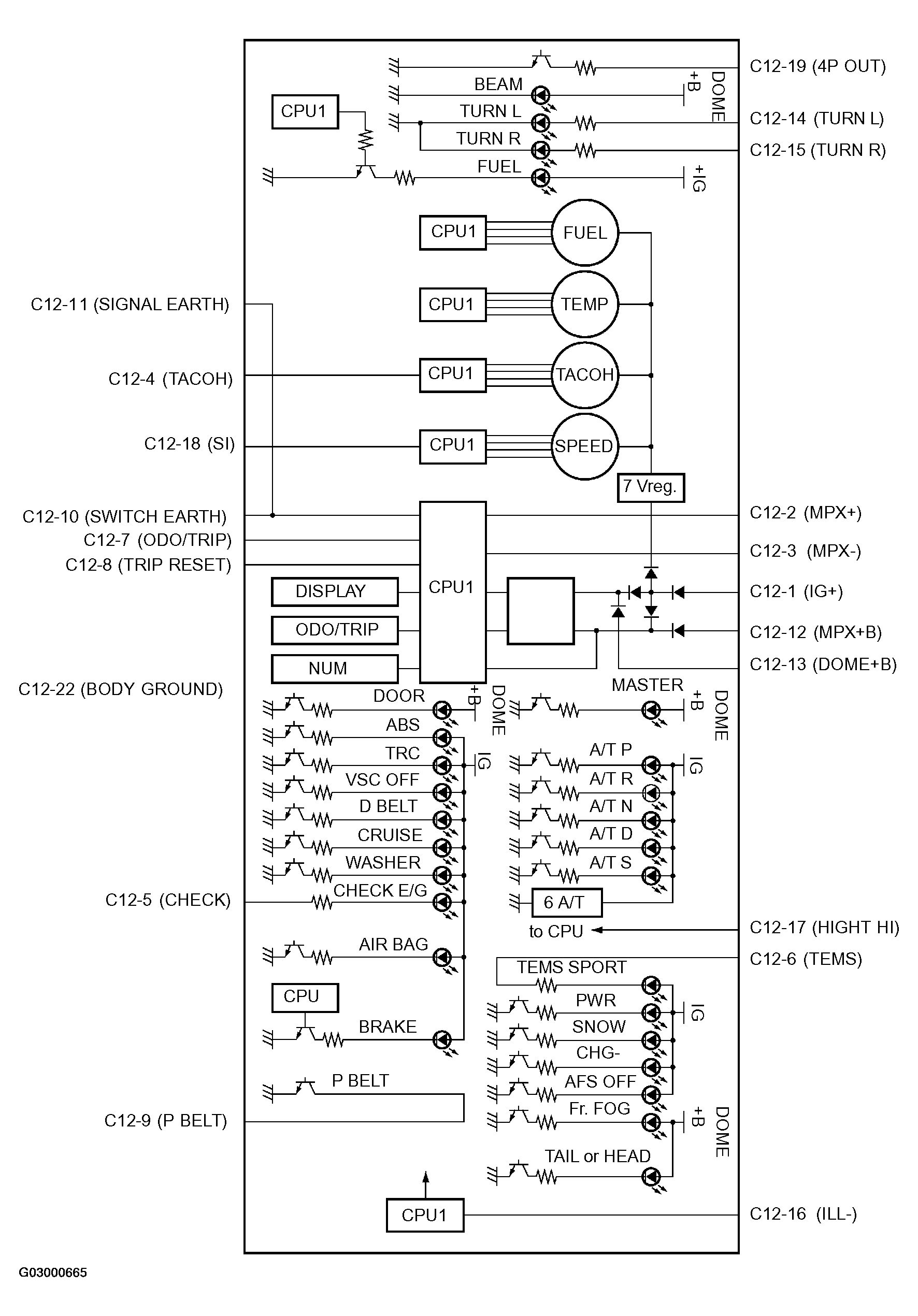

Fig 1: Combination Meter Inner Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

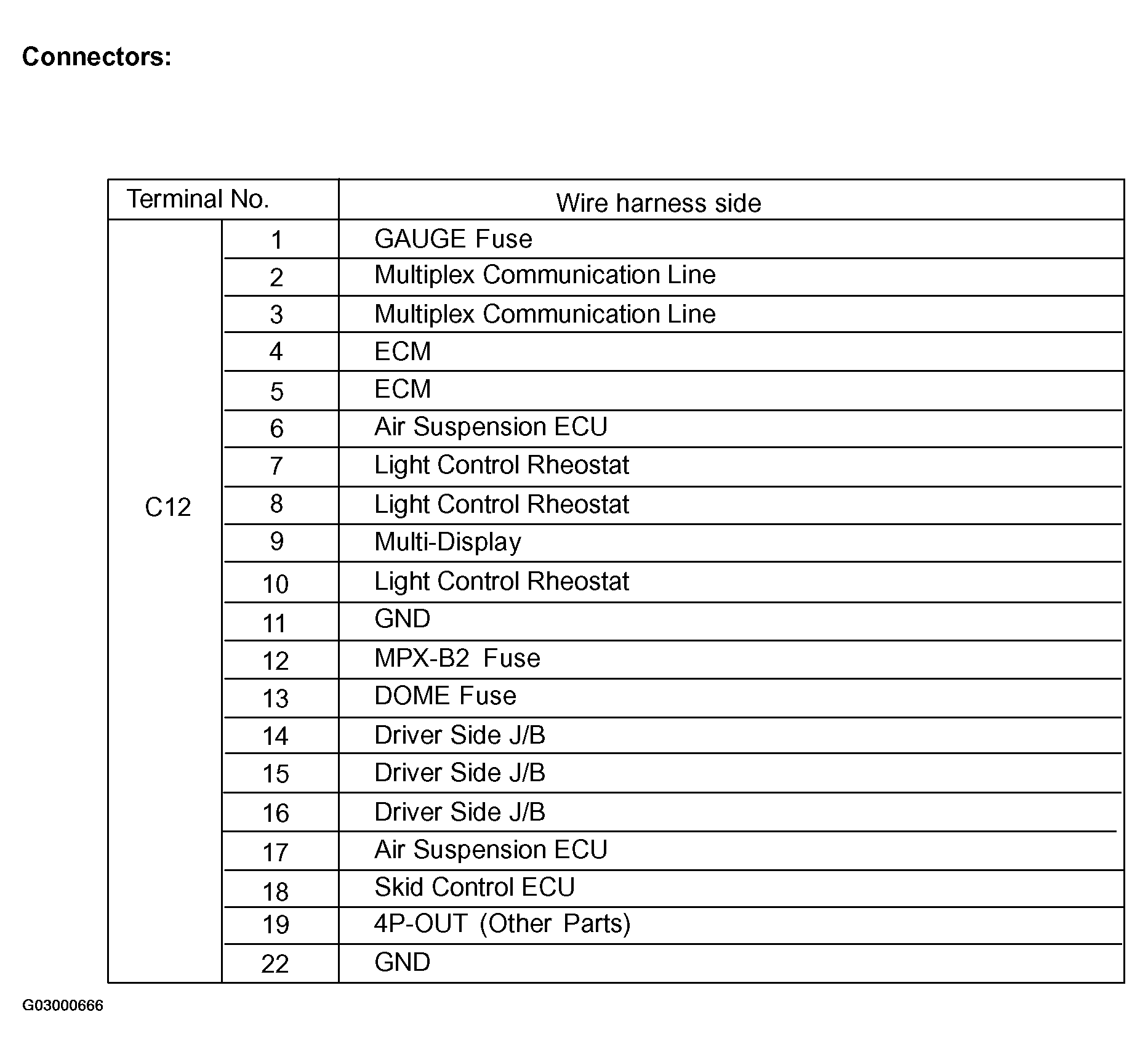

Fig 2: Combination Meter Connector Terminals Reference Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
