Engine Exhaust Assembly: Components

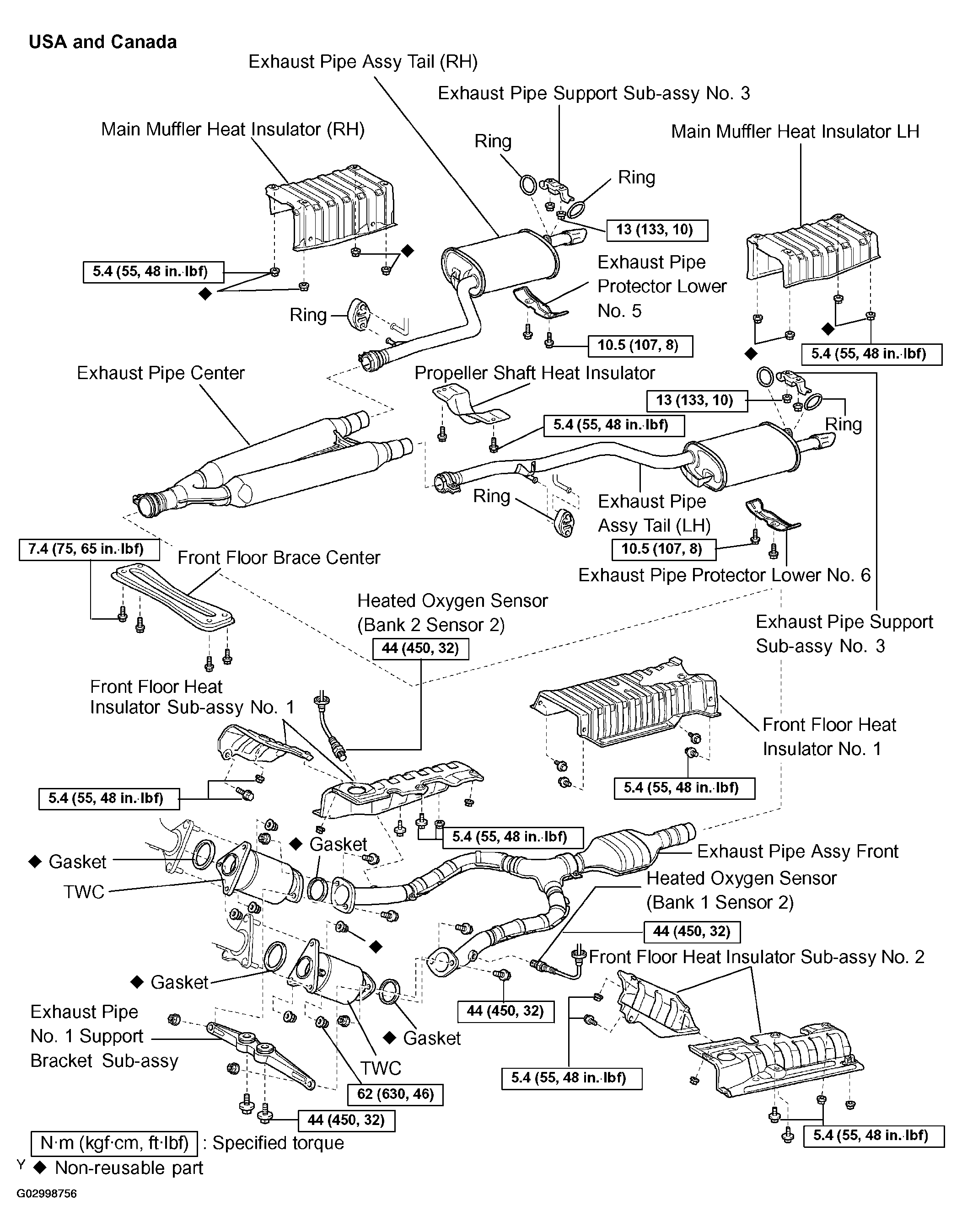

Fig 1: Exploded View Of Exhaust Pipe Assy Components And Replacements (USA And Canada)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

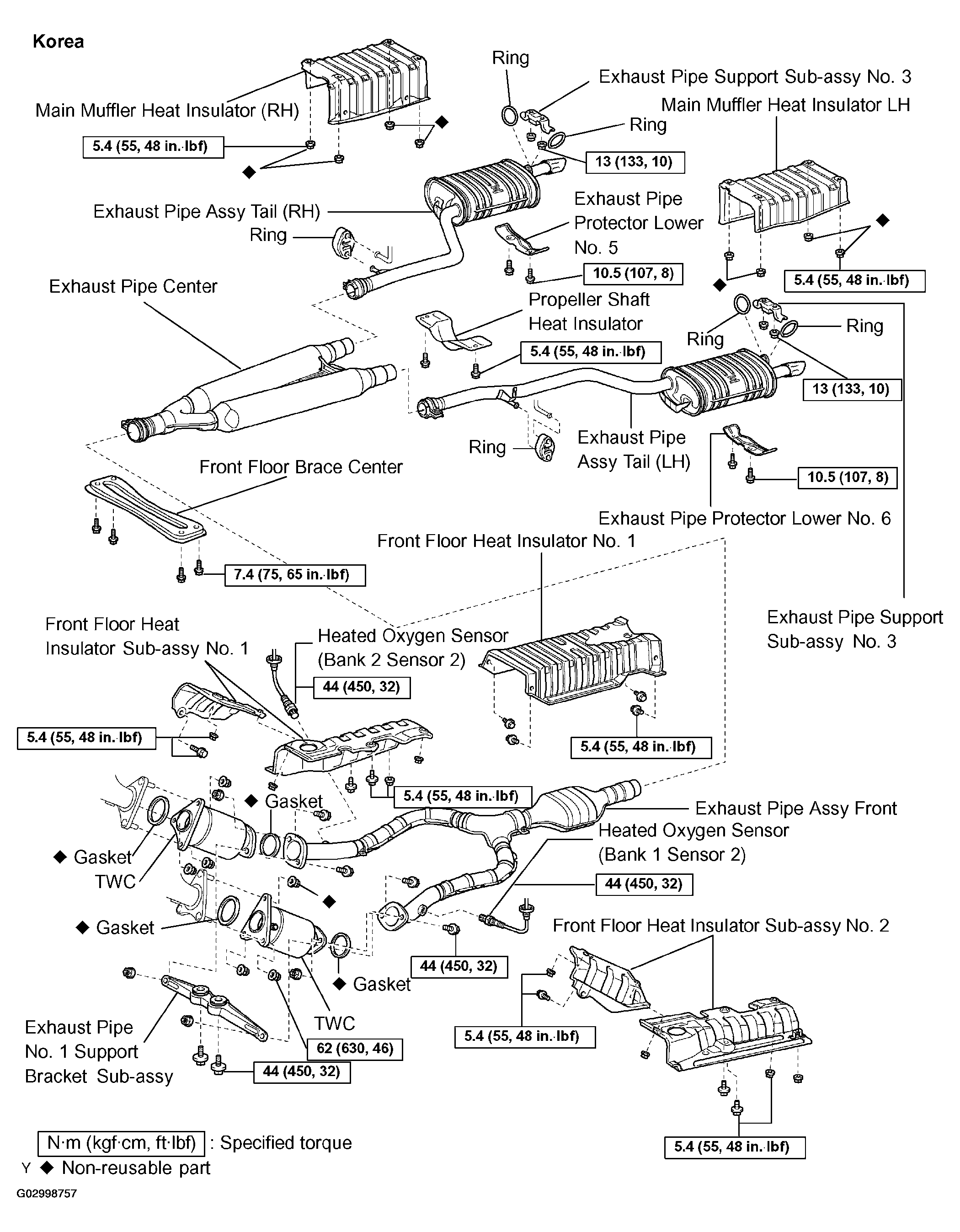

Fig 2: Exploded View Of Exhaust Pipe Assy Components And Replacements (Korea)
