Ignition Coil: Components

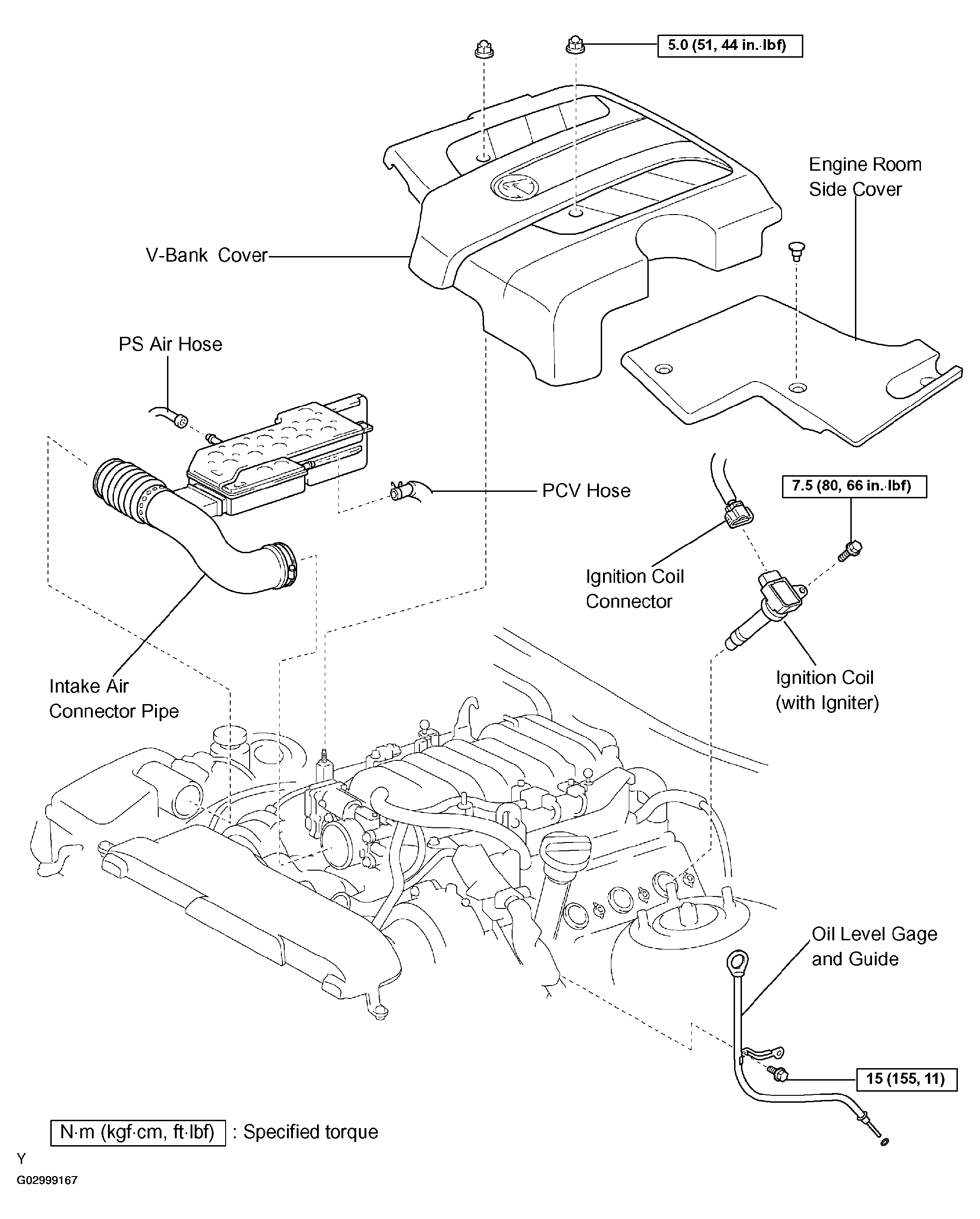

Fig 1: Identifying Ignition Coil Components And Replacements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
