Knock Sensor: Components

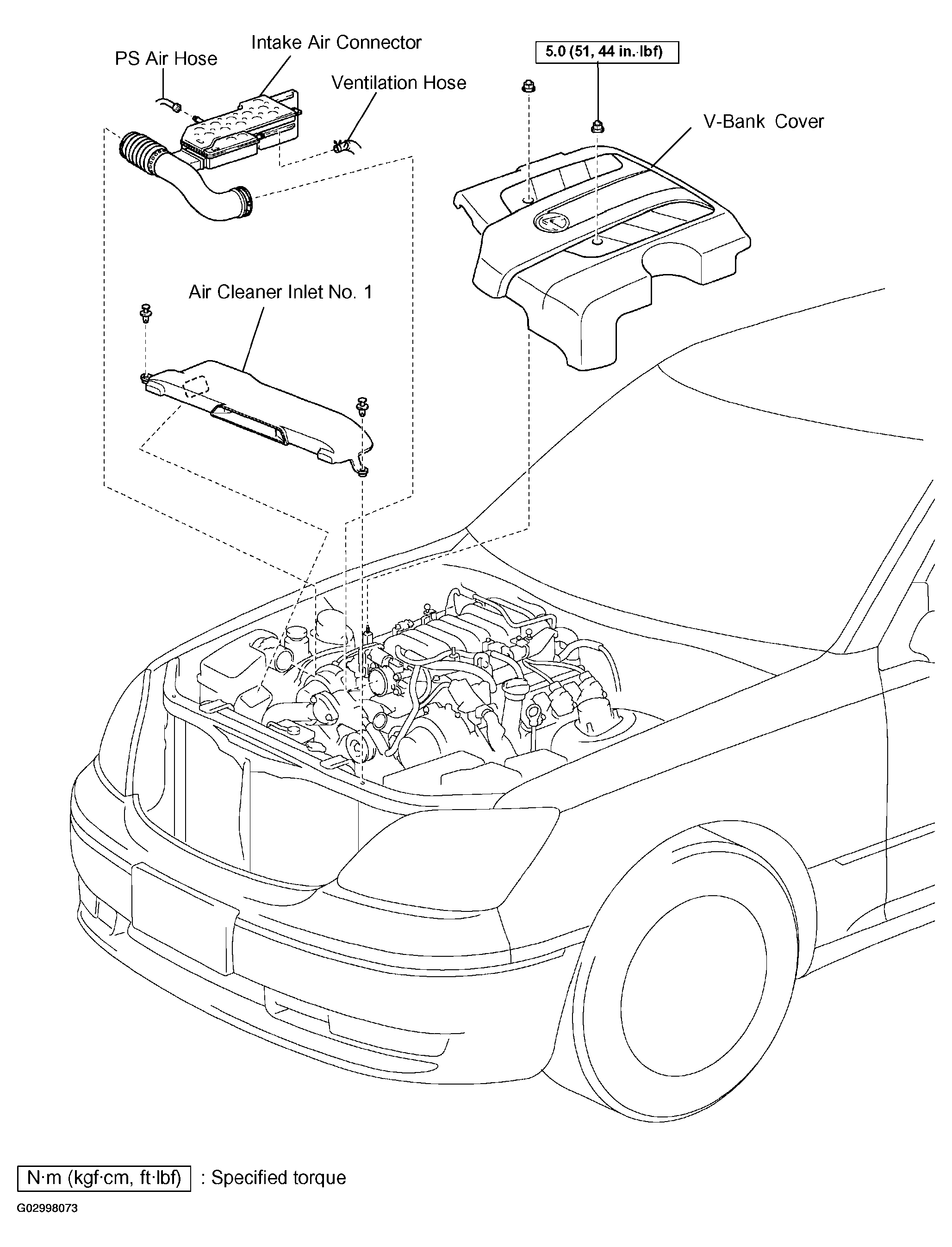

Fig 1: Exploded View Of Knock Sensor - Engine Control System Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

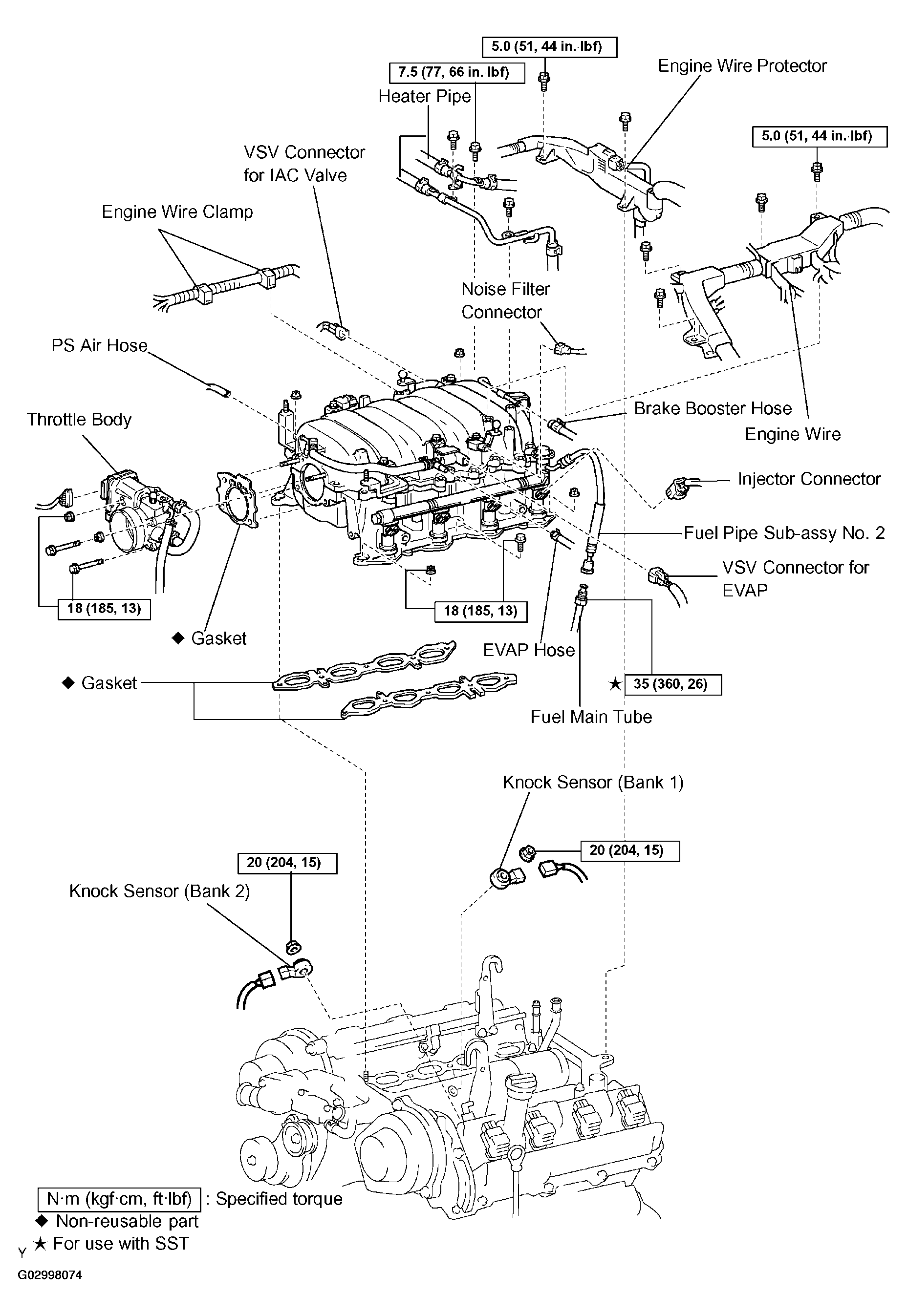

Fig 2: Exploded View Of Knock Sensor - Engine Control System Components (2 Of 2)
