Throttle Body ASSY: Components

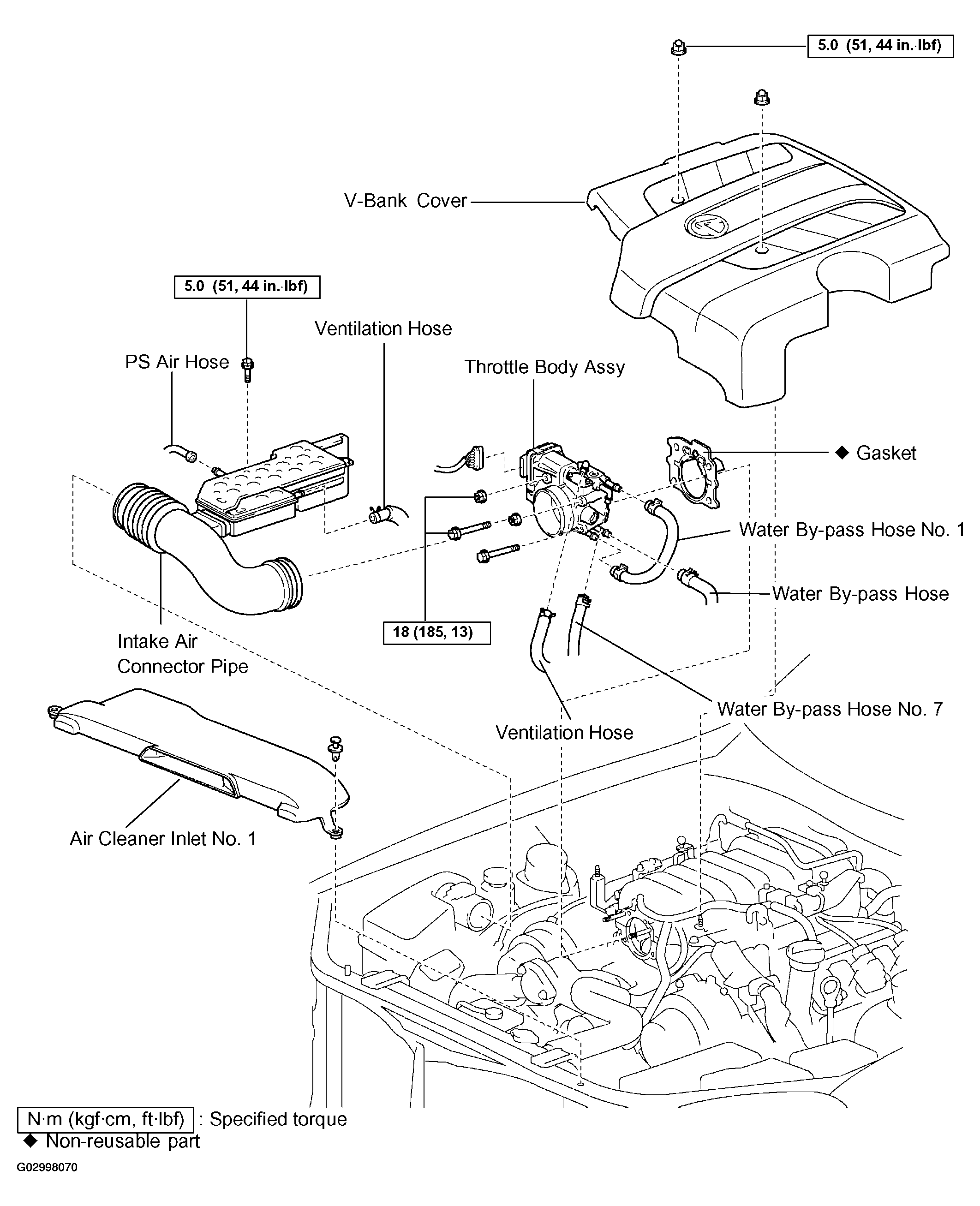

Fig 1: Identifying Throttle Body Assy Components

G02998070

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
