Lexus
›
2005
›
LS 430
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
Pre-Collision Safety System - Diagnostics
›
System Diagram
System Diagram

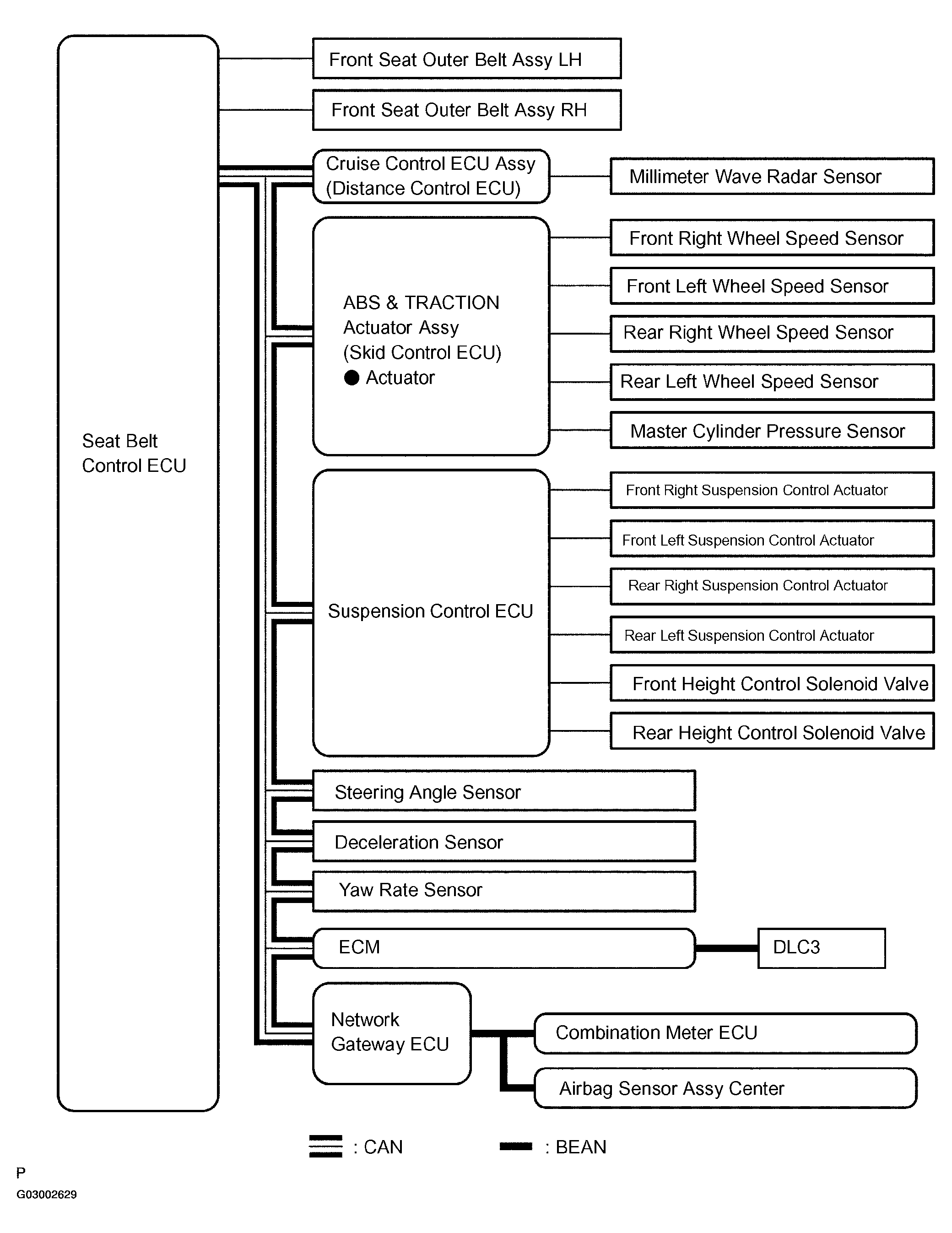

Fig 1: Pre-Collision Safety System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

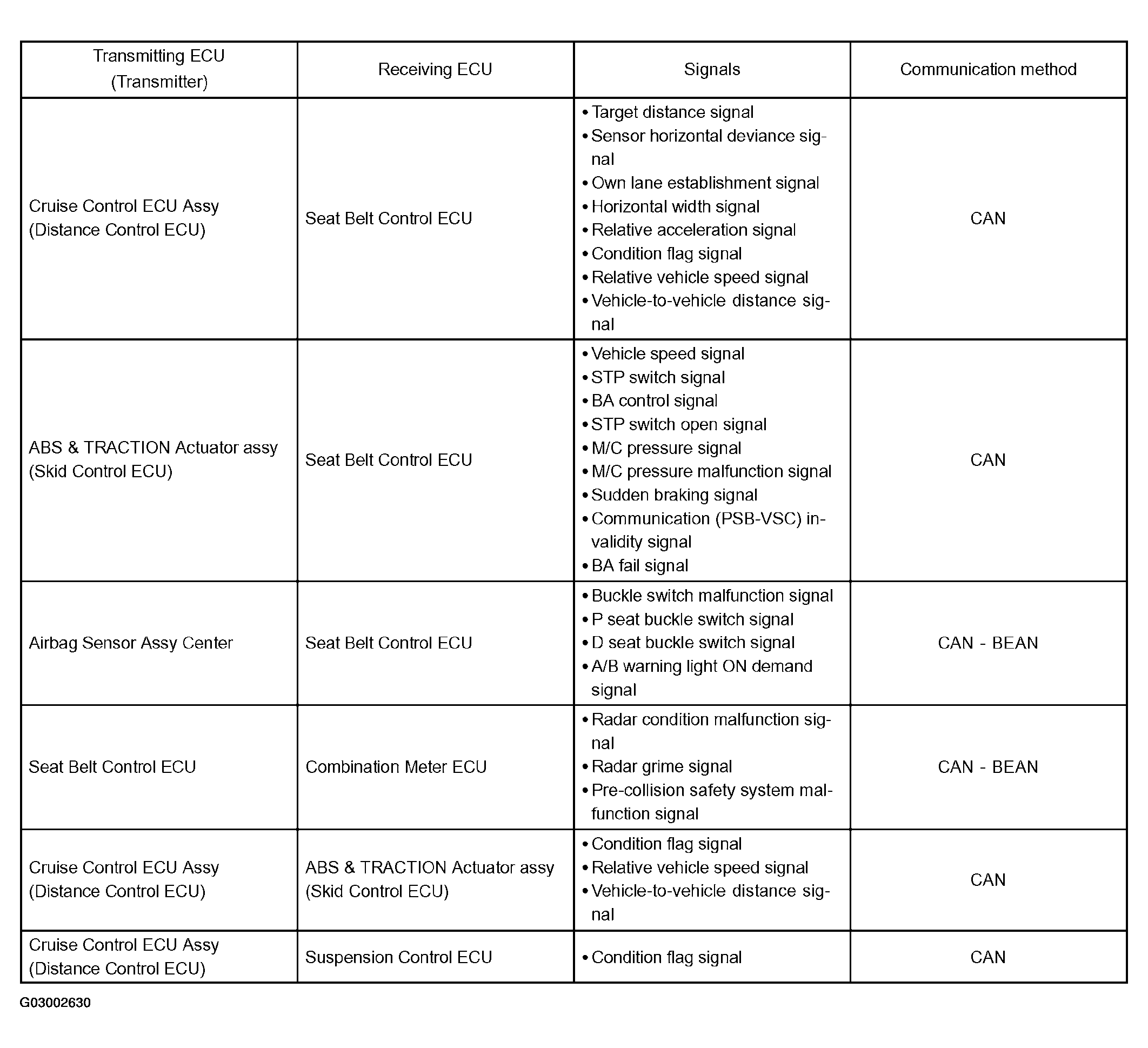

Fig 2: Pre-Collision Safety System Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
