Seat Belt Warning System - Diagnostics
›
Buckle Switch Circuit
›
Wiring Diagram
Buckle Switch Circuit: Wiring Diagram

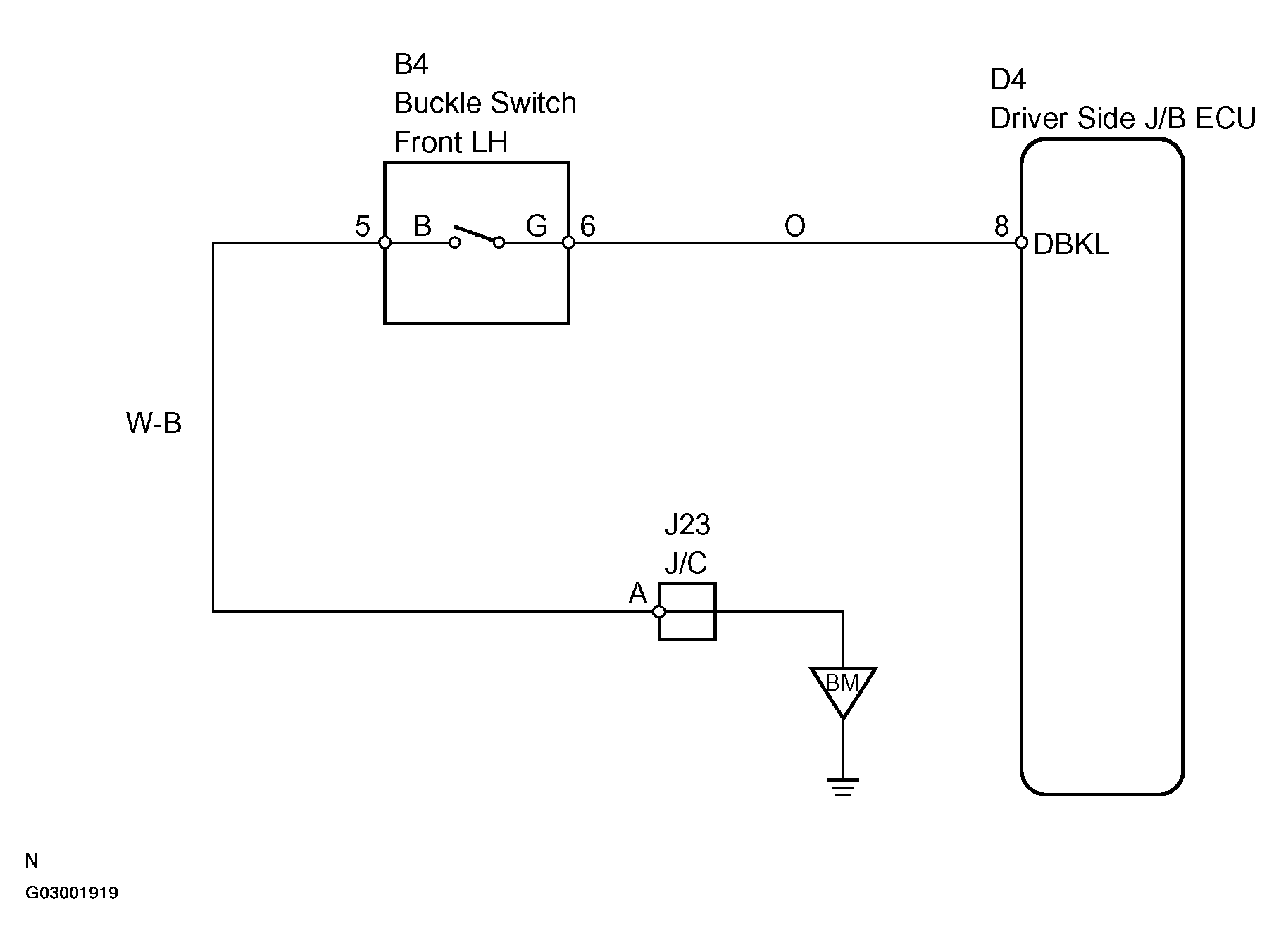

Fig 1: Buckle Switch Circuit - Wiring Diagram
