System Diagram

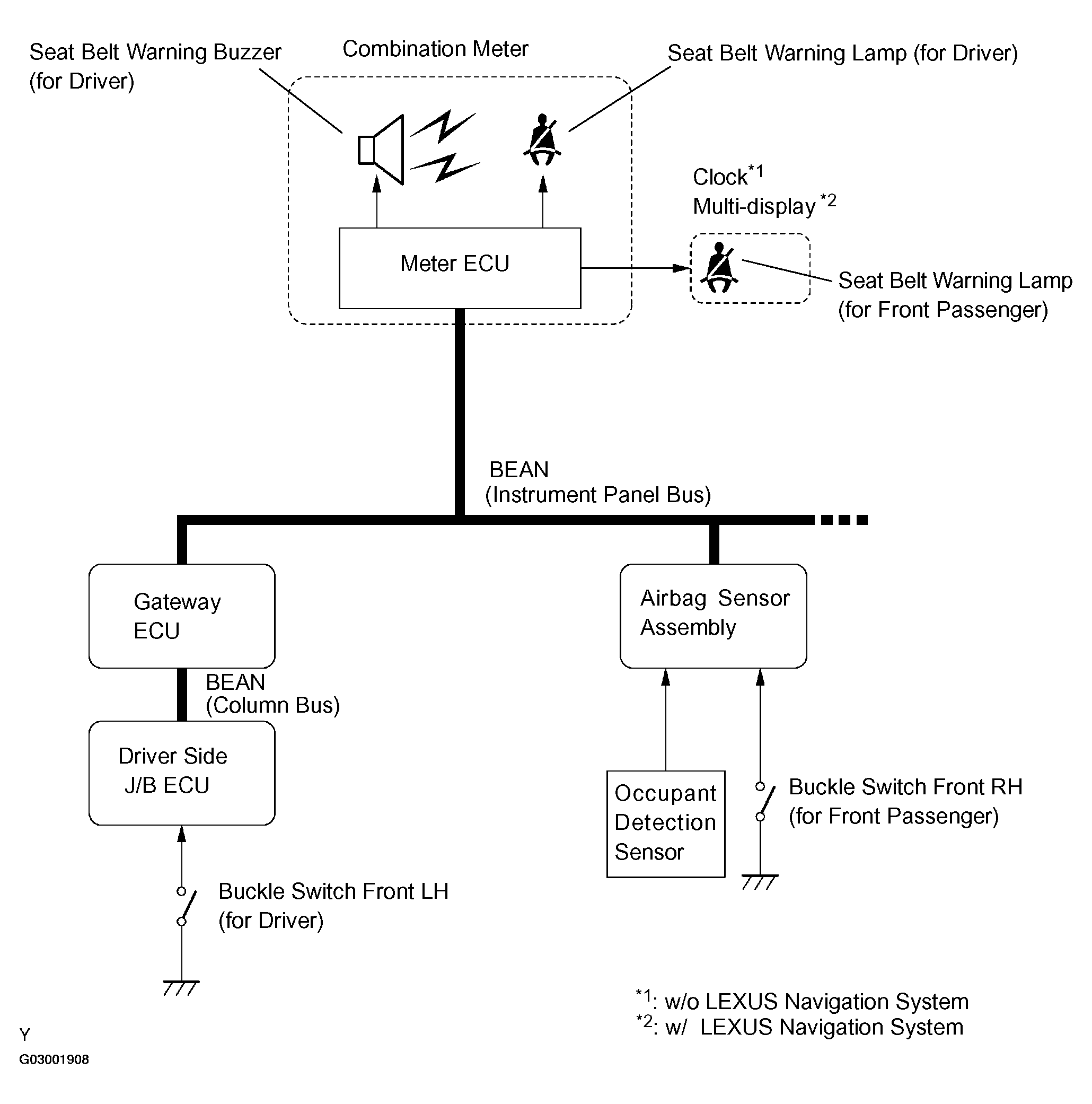

Fig 1: Identifying Seat Belt Warning System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION

Sender	Receiver	Signal	Line
Driver Side J/B ECU	Meter ECU	Driver seat belt buckle signal	BEAN
Airbag Sensor Assembly	Meter ECU	Passenger seat belt buckle signal	BEAN
Airbag Sensor Assembly	Meter ECU	Passenger occupant detection signal	BEAN
