Location
Seat Belt Warning System: Location

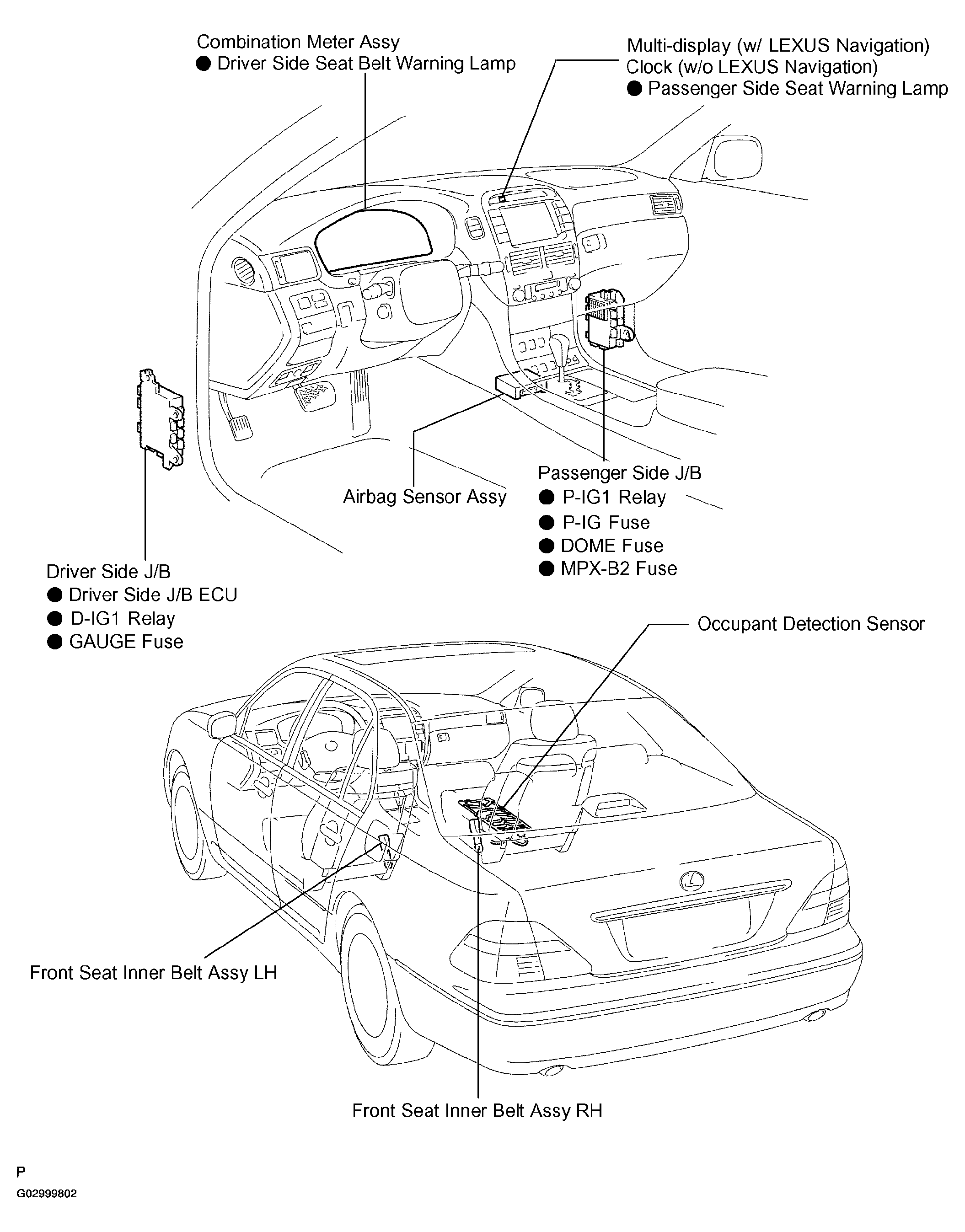

Fig 1: Identifying Seat Belt Warning System Component Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
