Vane Pump ASSY: Components

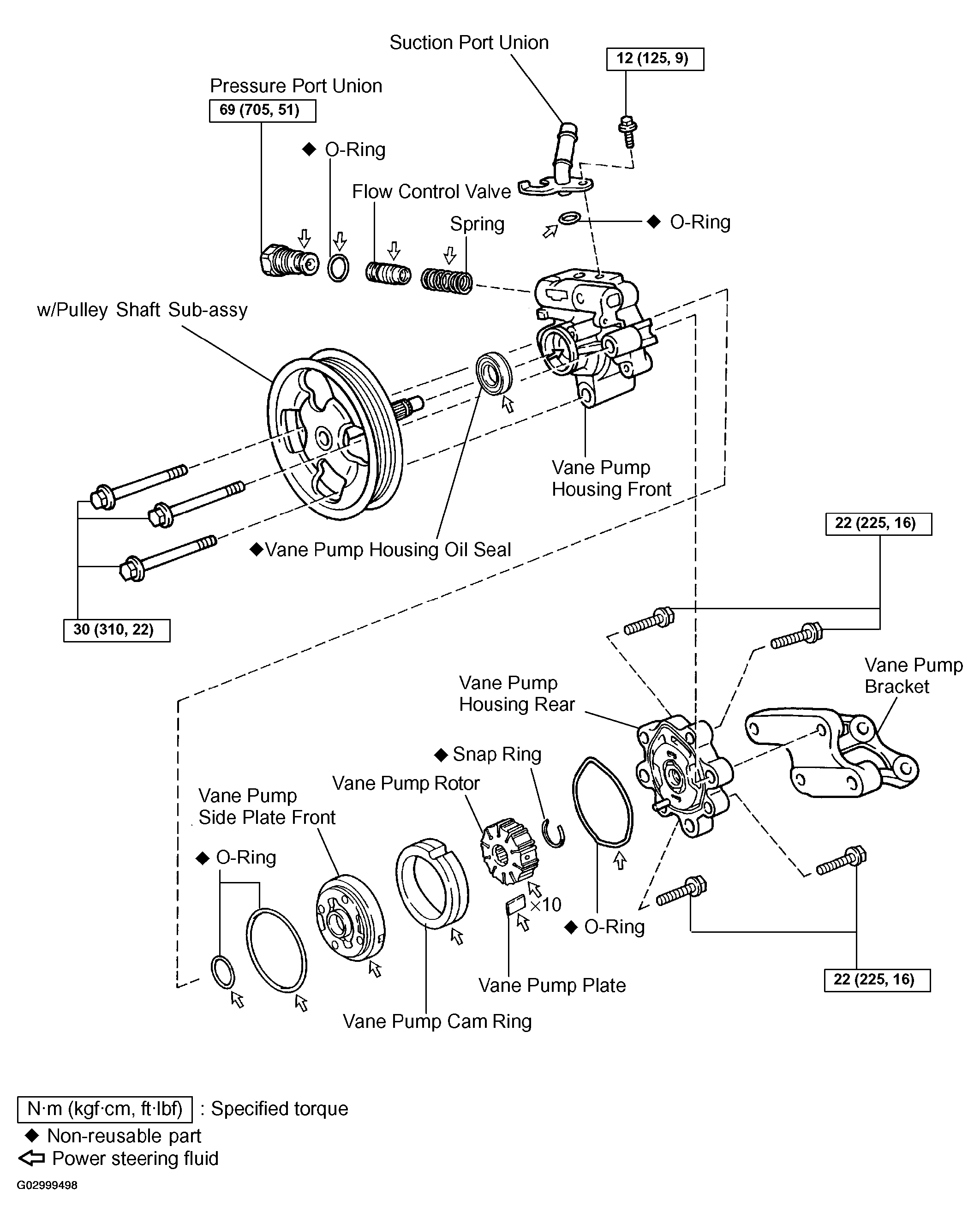

Fig 1: Exploded View Of Vane Pump Assy Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
